Siemens B11500S01 - Molded Case Circuit Breaker 15A 1P (BL Series)
Siemens B11500S01 - Molded Case Circuit Breaker 15A 1P (BL Series)
Siemens B11500S01 - Molded Case Circuit Breaker 15A 1P (BL Series)
Siemens B11500S01 - Molded Case Circuit Breaker 15A 1P (BL Series)
Siemens B11500S01 - Molded Case Circuit Breaker 15A 1P (BL Series)
Siemens B11500S01 - Molded Case Circuit Breaker 15A 1P (BL Series)
Siemens B11500S01 - Molded Case Circuit Breaker 15A 1P (BL Series)
Siemens B11500S01 - Molded Case Circuit Breaker 15A 1P (BL Series)

Siemens B11500S01 - Molded Case Circuit Breaker 15A 1P (BL Series)

Siemens
Price
Save $395.43
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

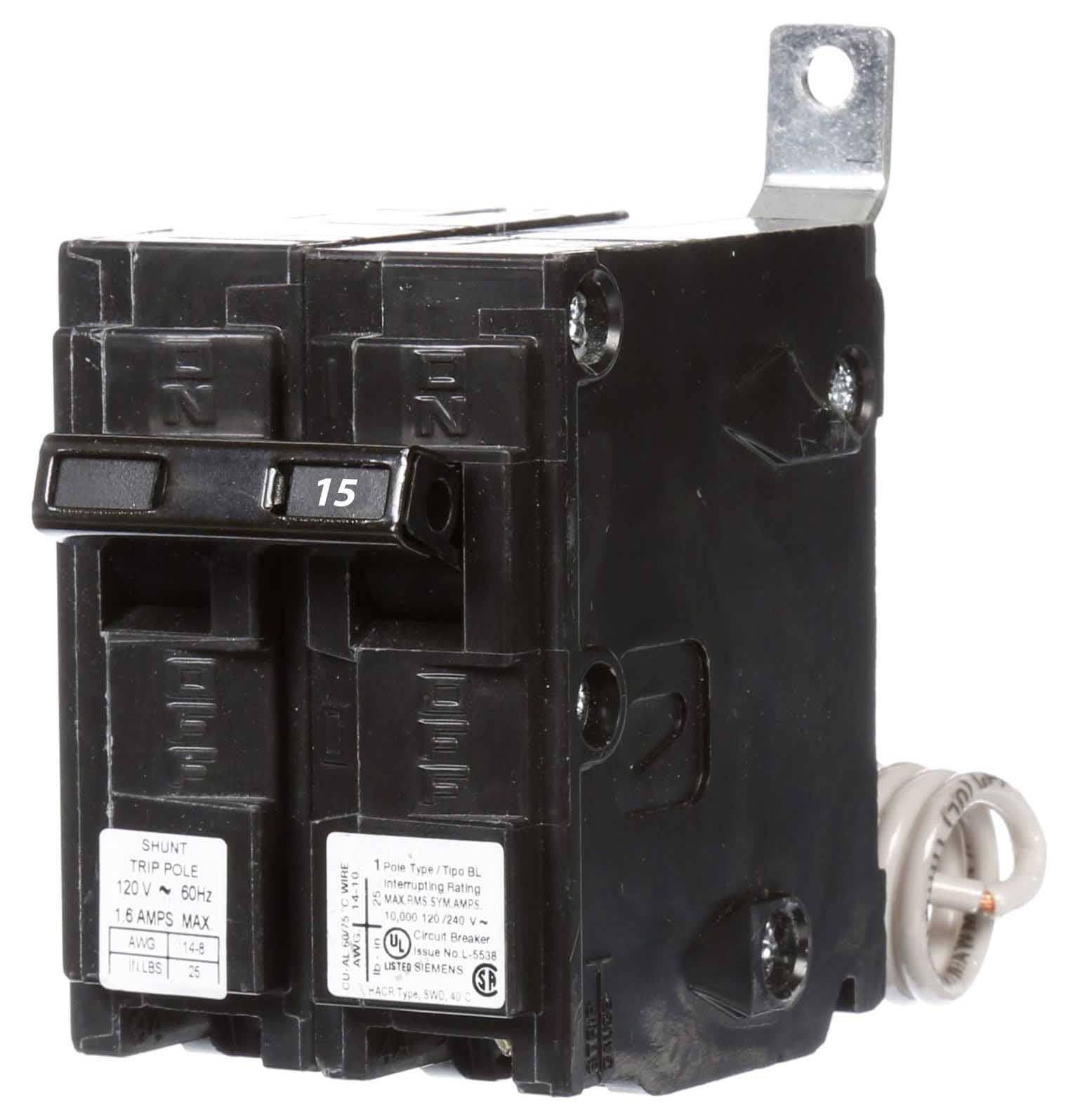

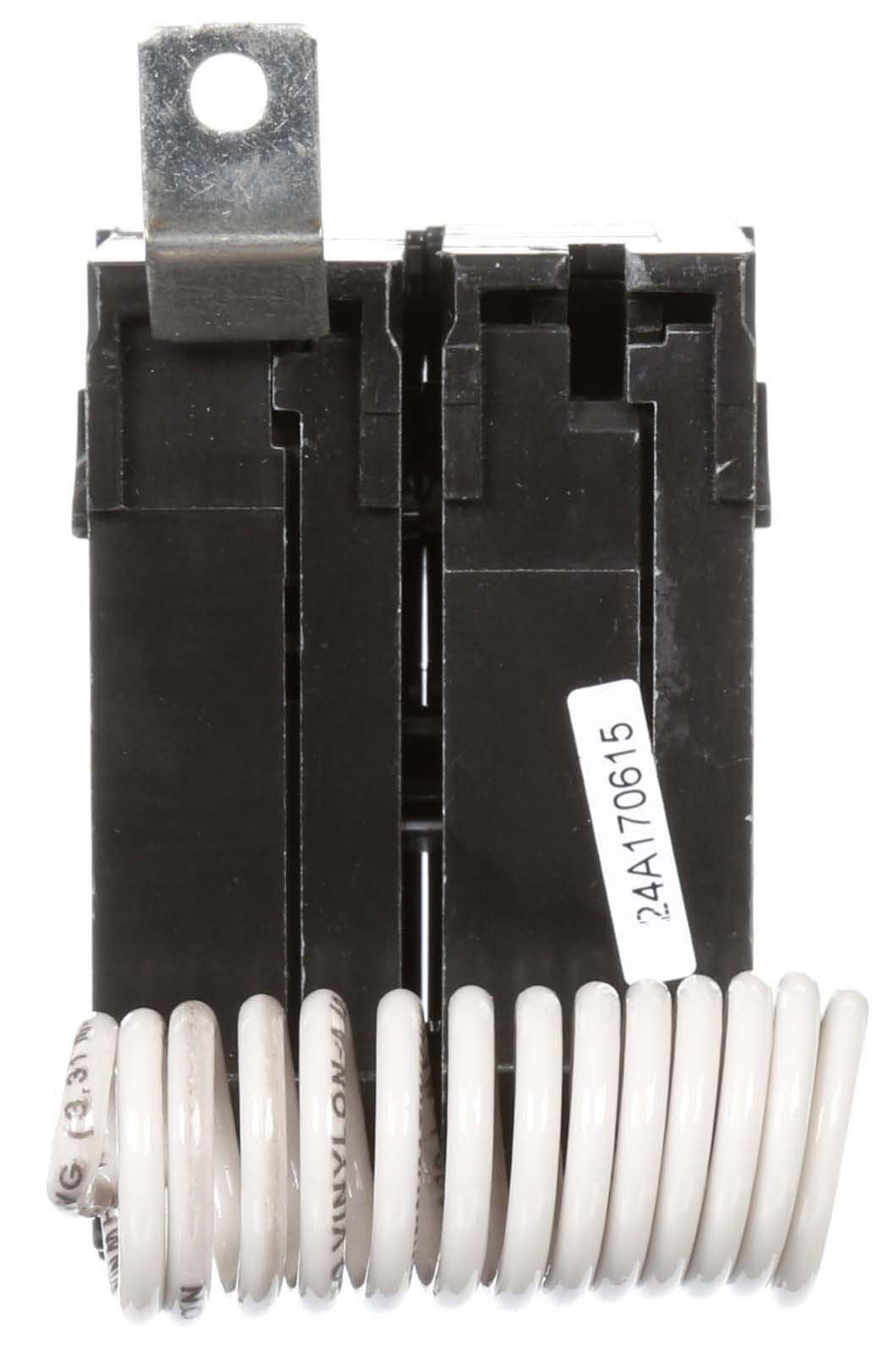

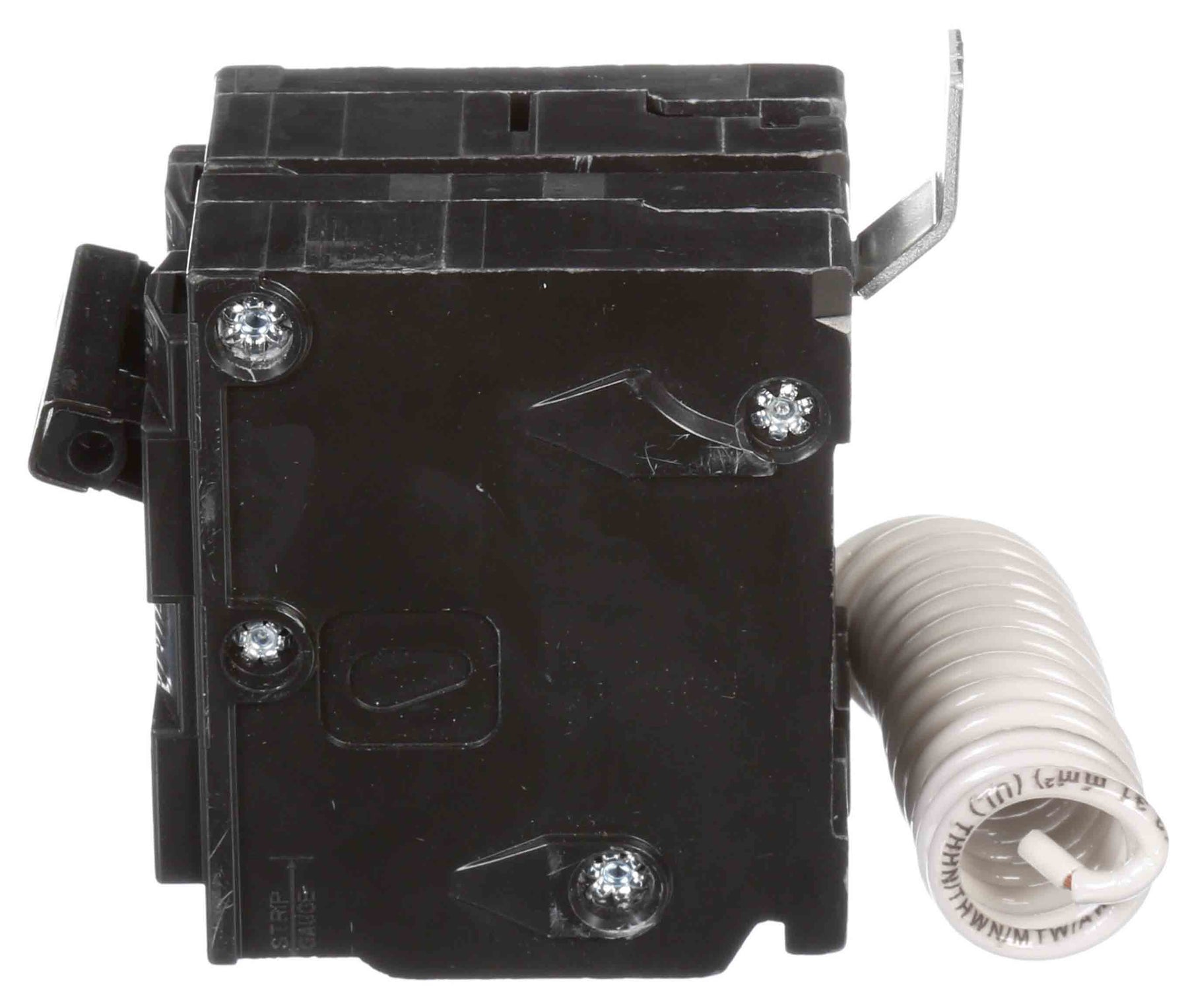

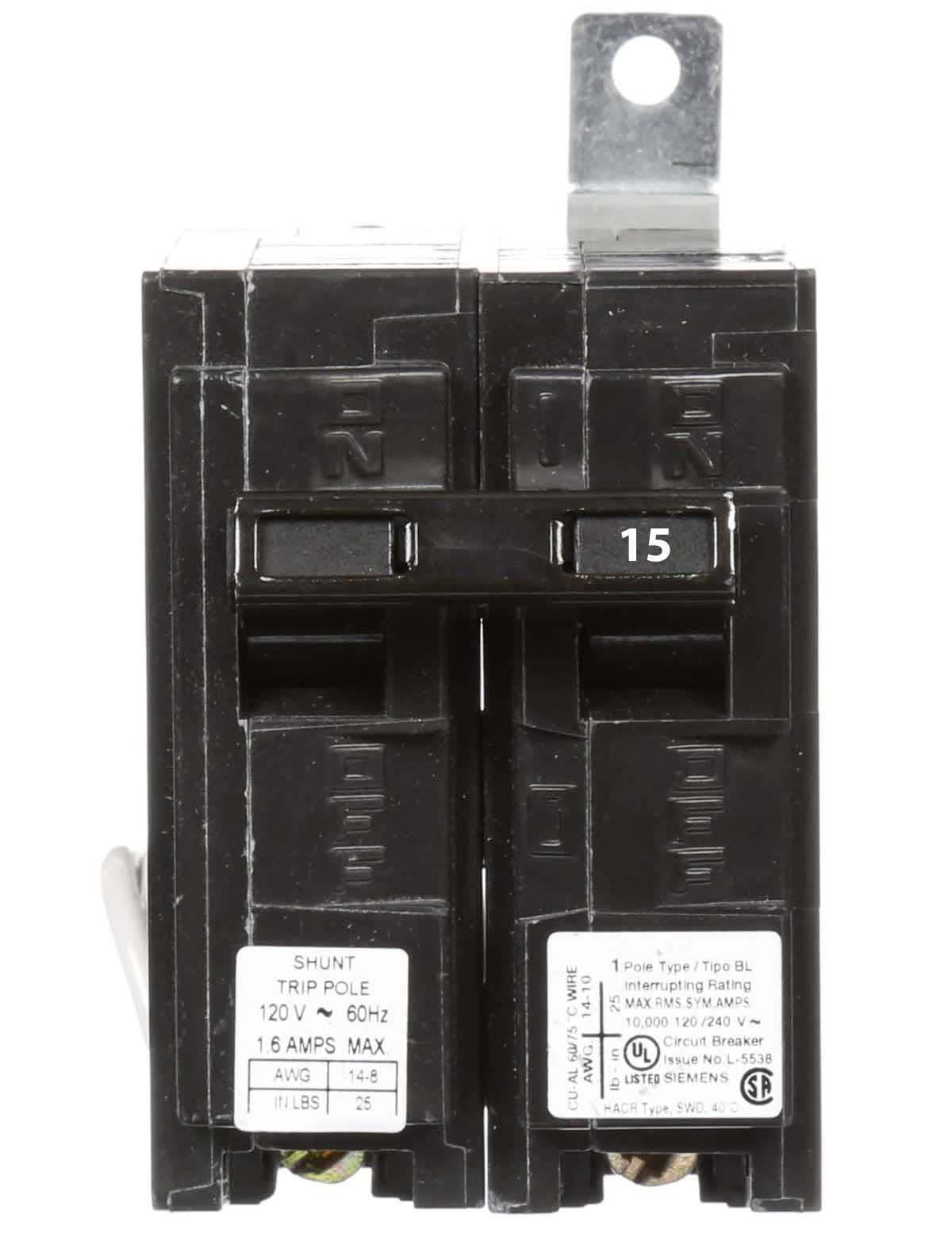

Siemens B11500S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 15A current rating and a 120V voltage rating, housed within a compact, bolt-on design measuring 2.571" x 2.00" x 2.89" and weighing 0.617 lb. This shunt trip breaker is constructed with thermal-magnetic protection for long-time and instantaneous (LI) trip functions and is certified to UL, CSA, HACR, and NOM standards. It is engineered for integration into Siemens P1 panelboards, offering a 10kA interrupting capacity at 240V for robust branch circuit protection in single-phase applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Shunt Trip, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Dimensions: 2.571" H x 2.00" W x 2.89" D
  • Weight: 0.617 lb
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Branch circuit protection in Siemens P1 Panelboards for commercial/industrial systems
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on Connection
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 125A/BL
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Shunt Trip
  • Terminal Connection: Lug
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268227
  • GTIN: 00783643268227
