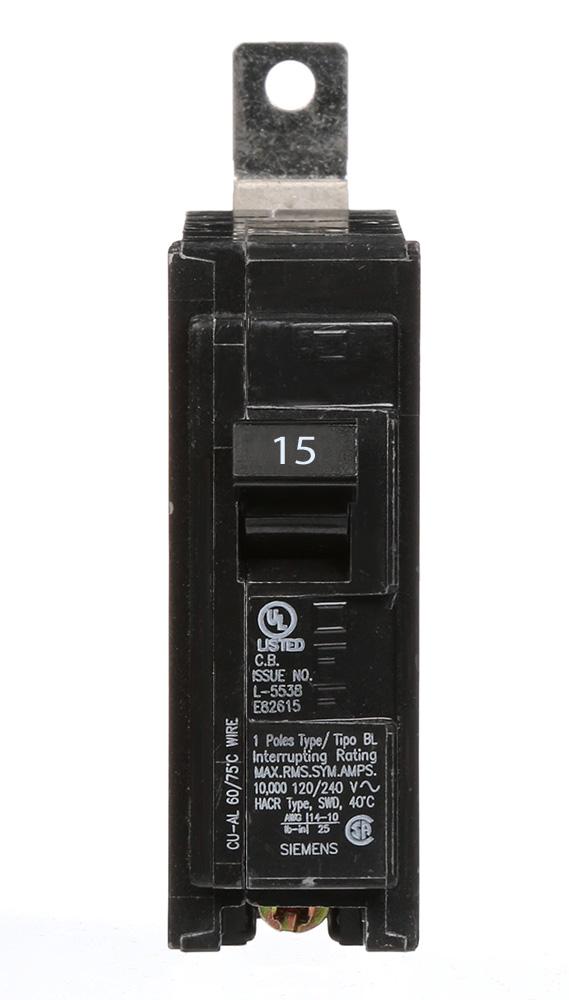

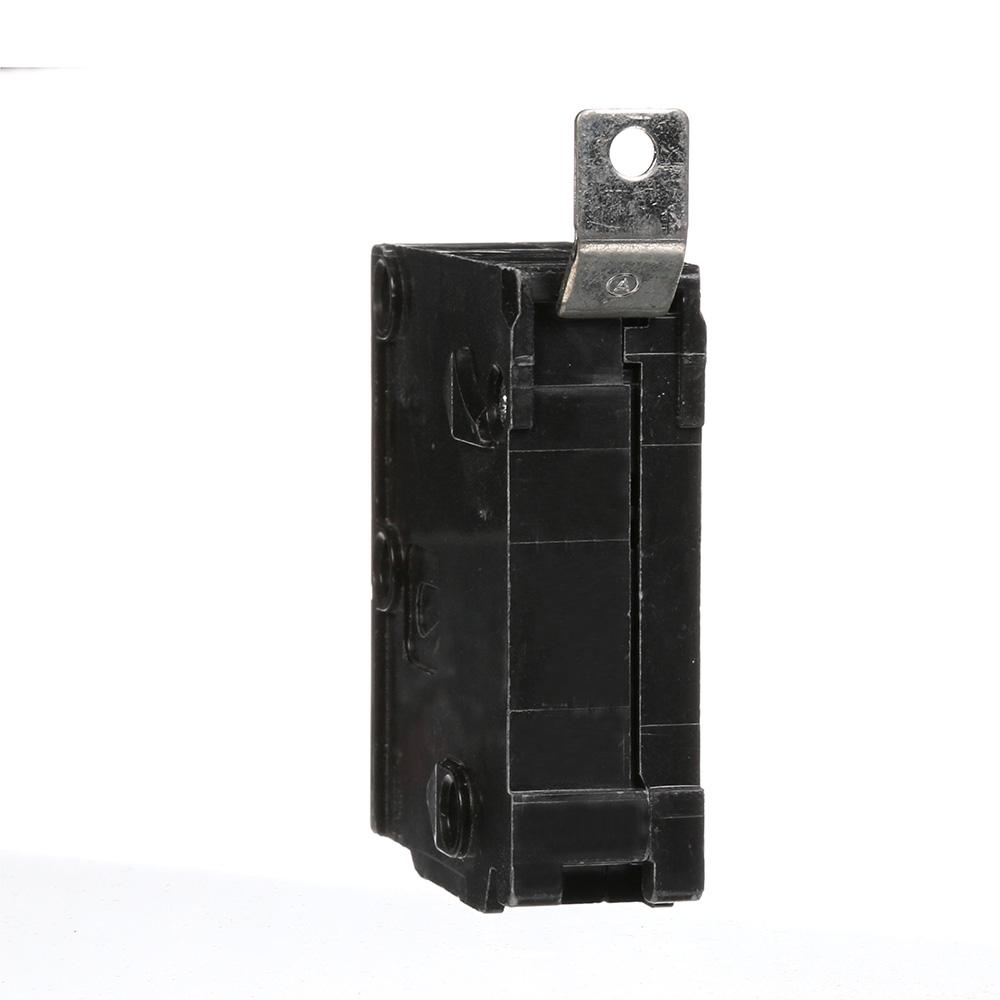

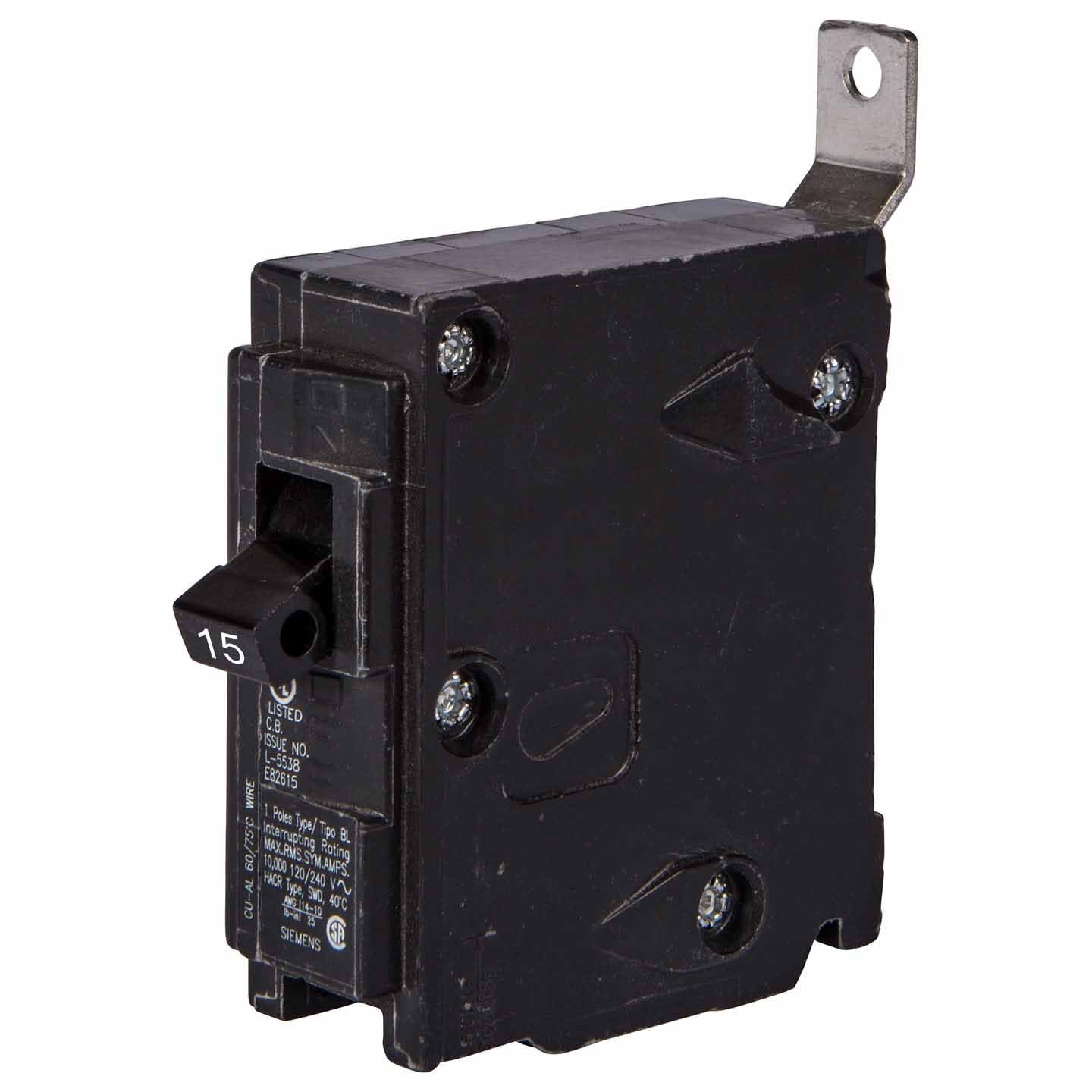

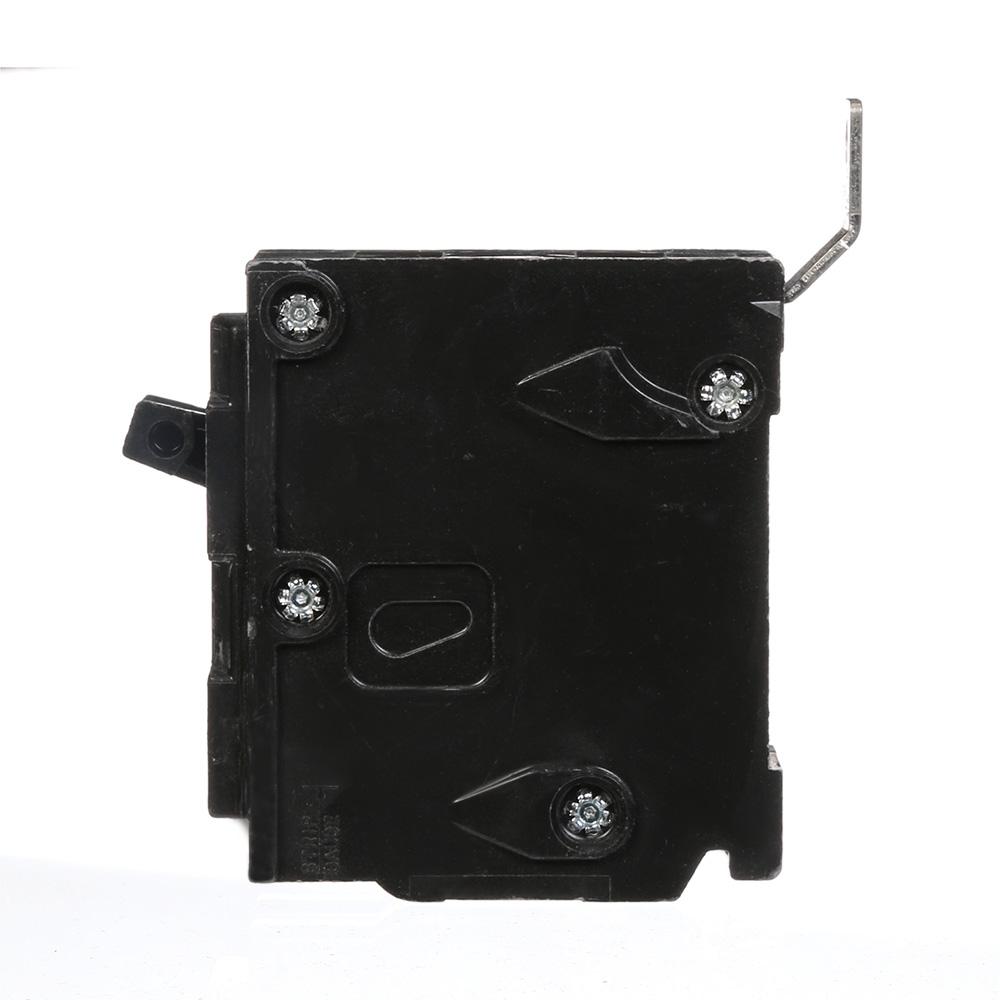

Siemens B115 - Molded Case Circuit Breaker 15A 1-Pole

Price
Regular price $10.67
Regular price $97.50 Sale price $10.67
Save $86.83
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens B115 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact, bolt-on design measuring 2.571 x 1.00 x 2.89 inches and weighing 0.309 lb. The breaker is constructed with a thermal-magnetic trip unit for LI (Long-time and Instantaneous) protection and is certified to UL, CSA, HACR, and NOM standards, ensuring compliance for safety and performance. Its 10kA interrupting rating at 240V and compatibility with Siemens P1 panelboards make it suitable for protecting branch circuits in a wide range of single-phase applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 2.571 x 1.00 x 2.89 inch
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Branch circuit protection in industrial/commercial panels
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time & Instantaneous)
  • Frame Size: 125A/BL
  • Breaker Type: Standard
  • Connection: Bolt-On
  • Terminal Connection: Lug
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Weight: 0.309 lb
  • Family: B Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263413
  • GTIN: 00783643263413
