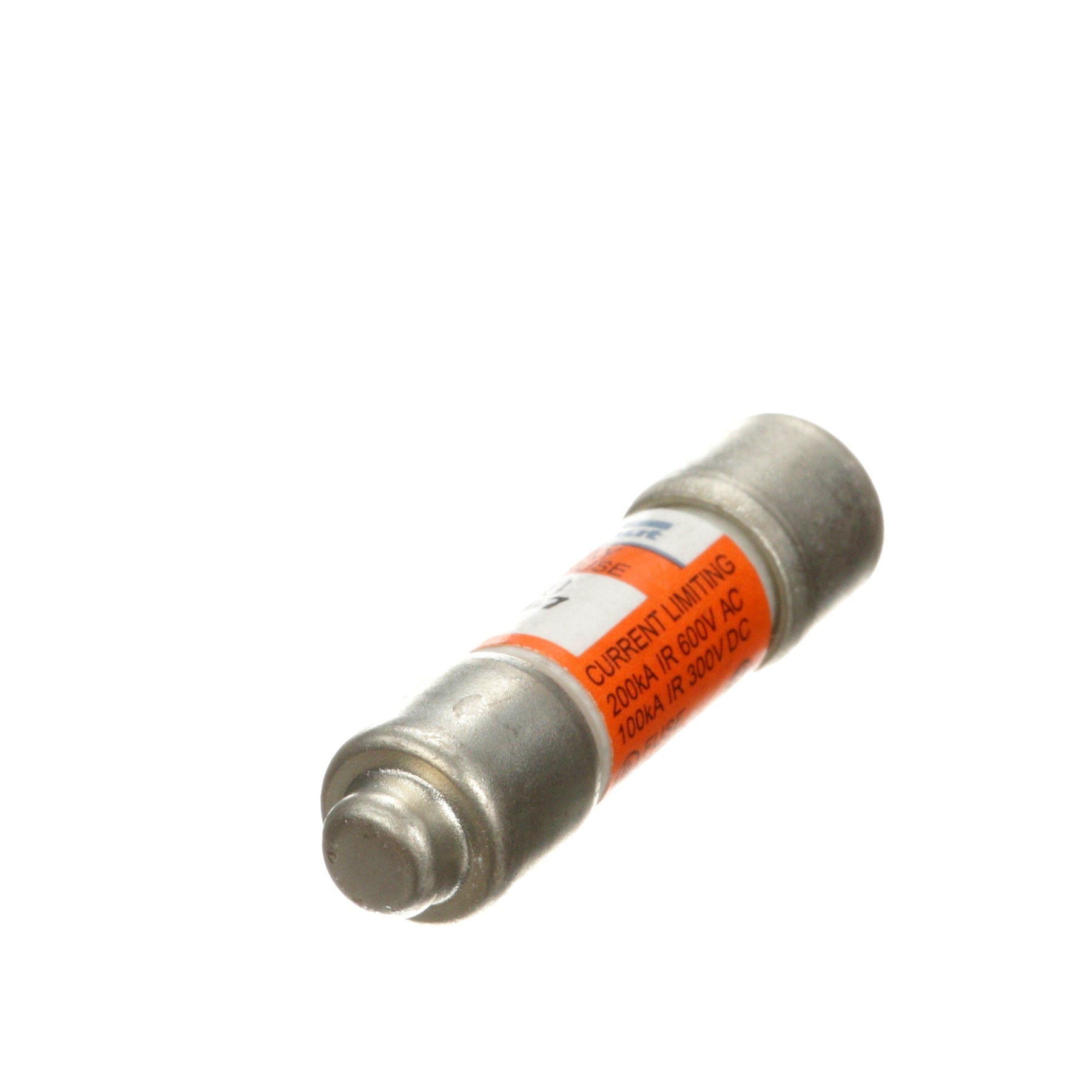

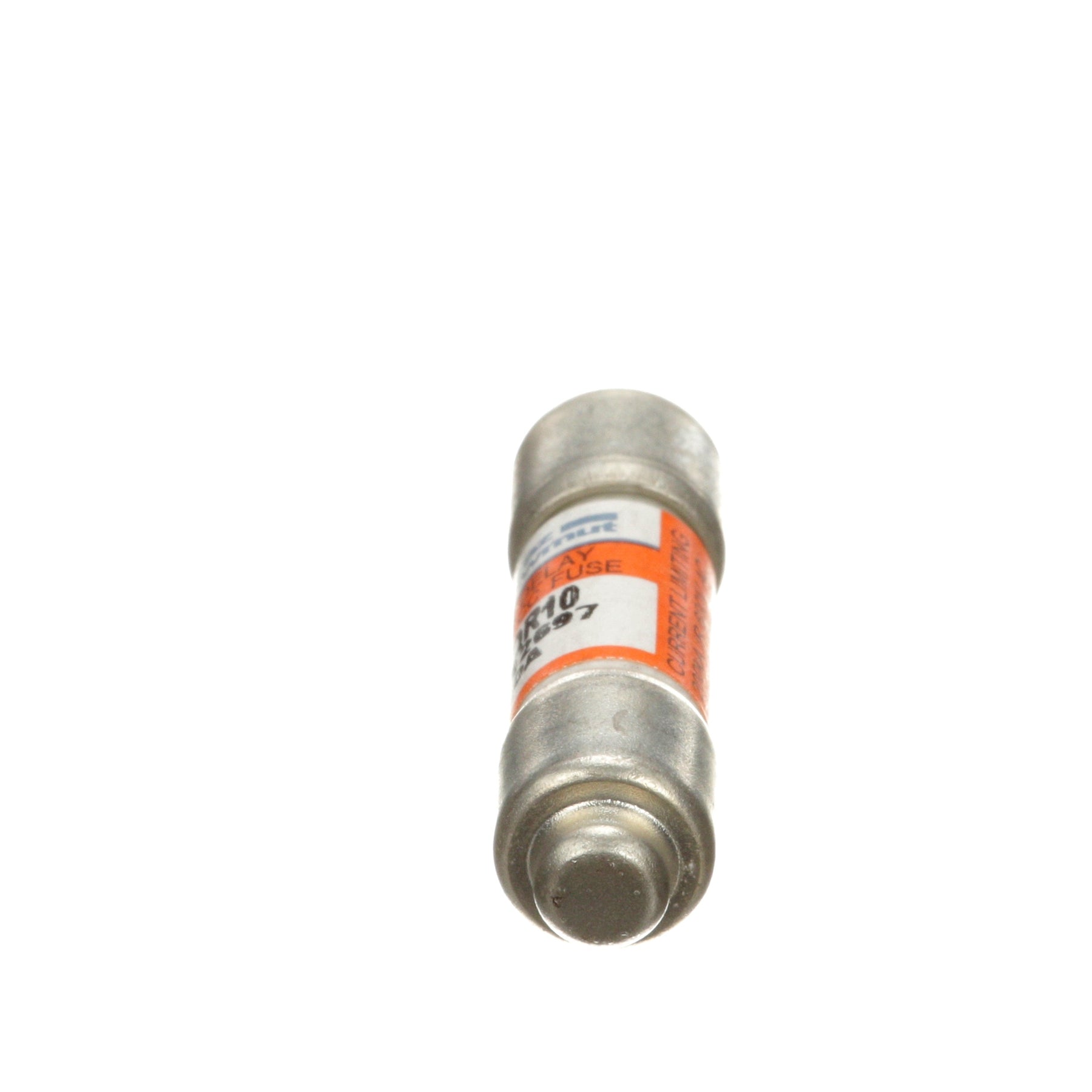

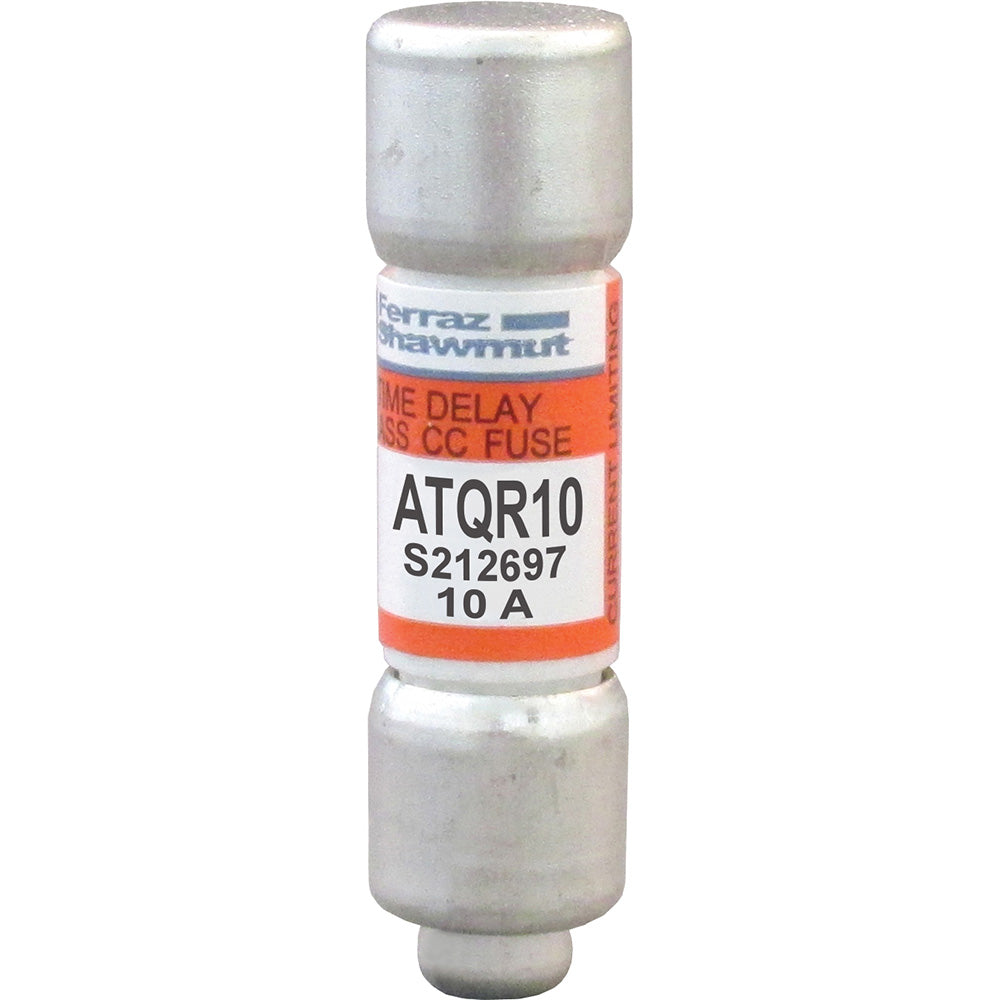

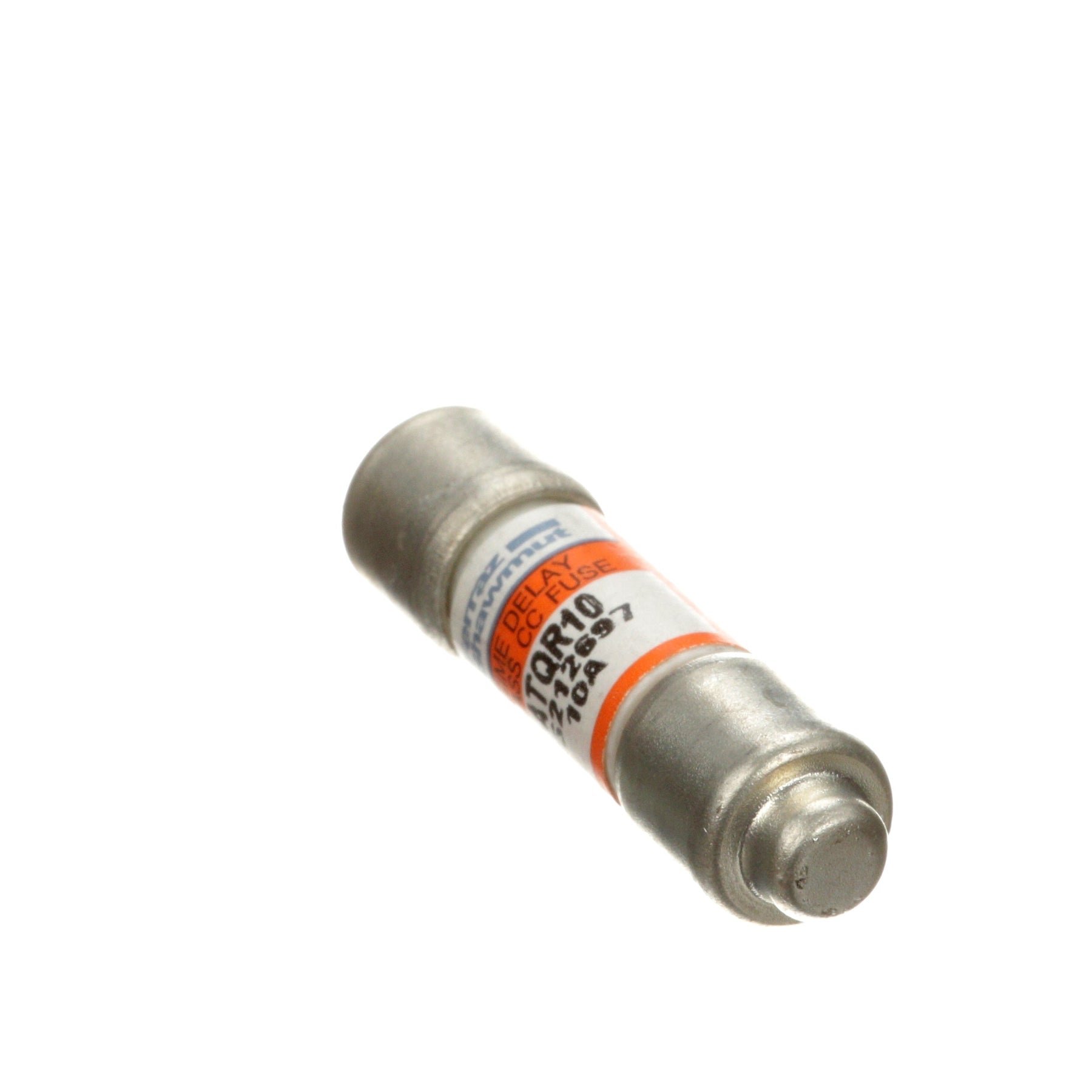

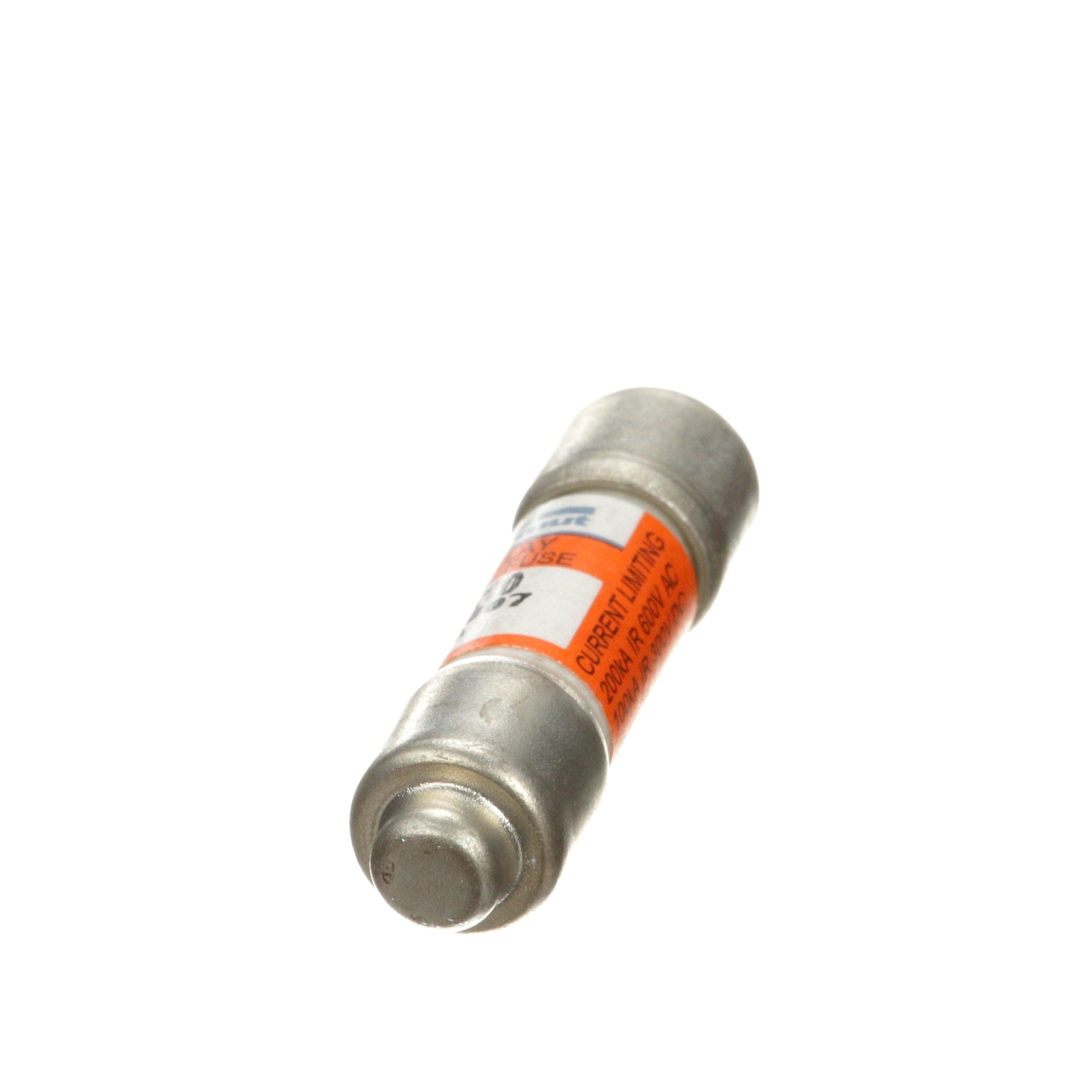

Cutler Hammer ATQR10 - Class CC Fuse 10A 600V (200kA AIC)

Cutler Hammer ATQR10 is a Class CC low-voltage current-limiting fuse designed for branch circuit and component protection in industrial electrical systems. This 10A fuse features a 600V AC voltage rating and provides 200kA interrupting capacity at rated voltage for reliable fault protection. The single-barrel construction measures 1-1/2 inches in length with a 0.41-inch diameter and 5 lb weight, utilizing current-limiting technology to protect sensitive equipment. UL and CSA certified, this Amp-Trap 2000 series fuse meets industry standards for safety and performance in demanding applications including motor control centers, industrial control panels, and power distribution equipment.

Key Features & Specifications

• Type: Class CC current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 10A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL/CSA certified
• Applications: Industrial control panels, motor control centers, branch circuit protection
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Weight: 5 lb
• Family: Amp-Trap 2000
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 782001906665
• GTIN: 00782001906665
