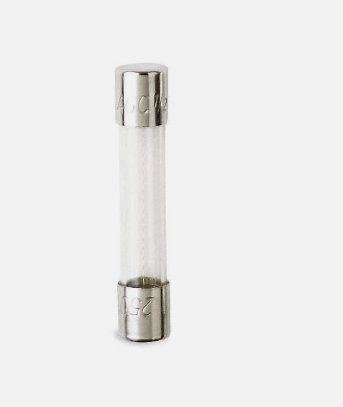

Eaton Bussmann AGC-50 - AGC Fuse 50A 32V (1kA AIC)

Bussmann
Price
Save $287.03
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Bussmann AGC-50 is a low-voltage, fast-acting fuse designed for overcurrent protection in DC and low-voltage AC circuits. It features a 50-ampere current rating and a 32-volt voltage rating, with an interrupting capacity of 1,000 amperes at 32V AC. The fuse is constructed with a single-barrel, ferrule connection design, measuring 1.25 inches in length and 0.25 inches in diameter, and it weighs 0.01 lb. As part of the industry-standard AGC series, it is engineered for reliable performance in applications such as automotive, marine, and low-voltage power supply protection.

Key Features & Specifications
  • Type: Fast-acting, low-voltage fuse with ferrule connection
  • Voltage Rating: 32V AC/DC
  • Current Rating: 50A
  • Dimensions: 1.25 in x 0.25 in x 0.25 in (L x H x W)
  • Diameter: 0.25 in
  • Weight: 0.01 lb
  • AIC Rating: 1kA @ 32V AC
  • Connection: Ferrule
  • Barrels: 1
  • Family: AGC Series


Product Identification
  • UPC: 05171270459
  • GTIN: 00051712704595
