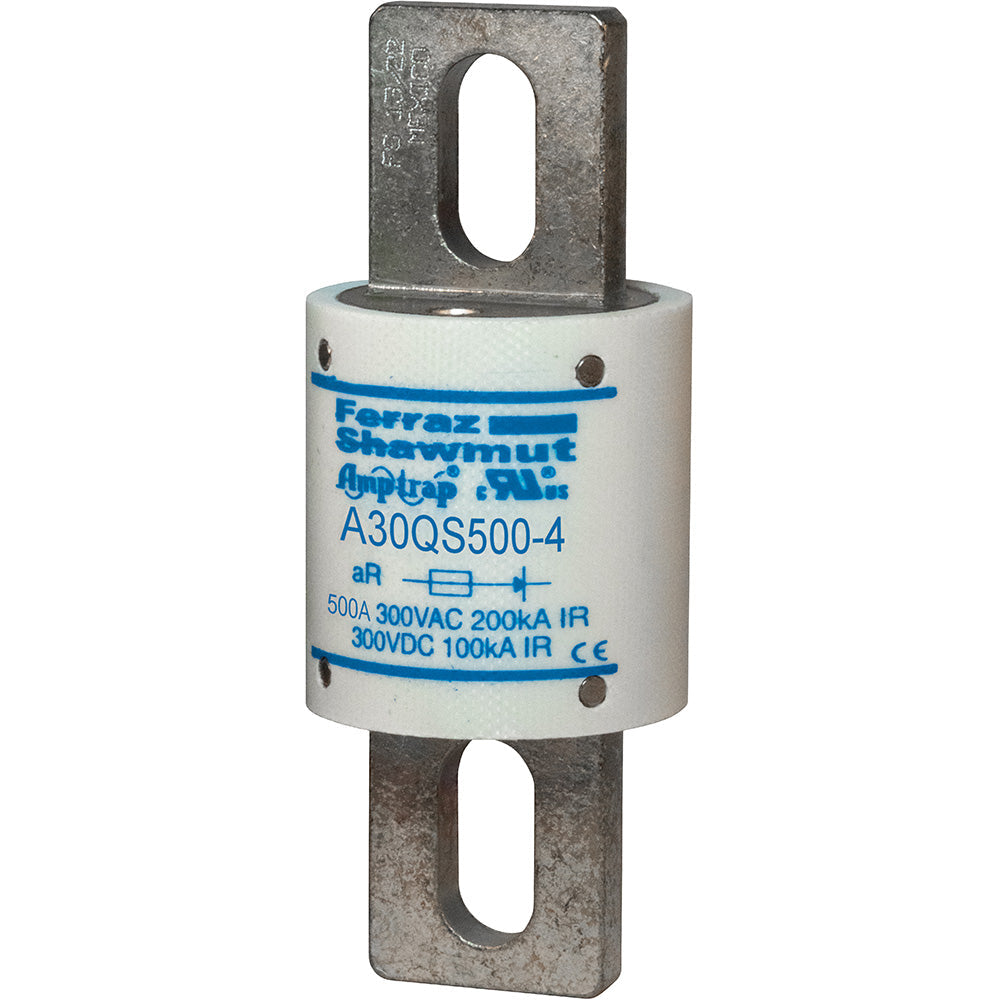

Ferraz Shawmut A30QS500-4 - Low Voltage Fuse 500A@300V (200kA AIC)

Ferraz Shawmut A30QS500-4 is a low-voltage current-limiting fuse from the Amp-Trap family, designed for robust circuit protection in industrial power distribution systems. This bolt-in fuse features a 500A current rating and 300V voltage rating with a 200kA interrupting capacity, housed in a compact 1.5-inch diameter barrel construction measuring 3.84 inches in length. UL Recognized and CE certified (Guide JFHR2, File E60314), it meets stringent safety standards for short-circuit protection in motor control centers, switchgear, and industrial control panels where high fault currents are present.

Key Features & Specifications

• Type: A30QS bolt-in current-limiting fuse
• Voltage Rating: 300V AC
• Current Rating: 500A
• Dimensions: 3.84 in length x 1.5 in diameter
• Weight: 2 lb
• Standards: UL Recognized, CE, Guide JFHR2, File E60314
• Applications: Industrial power distribution, motor control centers, switchgear
• Connection: Bolt-In
• Barrels: 1
• AIC rating: 200kA@300V
• Certification: CE, UL Recognized
• Country of Origin: Mexico

Product Identification

• UPC: 78200128087
• GTIN: 00782001280871
