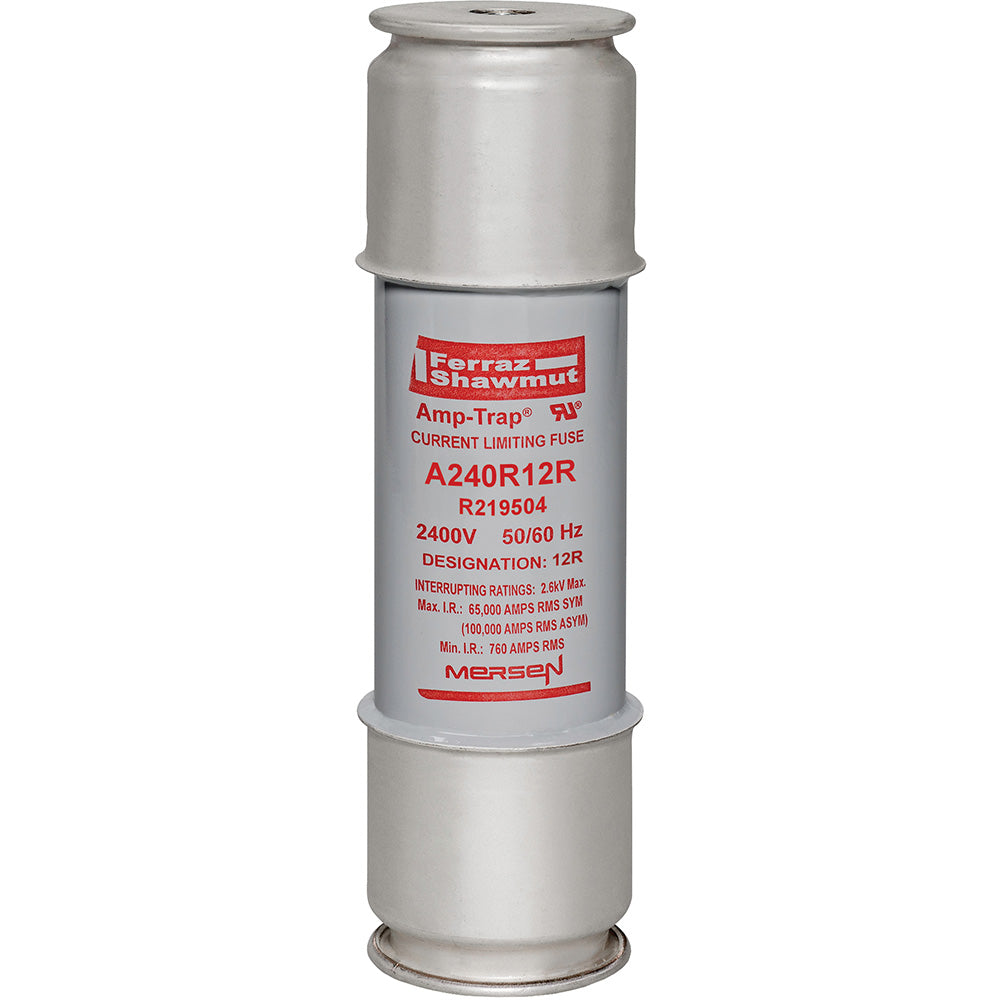

Mersen A240R12R - Medium Voltage Fuse 2400V AC (230A, 65kA AIC)

Mersen A240R12R is a medium voltage current-limiting fuse designed for industrial circuit protection in high-fault environments. This Amp-Trap series fuse features a 2400V AC rating with a 230A continuous current capacity and 65kA interrupting rating at 2.4kV, housed in a compact 3-inch diameter ferrule-connected design with 7.5-inch clip centers. Constructed with Class R rejection features, the single-barrel fuse meets stringent industrial protection standards for medium voltage applications including motor starters, transformers, and capacitor banks.

Key Features & Specifications

• Type: Current-limiting medium voltage fuse with Class R rejection clip
• Voltage Rating: 2400V AC
• Current Rating: 230A continuous
• Dimensions: 3" diameter, 7.5" clip centers
• Standards: Meets industrial protection requirements for medium voltage systems
• Applications: Motor protection, transformers, capacitor banks
• AIC rating: [email protected]
• Connection: Ferrule
• Barrels: 1
• Class Rating: R
• Weight: 8 lb

Product Identification

• UPC: 782001800116
• GTIN: 00782001800116
