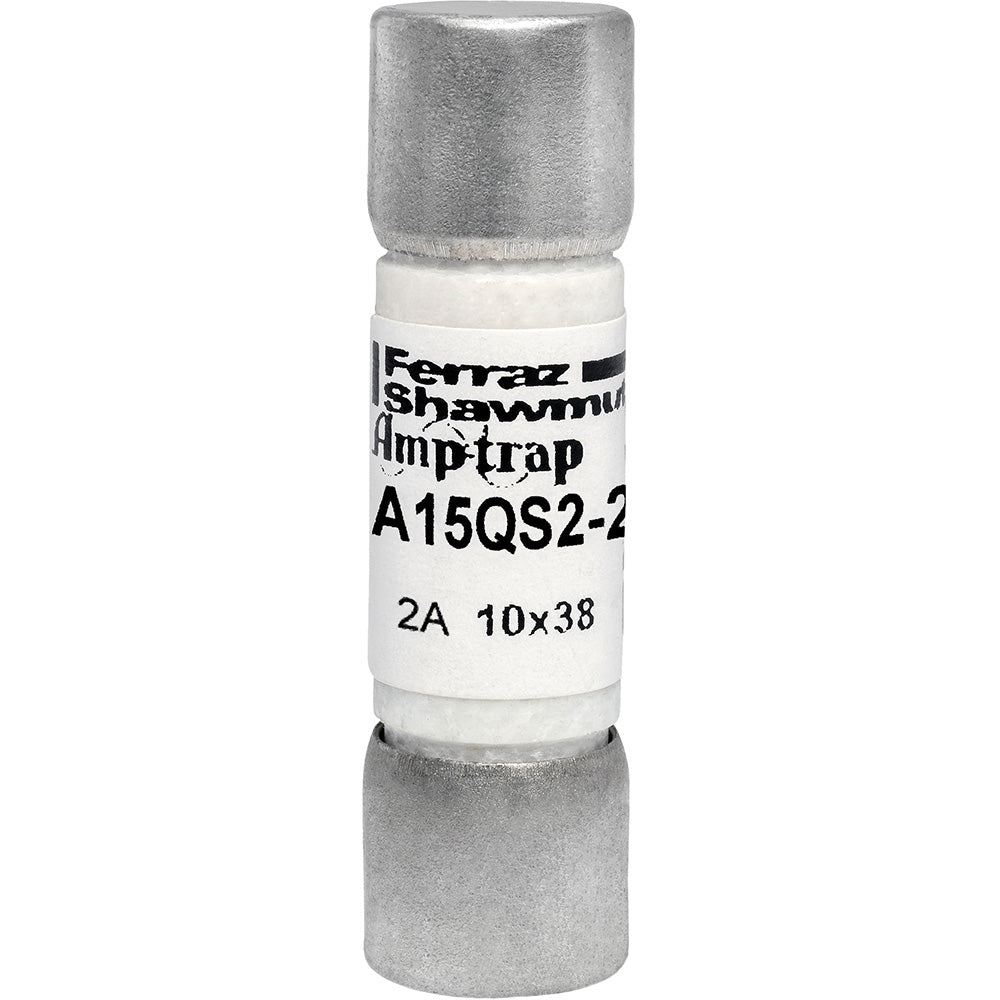

Cutler Hammer A15QS2-2 - Amp-Trap Current-Limiting Fuse 2A (100kA AIC @150V)

Cutler Hammer A15QS2-2 is a low voltage current-limiting fuse from the Amp-Trap family designed to provide reliable overcurrent protection in industrial electrical systems. It features a 2A current rating and a 150V voltage rating, with a high 100kA interrupting capacity at 150VAC to safely clear severe short circuits. The fuse is constructed with a single-barrel design featuring ferrule connections and measures 0.41 inches in diameter with a weight of 0.02 lb for compact installation. This fuse meets industry standards for current-limiting protection and is typically applied in control circuits, motor branch circuits, and transformer protection where precise current coordination is required.

Key Features & Specifications

• Type: Amp-Trap current-limiting fuse, single barrel, ferrule connection
• Voltage Rating: 150V AC
• Current Rating: 2A
• Dimensions: 0.41" diameter
• Standards: Current-limiting fuse standards
• Applications: Control circuits, motor protection, transformer protection
• AIC rating: 100kA @ 150V
• Connection: Ferrule
• Barrels: 1
• Weight: 0.02 lb
• Family: Amp-Trap
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 78200145339
• GTIN: 00782001453398
