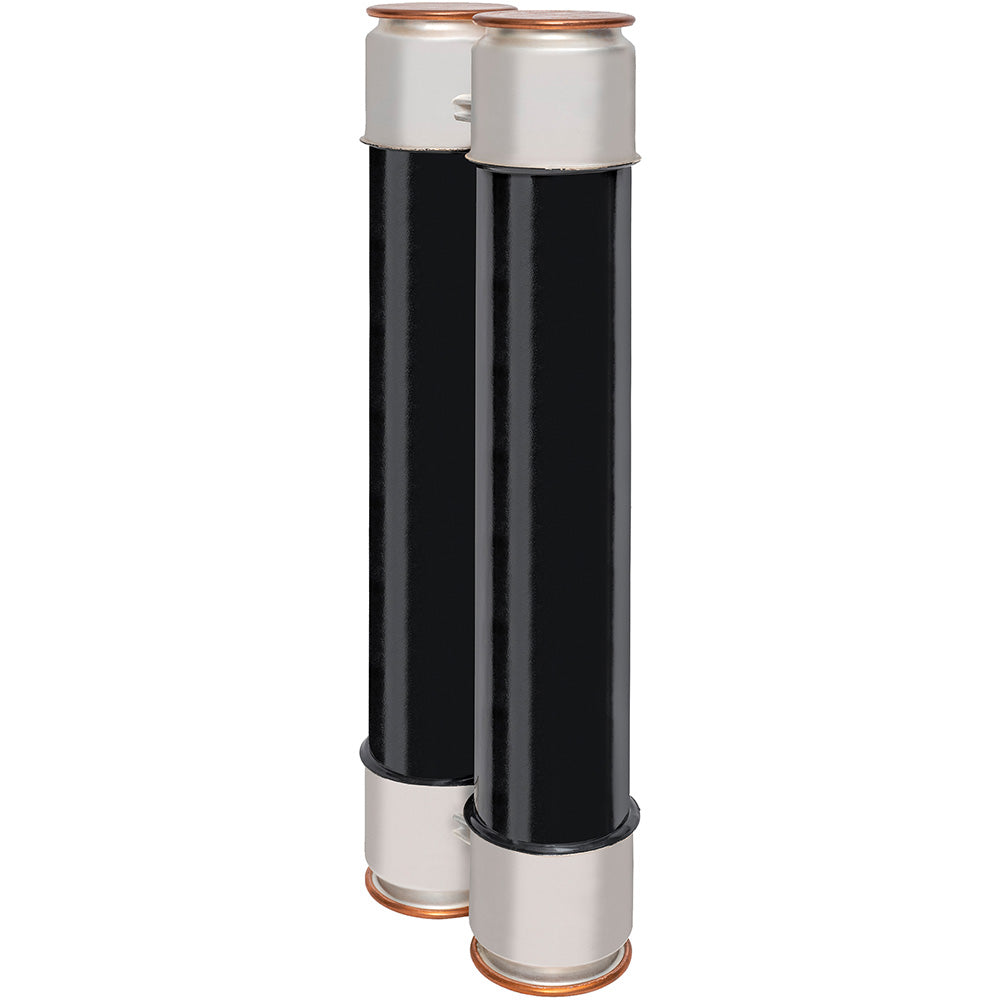

Mersen 9F62FDD150 - Medium Voltage Fuse 15.5kV/150A (50kA AIC, Class E)

Mersen 9F62FDD150 is a medium voltage fuse designed for high-current circuit protection in industrial power distribution systems. This Class E-rated fuse operates at 15.5kV with a 150A current rating and 50kA interrupting capacity, featuring a robust clip-in connection with dual-barrel construction. The 18.88-inch long, 3-inch diameter unit weighs 22 lb and complies with UL standard E143362 for medium voltage applications. Its design meets stringent requirements for transformer protection, motor circuits, and feeder protection in utility and industrial environments.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse with dual-barrel design
• Voltage Rating: 15,500V AC
• Current Rating: 150A
• Dimensions: 18.88 in length, 3 in diameter
• Standards: UL listed (File E143362)
• Applications: Industrial power distribution, transformer protection
• Class Rating: E
• Connection: Clip-in
• Barrels: 2
• AIC rating: [email protected]
• Clip Center: 15
• Weight: 22 lb

Product Identification

• UPC: 782001395919
• GTIN: 00782001395919
