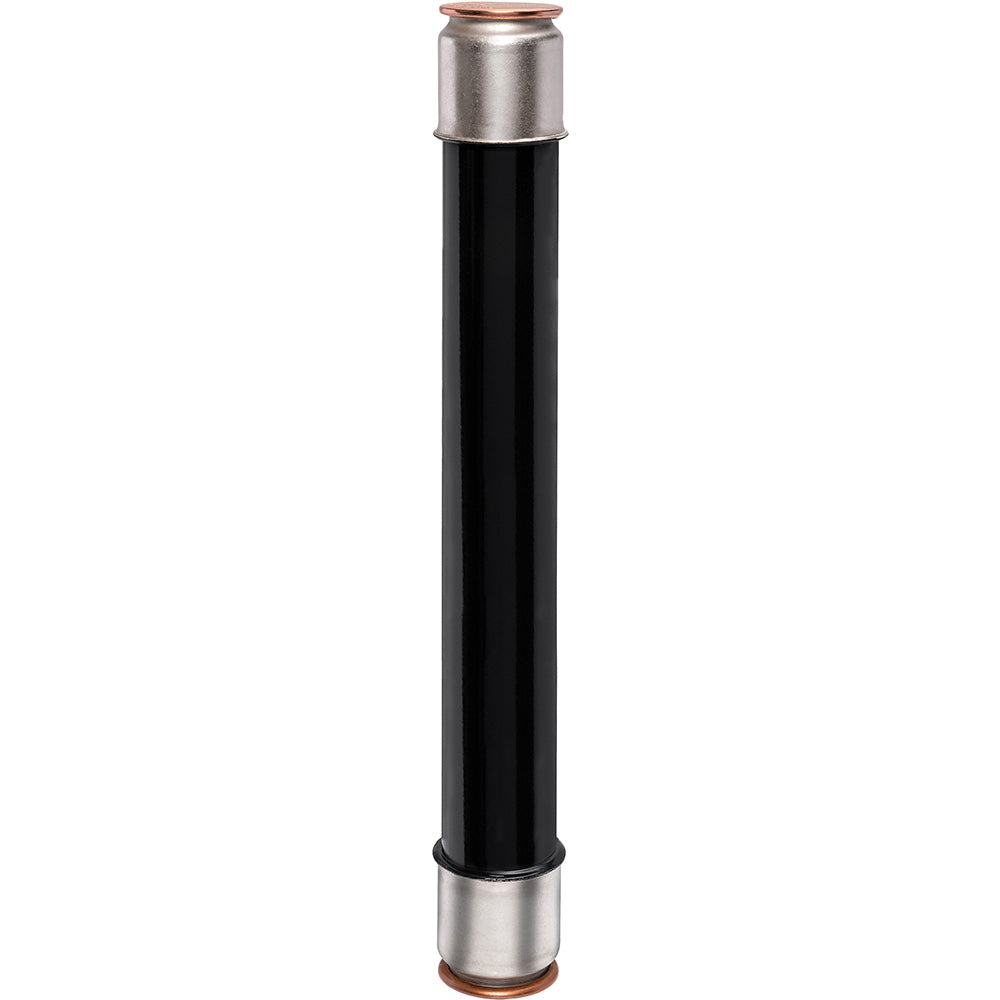

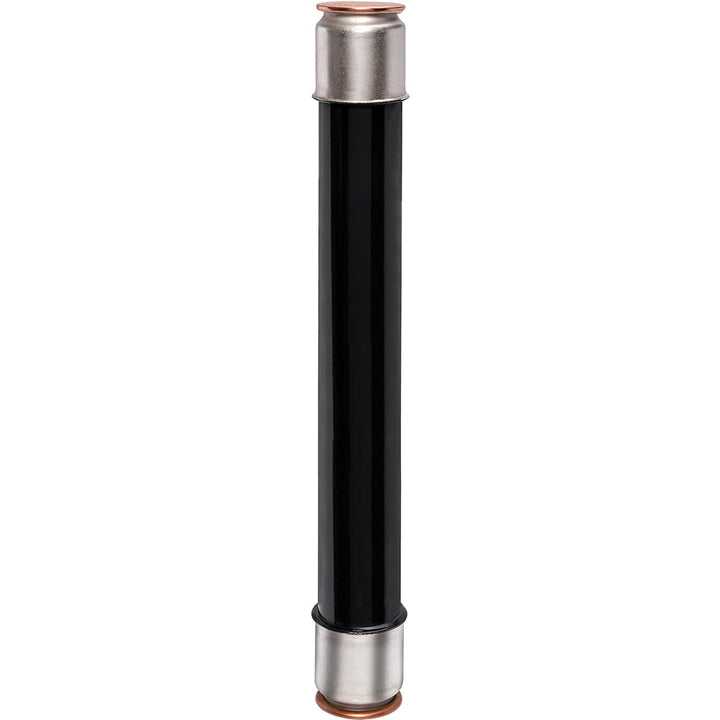

Mersen 9F60FNJ030 - EJO-1 Medium Voltage Fuse 25.8kV/30A (25kA AIC Rating)

Mersen 9F60FNJ030 is a medium voltage fuse designed for high-voltage circuit protection in industrial applications. This E-class fuse features a 25.8kV voltage rating and 30A current rating, with a single-barrel construction and 21-inch clip center spacing for standardized mounting. Its 3-inch diameter, 6 lb design provides robust protection with a 25kA interrupting capacity at rated voltage, meeting stringent industry requirements for medium-voltage distribution systems. The EJO-1 type fuse complies with ANSI/IEEE standards for reliable performance in utility substations, industrial plants, and mining equipment where high fault current interruption is critical.

Key Features & Specifications

• Type: EJO-1 medium voltage fuse, single-barrel design
• Voltage Rating: 25,800V AC
• Current Rating: 30A
• Dimensions: 3" diameter, 21" clip center spacing
• Standards: ANSI/IEEE compliant
• Applications: Utility substations, industrial power distribution
• Class Rating: E
• AIC rating: 25kA @ 25.8kV
• Weight: 6 lb

Product Identification

• UPC: 782001397203
• GTIN: 00782001397203
