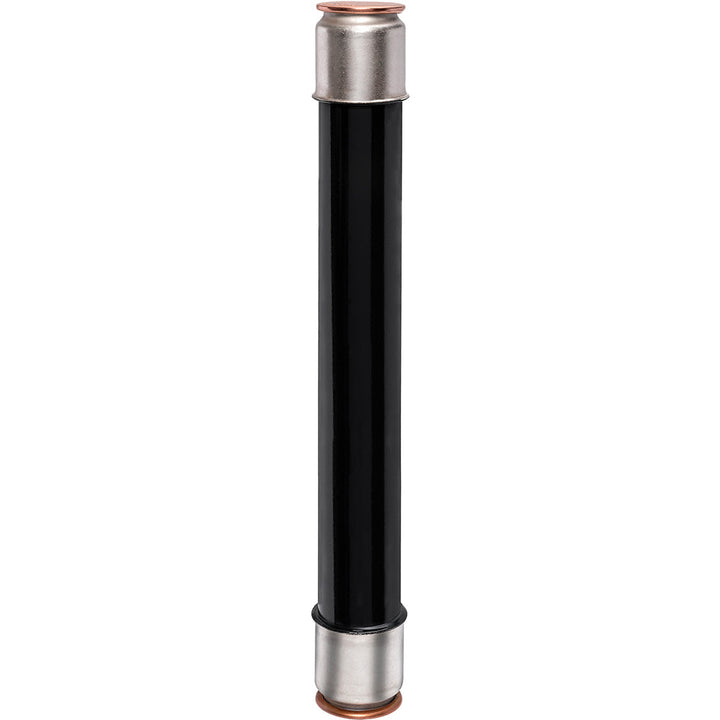

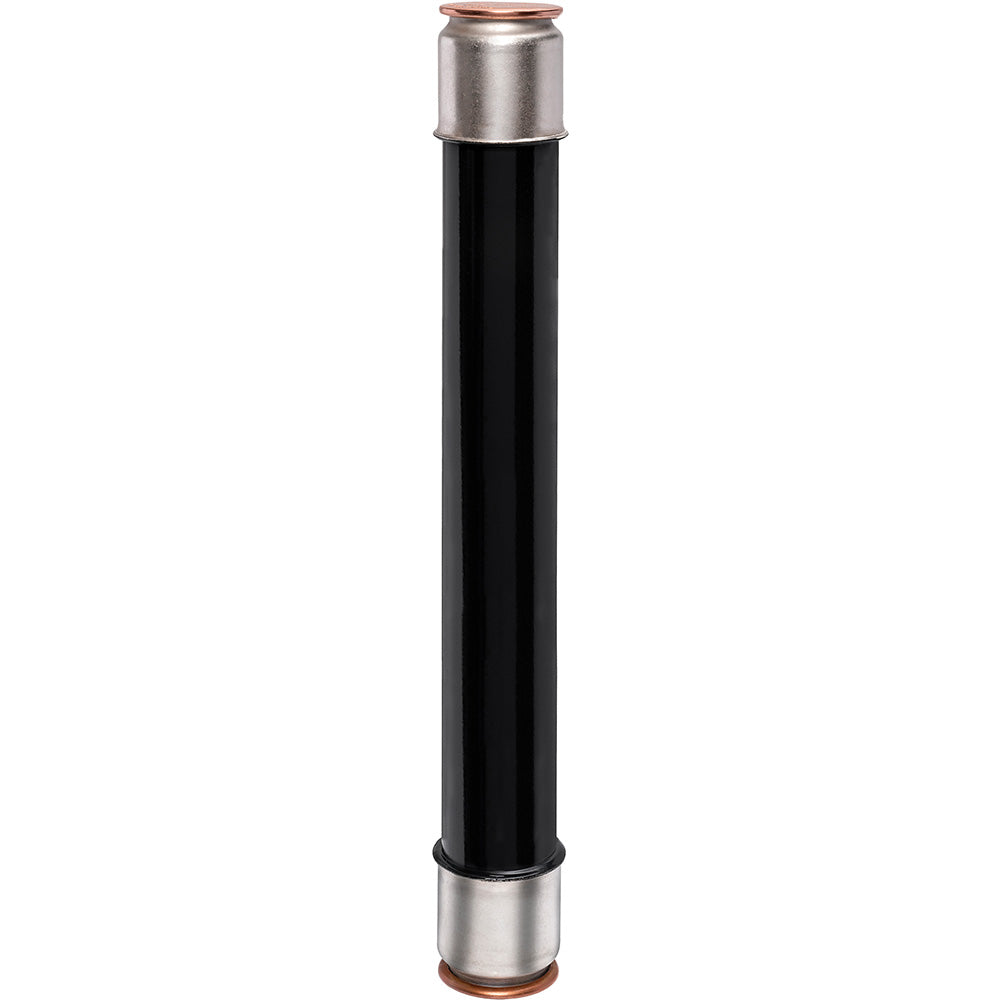

Mersen 9F60FNJ025 - EJO-1 Medium Voltage Fuse 25.8kV/25A (25kA AIC)

Mersen 9F60FNJ025 is a medium voltage fuse designed for high-voltage circuit protection in industrial applications. This EJO-1 class fuse features a 25.8kV voltage rating and 25A current rating with a 25kA interrupting capacity at full voltage. The single-barrel construction measures 3" in diameter with 21" clip center spacing, built to ANSI/IEEE standards for reliable performance in harsh environments. It meets Class E specifications for medium-voltage distribution systems, commonly used in transformer protection, motor circuits, and feeder applications.

Key Features & Specifications

• Type: EJO-1 medium voltage fuse with silver-sand construction
• Voltage Rating: 25,800V AC
• Current Rating: 25A
• Dimensions: 3" diameter, 21" clip center
• Standards: ANSI/IEEE compliant
• Applications: Transformer protection, industrial motor circuits
• Class Rating: E
• AIC rating: [email protected]
• Barrels: 1
• Weight: 6 lb

Product Identification

• UPC: 782001397197
• GTIN: 00782001397197
