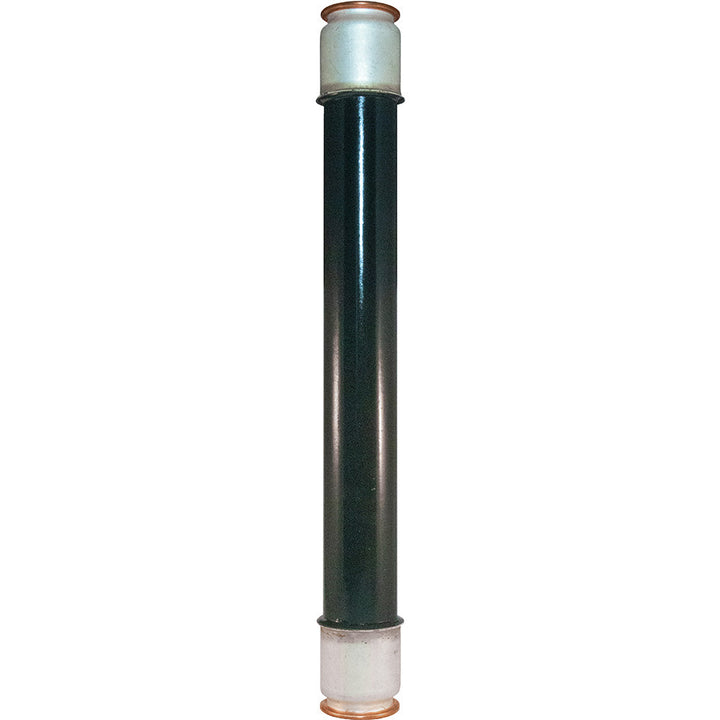

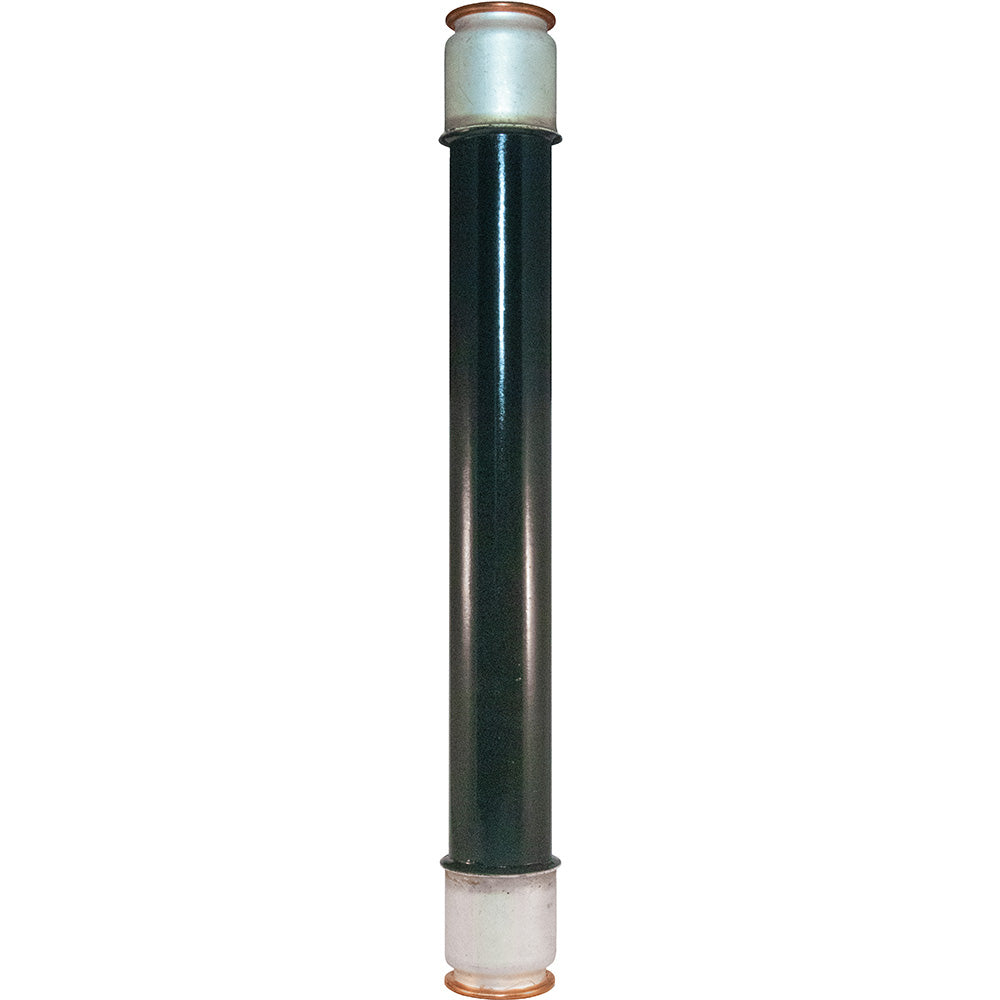

Mersen 9F60DMH007 - EJO-1 Medium Voltage Fuse 7A 15.5kV (120kA AIC Rating)

Mersen 9F60DMH007 is a medium voltage fuse designed for overcurrent protection in industrial power distribution systems. This EJO-1 class fuse operates at 15.5kV with a 7A current rating and features a 120kA interrupting capacity at rated voltage. Constructed as a single-barrel design with 2-inch diameter and 17-1/5-inch length, the fuse maintains reliable performance across an operating temperature range of -25°C to 70°C. Engineered to meet industry standards for medium voltage applications, this fuse provides critical circuit protection in utility substations, industrial plants, and commercial power systems where high-voltage interruption capability is required.

Key Features & Specifications

• Type: EJO-1 medium voltage fuse, single barrel construction
• Voltage Rating: 15,500V AC
• Current Rating: 7A
• Dimensions: 17-1/5 inch length, 2 inch diameter
• Standards: Class E rating
• Applications: Industrial power distribution, utility substations, commercial power systems
• AIC rating: 120kA at 15.5kV
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Clip Center: 15 inches
• Barrels: 1
• Weight: 1 lb
• Family: 9F60 Series

Product Identification

• UPC: 782001396701
• GTIN: 00782001396701
