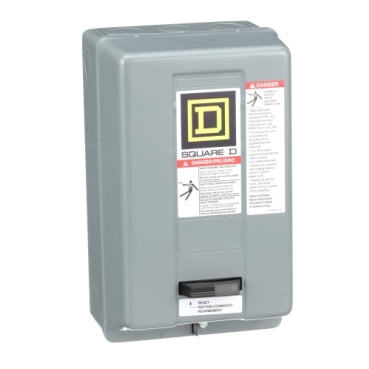

9991SCG8 Square D NEMA 1 Enclosure for Class 8536 Type S Nonreversing Starter Sizes 00 0 1

9991SCG8 Square D Type S Starter Enclosure — NEMA 1, Class 8536, Sizes 00, 0 & 1

Sourcing a complete motor control assembly means getting the enclosure right the first time. The Square D 9991SCG8 is the manufacturer-specified NEMA Type 1 enclosure for Class 8536 SAO, SBO, and SCO nonreversing magnetic starters in NEMA Sizes 00, 0, and 1. Whether you're quoting a full control BOM or replacing a damaged housing in the field, the 9991SCG8 eliminates compatibility questions.

Built from 20-gauge gray painted sheet steel, this surface-mount enclosure installs with three No. 10 screws and accepts a range of NEMA 1-rated cover accessories. It carries both UL listing and CSA certification — fully compliant for commercial and light industrial indoor motor control applications.

Common Applications

• Complete motor control BOM fulfillment alongside Class 8536 starters
• Replacement enclosures for existing NEMA Size 00, 0, or 1 starter installations
• Indoor motor control for pumps, fans, compressors, and conveyors
• Commercial construction projects specifying Square D Type S motor control equipment
• MRO procurement for facility maintenance teams managing Square D starter panels

Key Features

• Manufacturer-Specified Fit: Purpose-built for Class 8536 SAO, SBO, and SCO nonreversing starters in NEMA Sizes 00, 0, and 1 — direct compatibility, no substitution required.
• NEMA 1 Rated: Suitable for indoor general-purpose motor control environments; rated against contact with energized parts and falling dirt.
• 20-Gauge Painted Steel: Gray finish, solid steel construction for long-term durability in panel applications.
• Screw-Latch Cover: Secure, tool-accessible enclosure with solid cover; NEMA 1 accessories can be mounted in the door for operator controls.
• Simple Surface Mount: Three No. 10 screws for fast, straightforward wall installation.
• Dual Certification: UL listed and CSA certified for compliant procurement on commercial and industrial projects.

Specifications

• Manufacturer: Square D by Schneider Electric
• Catalog Number: 9991SCG8
• Alternate Part Number: 9991-SCG8
• NEMA Rating: Type 1
• Material: Sheet steel, 20 ga
• Finish: Gray, painted
• Cover: Solid, screw latch
• Mounting Style: Surface / wall mount
• Compatible Starters: Class 8536 SAO/SBO/SCO, NEMA Sizes 00, 0, 1
• Certifications: UL Listed, CSA Certified
• Height: 10.0 in
• Width: 5.98 in
• Depth: 5.55 in

Product Identification

• UPC: 78590175907
• GTIN: 00785901759072 (verify)
• Country of Origin: MX: Mexico
• Weight: 3.57 lbs
• Dimensions (H × W × D): 10.0 in × 5.98 in × 5.55 in
