Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

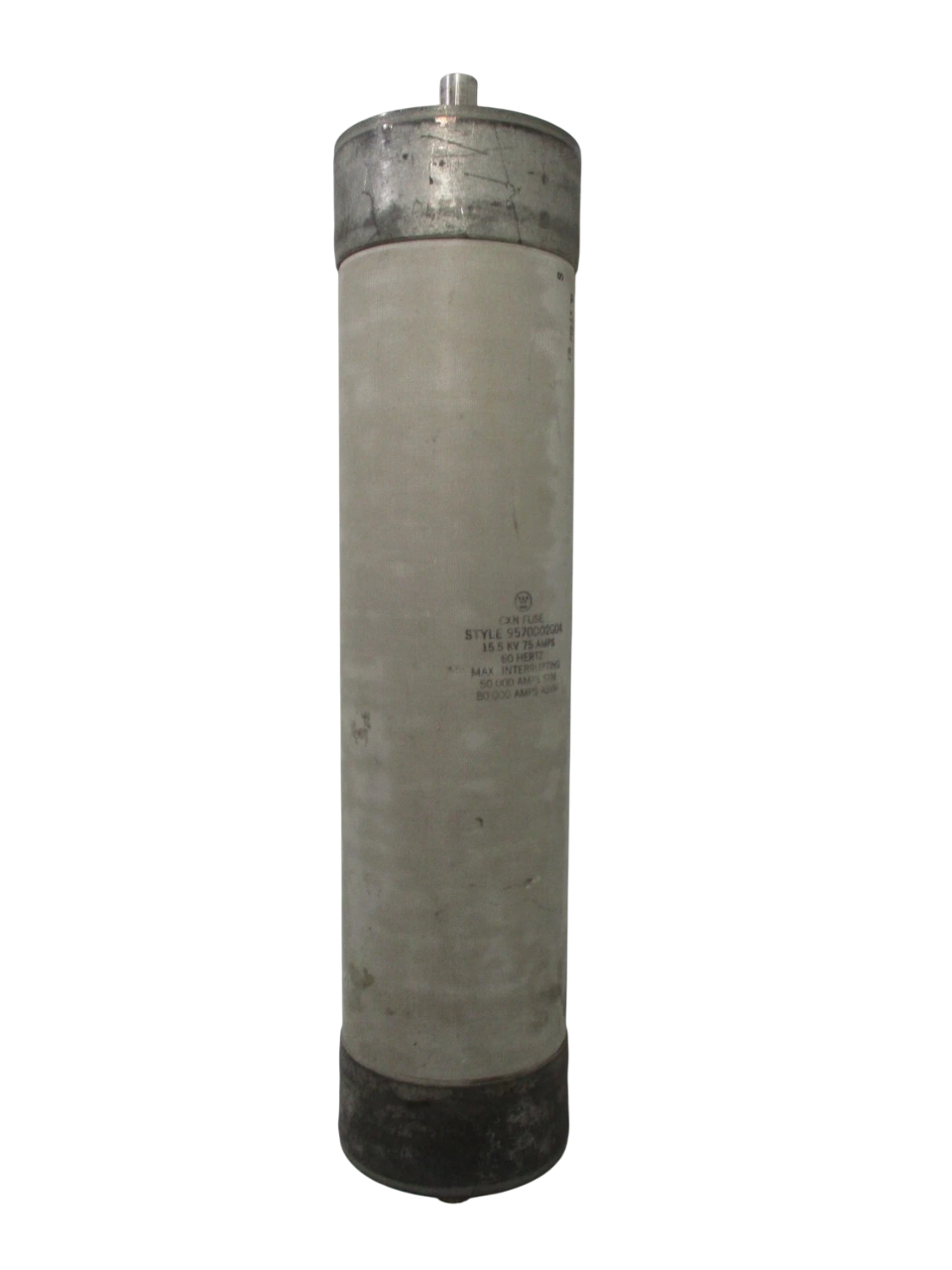

Eaton 9570D01G06 is a medium voltage current-limiting fuse designed for high-capacity circuit protection in industrial power distribution systems. This CXN type fuse provides reliable overcurrent protection with a 250A current rating and 8300V voltage rating, capable of interrupting fault currents up to 50kA at 8.3kV. The dual-barrel construction features a Class C rating and measures 3 inches in diameter with a weight of 17 lb, ensuring robust performance in demanding environments. Compliant with industry standards for medium voltage applications, this CX family fuse is engineered for use in motor control centers, switchgear, and industrial power distribution networks where high interrupting capacity and current-limiting characteristics are essential.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, CXN type, dual-barrel construction
  • Voltage Rating: 8300V AC
  • Current Rating: 250A
  • Dimensions: 3" diameter
  • Standards: Industry standards for medium voltage protection
  • Applications: Industrial power distribution, motor control centers, switchgear
  • AIC rating: [email protected]
  • Class Rating: C
  • Barrels: 2
  • Weight: 17 lb
  • Family: CX
  • Item Subcategory: Medium Voltage
