Square D 8501KPDR12V53 - DPDT Relay 24VDC Coil
Square D 8501KPDR12V53 - DPDT Relay 24VDC Coil

Square D 8501KPDR12V53 - DPDT Relay 24VDC Coil

Square D
Price
Save $-11.03
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

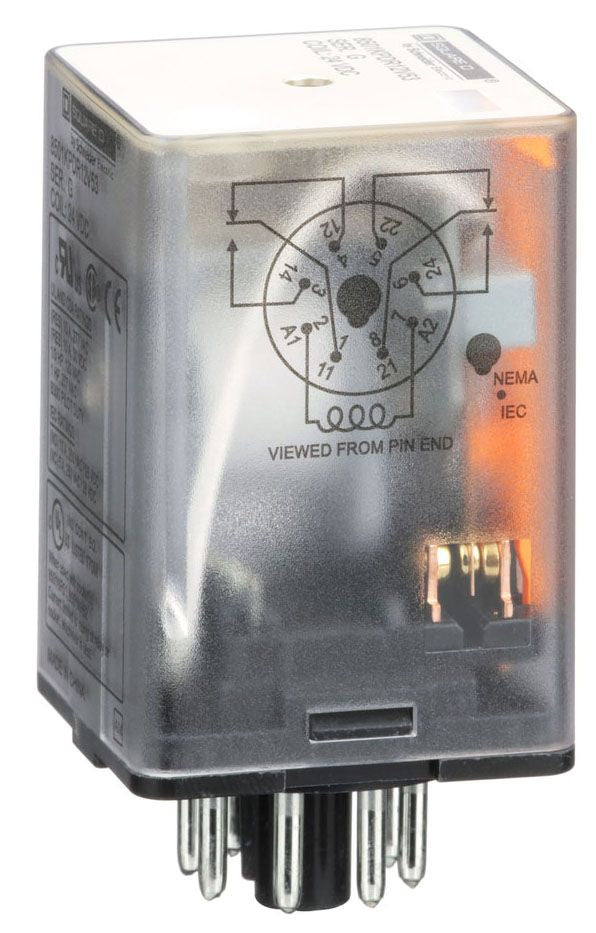

The Square D 8501KPDR12V53, manufactured by Schneider Electric, is a general purpose plug-in relay designed for motor control and industrial circuit applications. This relay features a 24VDC coil and DPDT (2 Form C) contact configuration with two normally open and two normally closed contacts, rated for 10A at 277VAC and 28VDC, along with a 1/3HP rating at 120VAC. Physically, it measures 1.4 inches (35.56 mm) by 2.66 inches (67.56 mm), weighs 0.2 lb, and is designed for plug-in socketable mounting within a tubular Type KP frame. The relay is CE Certified, CSA Certified, UL Listed, and specifically UL 508 listed for industrial control equipment. Typical applications include motor control circuits, general purpose switching, and automation systems requiring reliable double-pole switching.

Key Features & Specifications
  • Type: General purpose plug-in relay
  • Part Number: 8501KPDR12V53
  • Manufacturer: Square D (Schneider Electric)
  • Coil Voltage: 24VDC
  • Contact Configuration: DPDT (2 Form C), 2NO, 2NC
  • Contact Rating: 10A at 277VAC, 10A at 28VDC
  • HP Rating: 1/3HP at 120VAC
  • Interrupt Rating: 3A at 120VAC inductive (UL 508), 1.5A at 240VAC inductive (UL 508), 10A at 277VAC
  • Mounting Type: Plug-in, socketable
  • Series/Frame: Type KP, tubular
  • Dimensions: 1.4 in (35.56 mm) x 2.66 in (67.56 mm)
  • Weight: 0.2 lb
  • Country of Origin: China
  • Certification: CE Certified, CSA Certified, UL Listed, UL 508
  • Section: Relays
  • Item Subcategory: Motor Control Part And Accessory


Product Identification
  • UPC: 78590127817
  • GTIN: 00785901278177
