Eaton 72DBA1-5E - High Voltage Fuse 5A 69kV (IEEE C37.41)
Eaton 72DBA1-5E - High Voltage Fuse 5A 69kV (IEEE C37.41)
72DBA1-5E Eaton DBA High Voltage Fuse - Essential Electric Supply
72DBA1-5E Eaton DBA High Voltage Fuse - Essential Electric Supply
Eaton 72DBA1-5E - High Voltage Fuse 5A 69kV (IEEE C37.41)
Eaton 72DBA1-5E - High Voltage Fuse 5A 69kV (IEEE C37.41)

Eaton 72DBA1-5E - High Voltage Fuse 5A 69kV (IEEE C37.41)

Eaton
Price
Save $3,460.30
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

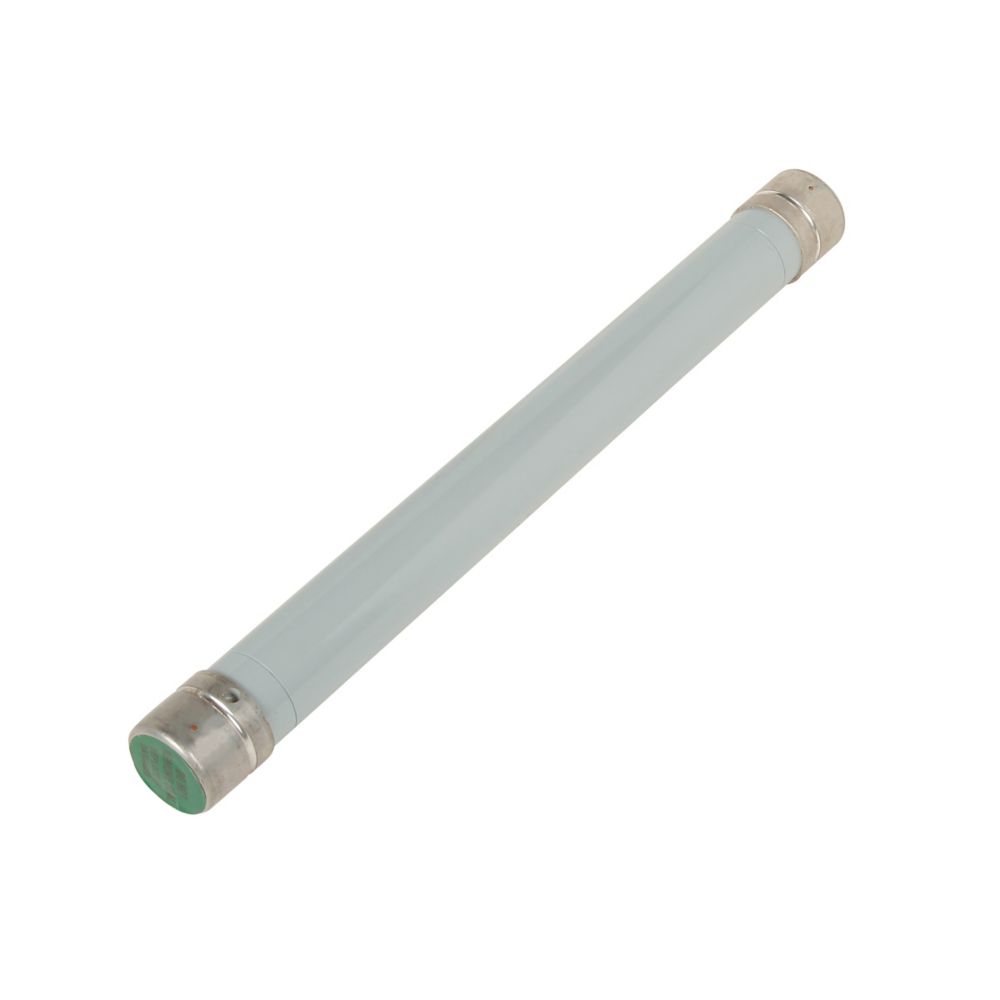

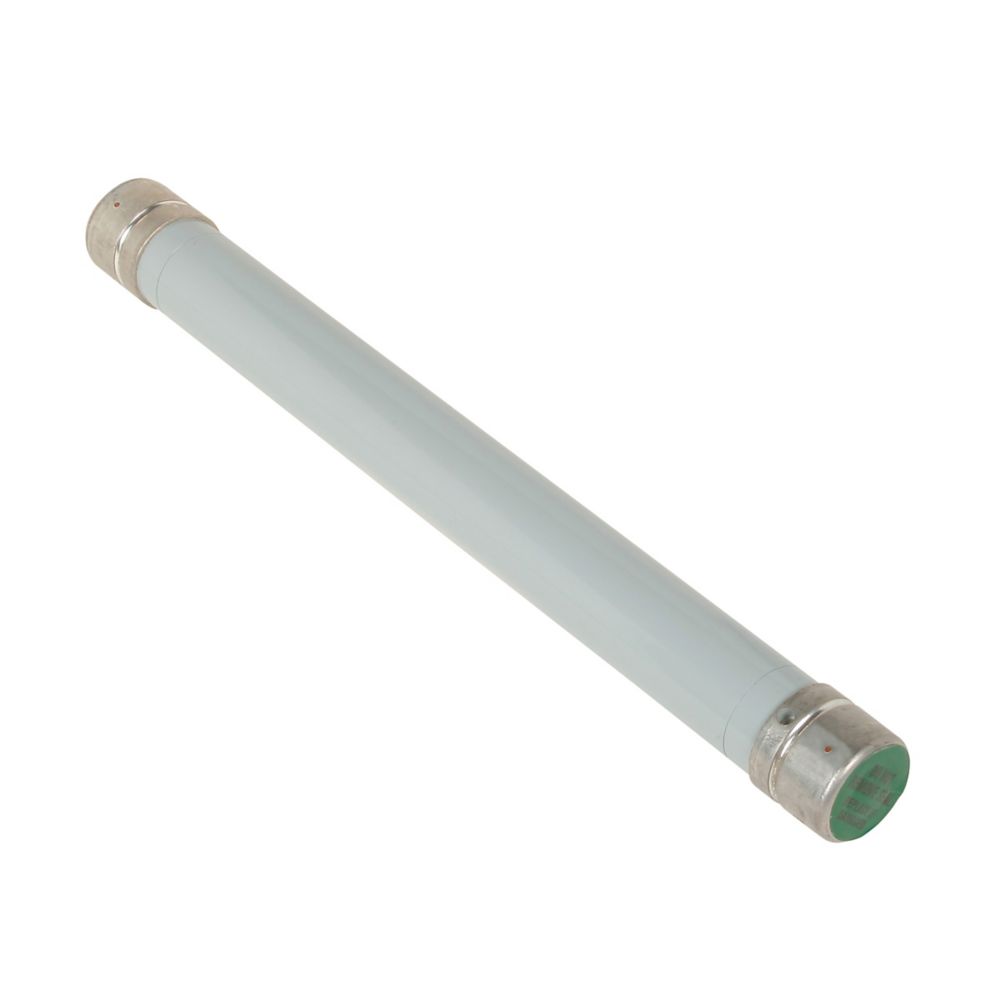

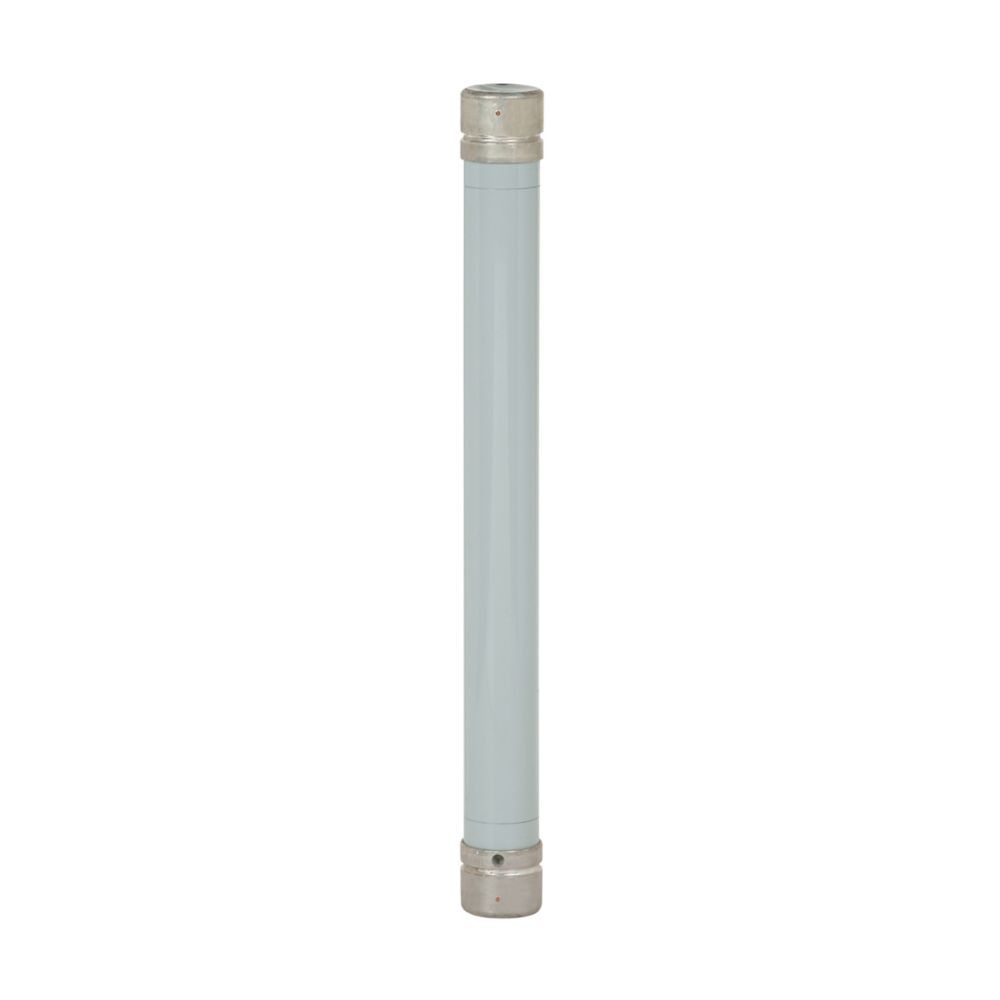

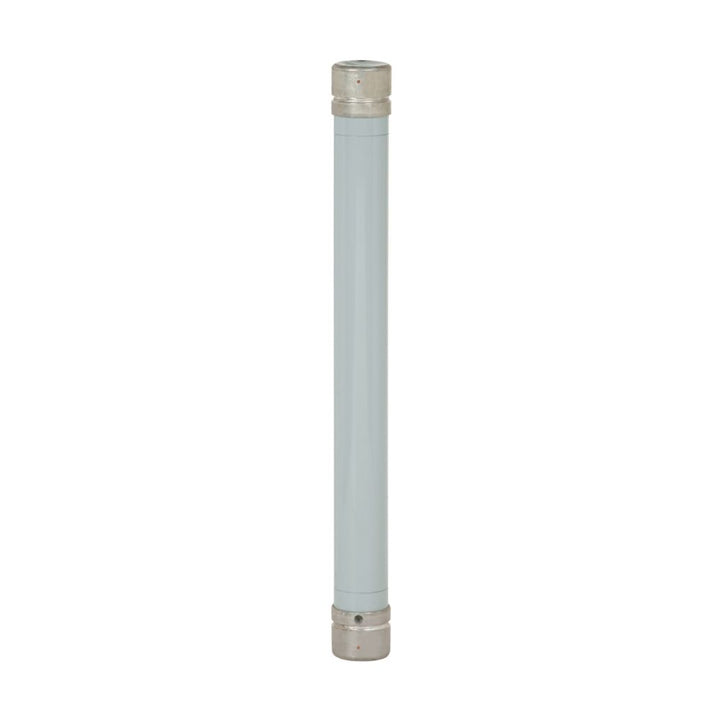

Eaton 72DBA1-5E is a high-voltage current-limiting power fuse designed for the protection of transformers, capacitor banks, and other equipment in medium to high-voltage electrical distribution systems. It features a 5A current rating and a 69kV voltage rating, housed within a robust single-barrel ferrule-connection design measuring 43.88 inches in length. The fuse is engineered to IEEE Std. C37.41 standards with a 10kA interrupting rating at 72kV, ensuring reliable protection for critical industrial power infrastructure.

Key Features & Specifications
  • Type: DBA1 high-voltage current-limiting power fuse, single barrel, ferrule connection
  • Voltage Rating: 69000V
  • Current Rating: 5A
  • Dimensions: 43.88 in x 1.7 in x 1.7 in (Length x Height x Width)
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Protection for transformers, capacitor banks, and distribution equipment
  • Class Rating: E
  • AIC rating: 10kA@72kV
  • Velocity: Standard
  • Weight: 7 lb


Product Identification
  • UPC: 078667000507
  • GTIN: 00786670005070
