Eaton 38RBA4-40E - Medium Voltage Fuse Refill 40A @ 34.5kV
Eaton 38RBA4-40E - Medium Voltage Fuse Refill 40A @ 34.5kV
Eaton 38RBA4-40E - Medium Voltage Fuse Refill 40A @ 34.5kV
Eaton 38RBA4-40E - Medium Voltage Fuse Refill 40A @ 34.5kV

Eaton 38RBA4-40E - Medium Voltage Fuse Refill 40A @ 34.5kV

Eaton
Price
Save $-129.89
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

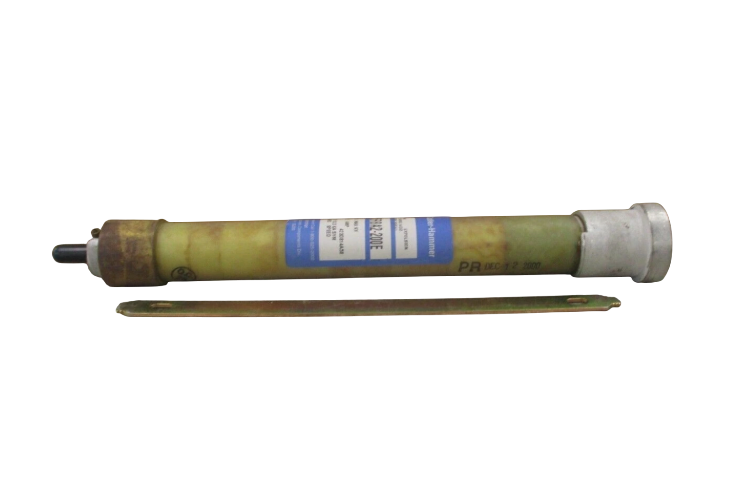

Eaton 38RBA4-40E is a medium voltage fuse refill designed for high-voltage circuit protection in industrial power distribution systems. It provides a 40A current rating and a 34.5kV voltage rating for reliable interruption of fault currents. The unit features a single-barrel, Class E construction with standard velocity and compact dimensions of 78.74 mm x 55.88 mm x 345.948 mm, weighing 3.23 lb. It is engineered to comply with IEEE Std. C37.41 and offers an interrupting rating of 16.8kA at 34.5kV, making it suitable for protecting transformers, motors, and feeders in utility and industrial medium-voltage applications.

Key Features & Specifications
  • Type: RBA4 medium voltage fuse refill, single-barrel construction
  • Voltage Rating: 34500V AC
  • Current Rating: 40A
  • Dimensions: 78.74 mm (Length/Depth) x 55.88 mm (Height) x 345.948 mm (Width)
  • Weight: 3.23 lb
  • Standards: IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • Class Rating: E
  • AIC rating: [email protected]
  • Barrels: 1
  • Velocity: Standard
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 78667015062
  • GTIN: 00786670150626
