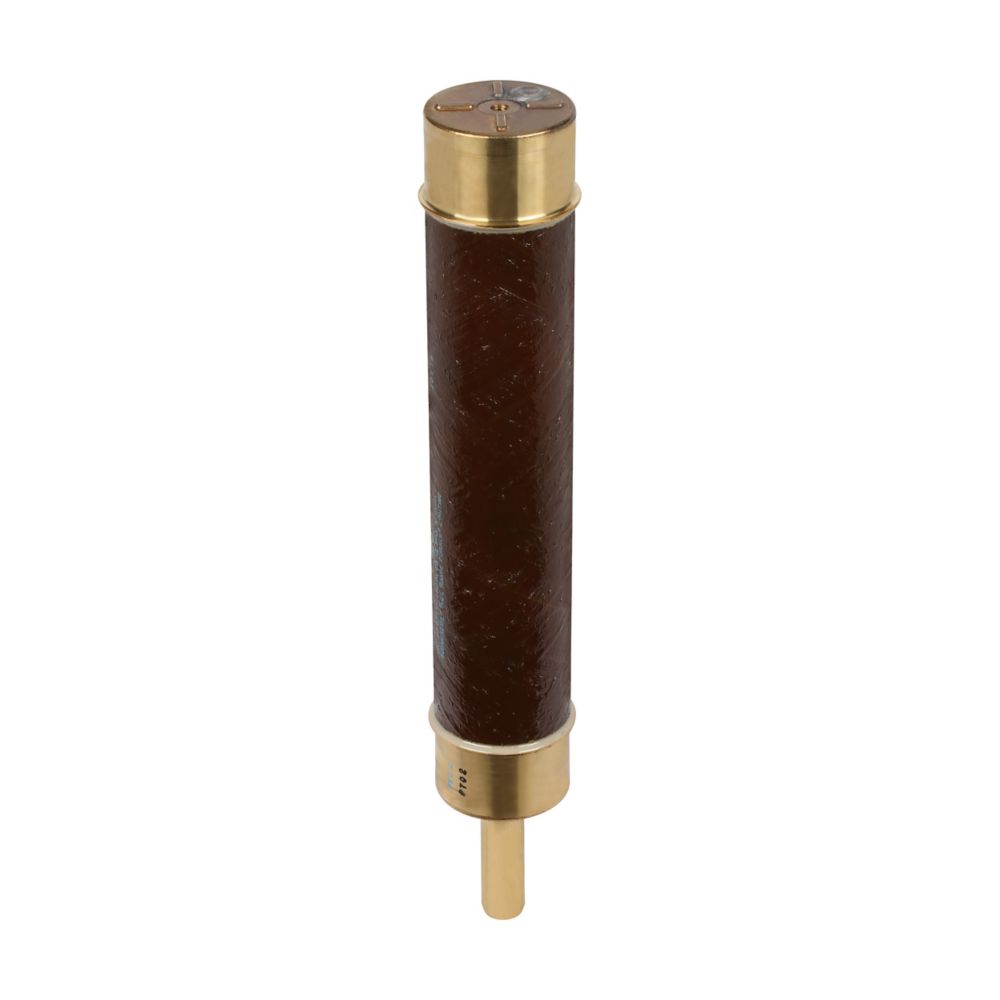

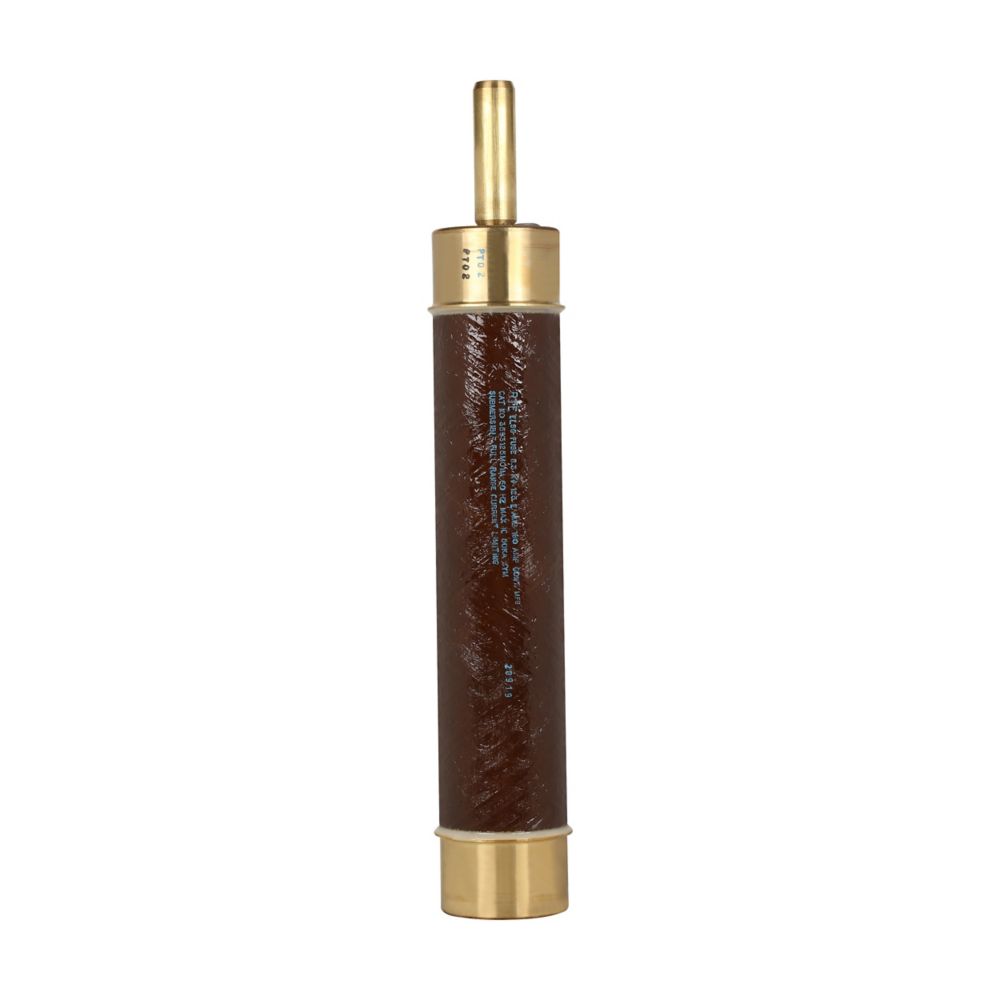

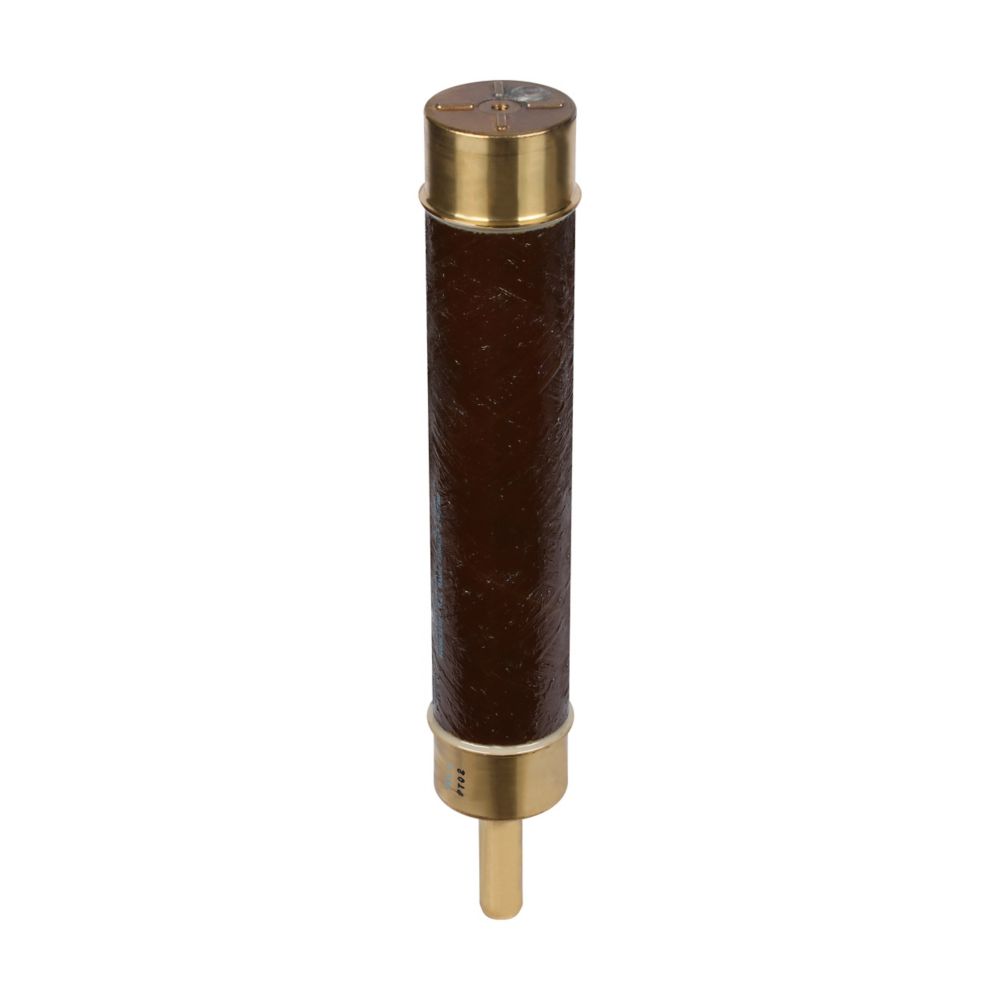

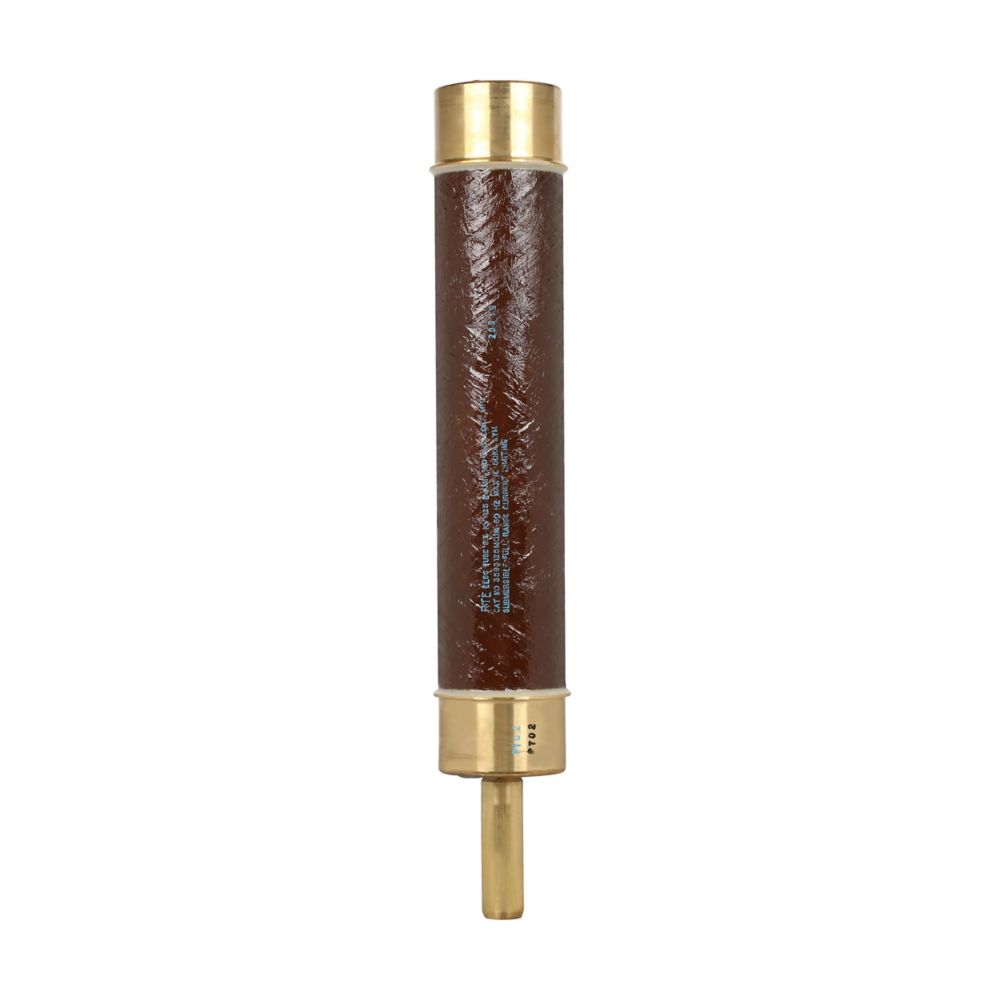

Eaton 3594080M01M is a current-limiting, full-range medium-voltage fuse designed for high-voltage circuit protection in industrial power distribution systems. It provides reliable overcurrent and short-circuit protection with a 15.5kV voltage rating and an 80A current rating, housed within a robust two-barrel wet well connection design for secure installation. The fuse features a 2.15-inch diameter and a Class E rating, ensuring precise interruption characteristics and compliance with stringent industry standards for medium-voltage applications. Its construction is engineered for demanding environments, making it suitable for protecting transformers, motors, and feeders in utility and industrial power networks.
Key Features & Specifications
Type: Current-limiting, full-range fuse, two-barrel construction with wet well connection
Voltage Rating: 15500V
Current Rating: 80A
Dimensions: 2.15 in diameter
Standards: Class E rating
Applications: Protection for transformers, motors, and feeders in industrial medium-voltage power systems
Section: Current limiting full range fuse
Connection: Wet Well
Barrels: 2
Class Rating: E
Item Subcategory: Medium Voltage
Weight: 5.8 lb
Product Identification
UPC: 194006033473
