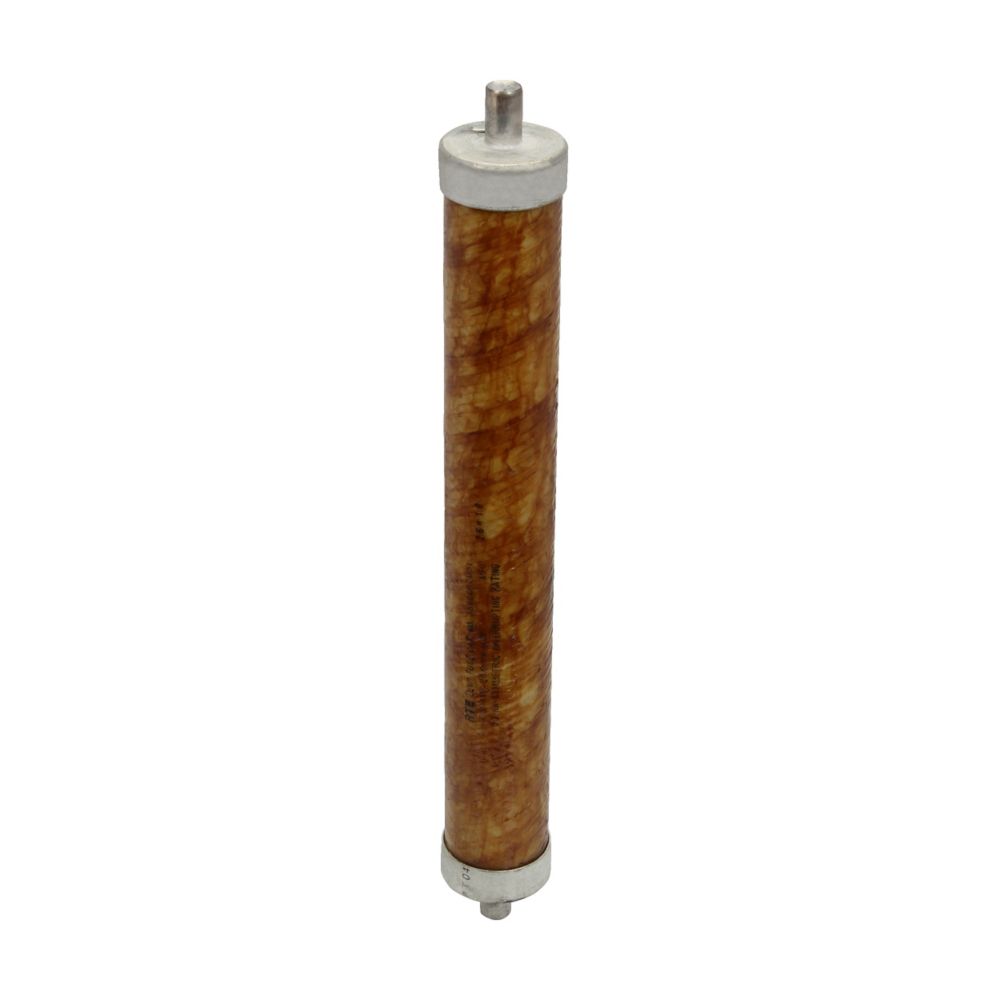

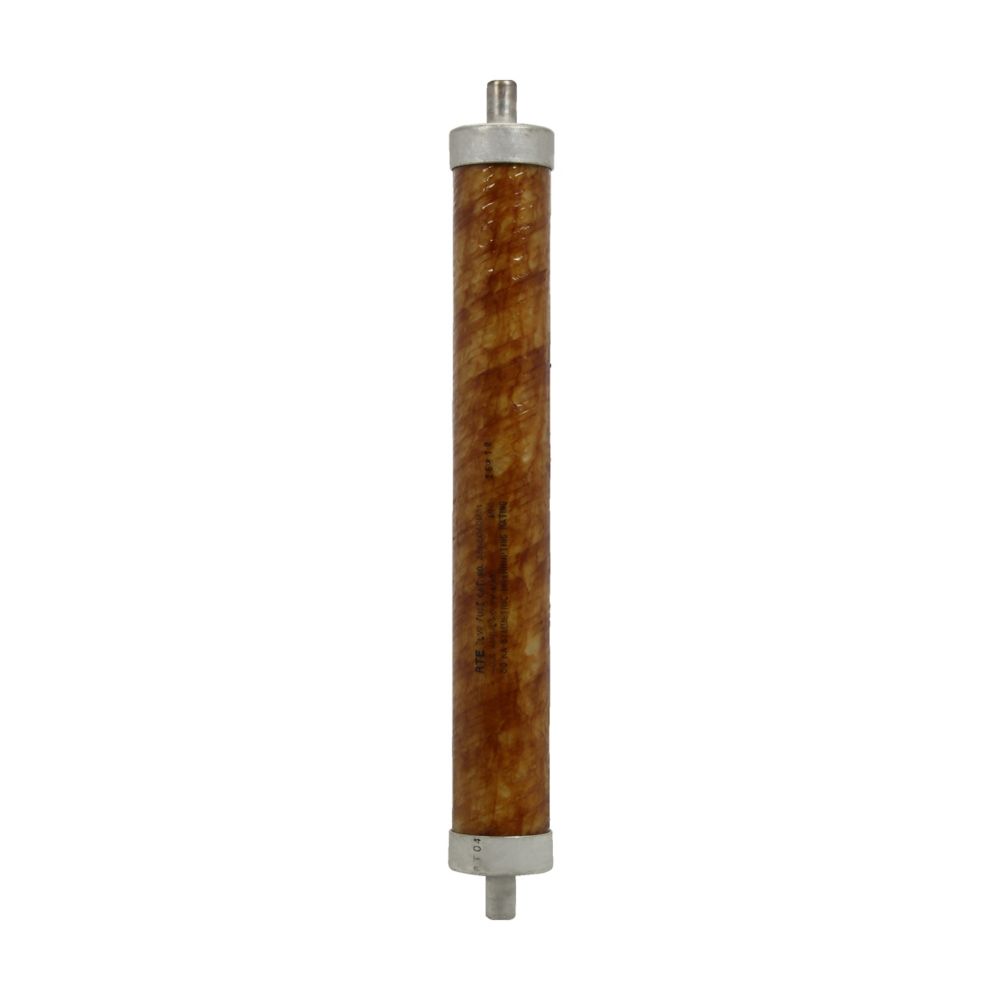

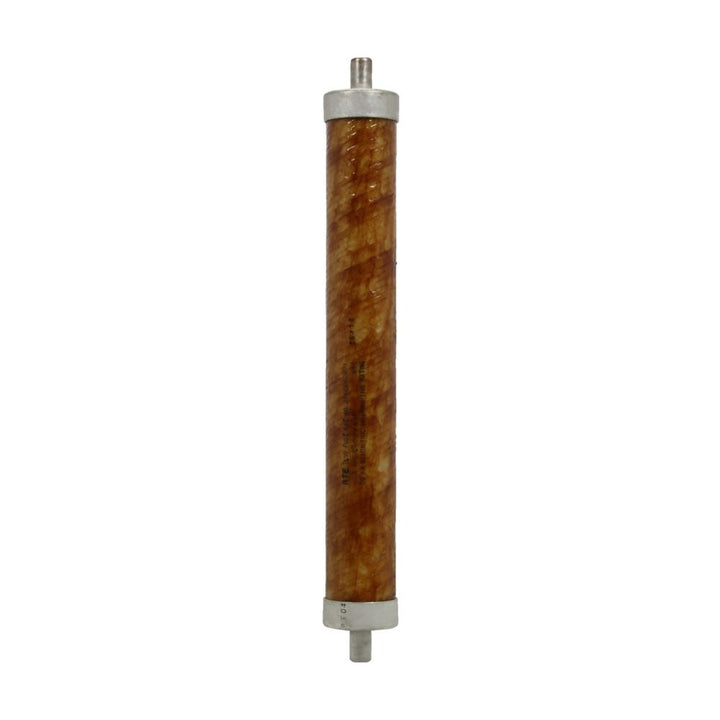

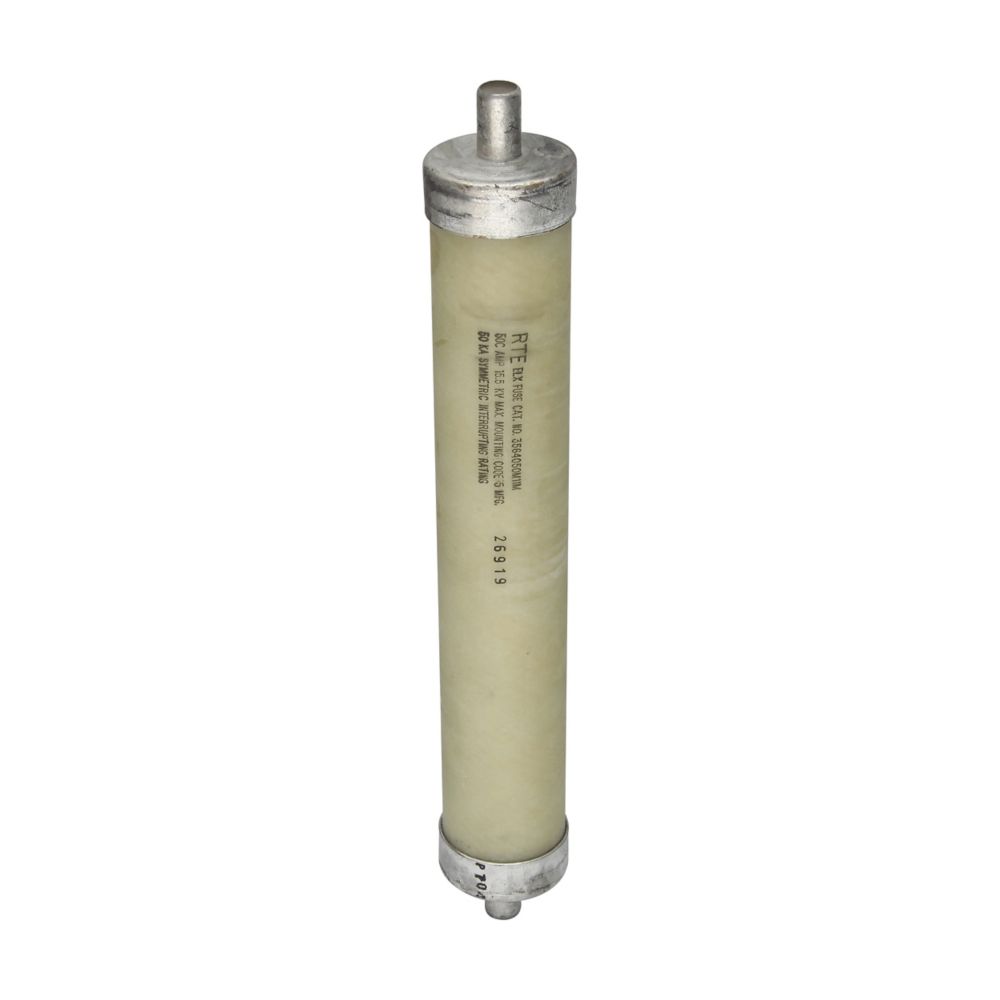

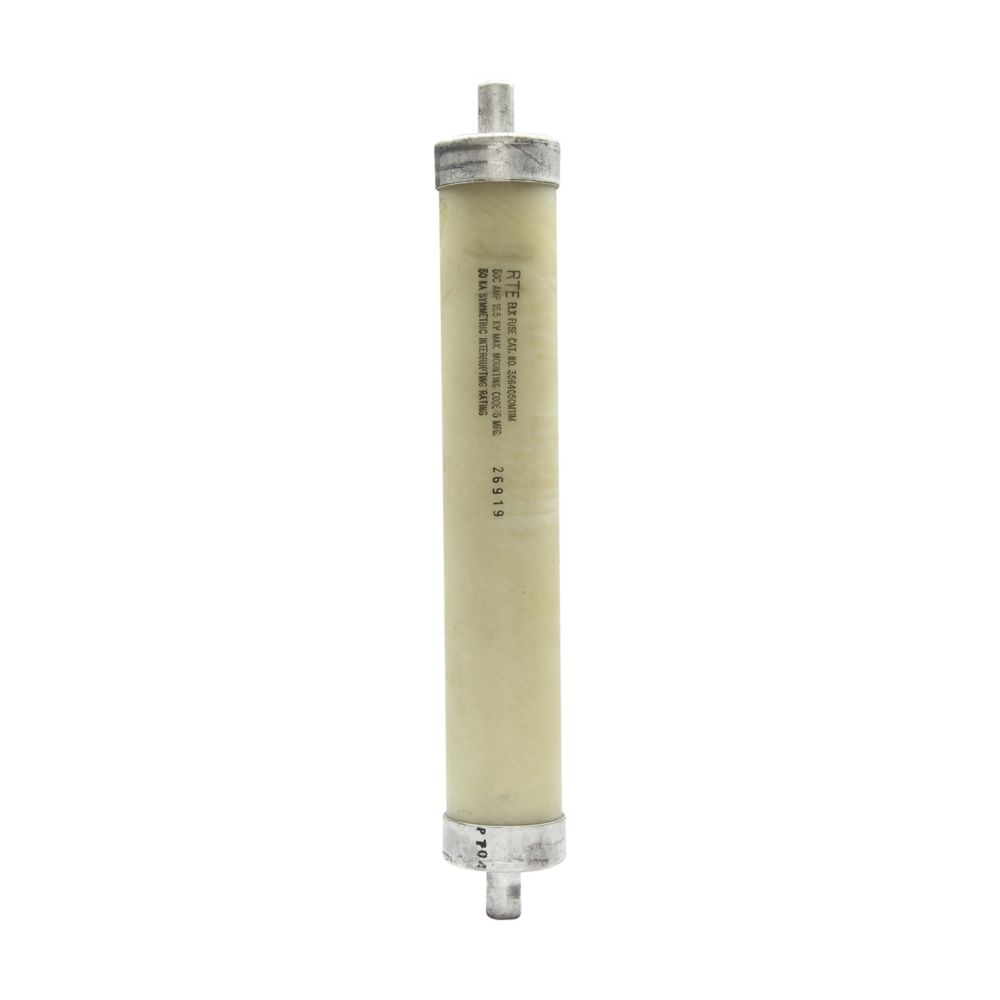

Eaton 3564030M11M - Medium Voltage Fuse 15.5kV 30A (Class C NX Connection)

Eaton 3564030M11M is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power distribution systems. It features a 15.5kV voltage rating and 30A current capacity with Class C interrupting capability for reliable fault protection. The fuse has a compact 2-inch diameter NX-style barrel construction with a robust 4 lb design for durable performance. It meets industry standards for medium-voltage applications, including ANSI/IEEE compliance. Typical applications include transformer protection, motor circuits, and feeder protection in utility and industrial power systems.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse with silver-sand element
• Voltage Rating: 15,500V AC
• Current Rating: 30A
• Dimensions: 2" diameter single-barrel design
• Standards: ANSI C37.46, IEEE 386
• Applications: Industrial power distribution, transformer protection
• Class Rating: C
• Connection: NX style
• Barrels: 1
• Weight: 4 lb
