Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

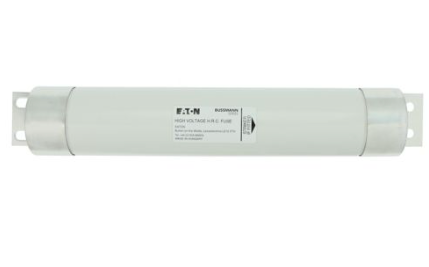

Bussmann 3.6WDOH6125 is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems up to 3600V. It features a 125A current rating and a high interrupting capacity of 50kA at 3.6kV, housed in a robust, single-barrel construction with bolt-in blade terminals for secure connection. The fuse is engineered to meet stringent industry standards for medium voltage protection, with compact physical dimensions of 192 mm x 51 mm x 51 mm and a weight of 2.53 lb. Its primary application is in switchgear, motor control centers, and transformer protection circuits where reliable overcurrent and short-circuit protection is critical.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, Single Barrel, Bolt-In Blade Connection
  • Voltage Rating: 3600V
  • Current Rating: 125A
  • Dimensions: 192 mm (L) x 51 mm (H) x 51 mm (W)
  • Weight: 2.53 lb
  • AIC Rating: 50kA @ 3.6kV
  • Connection: Bolt-In Blade
  • Barrels: 1


Product Identification
  • UPC: 05171261683
  • GTIN: 00051712616836
