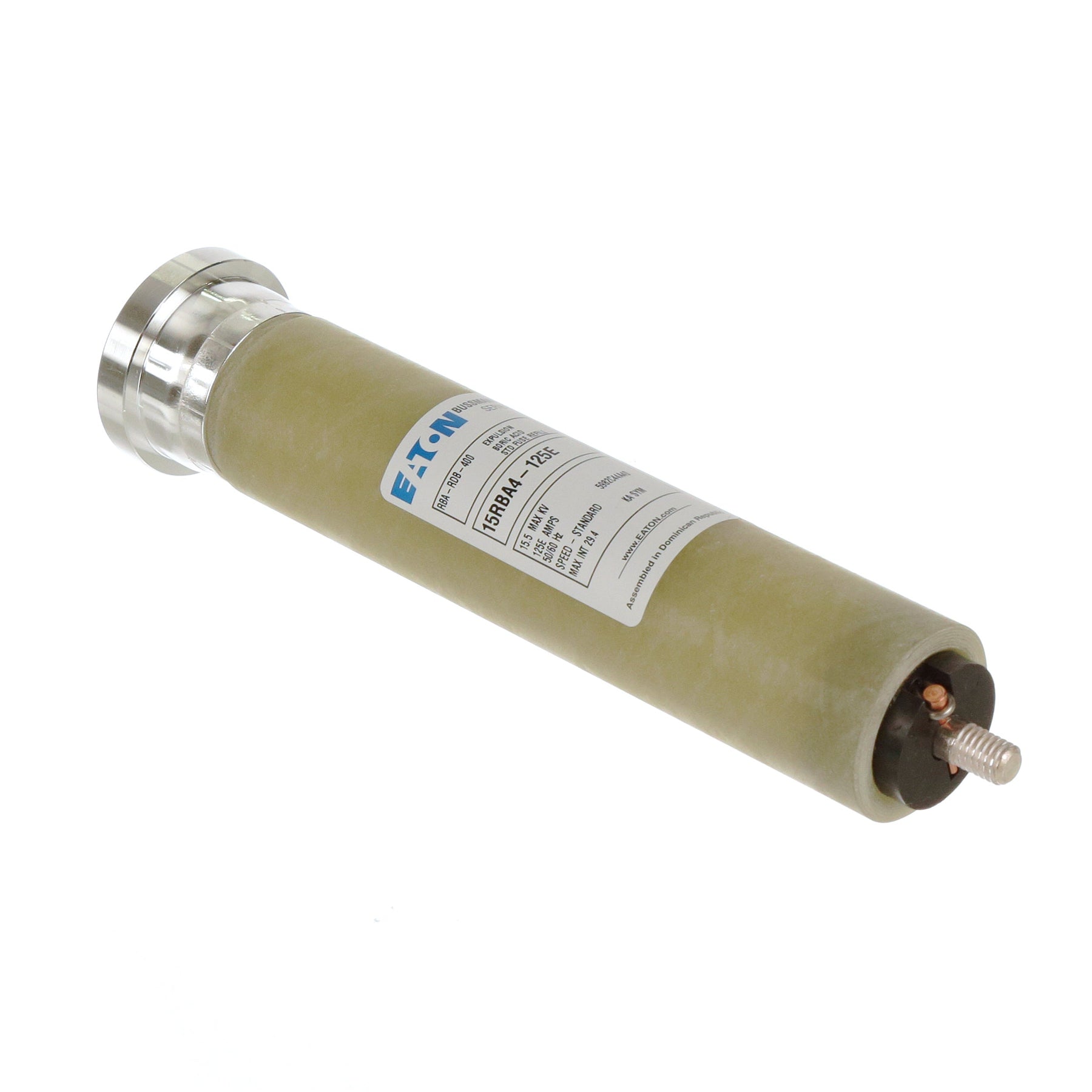

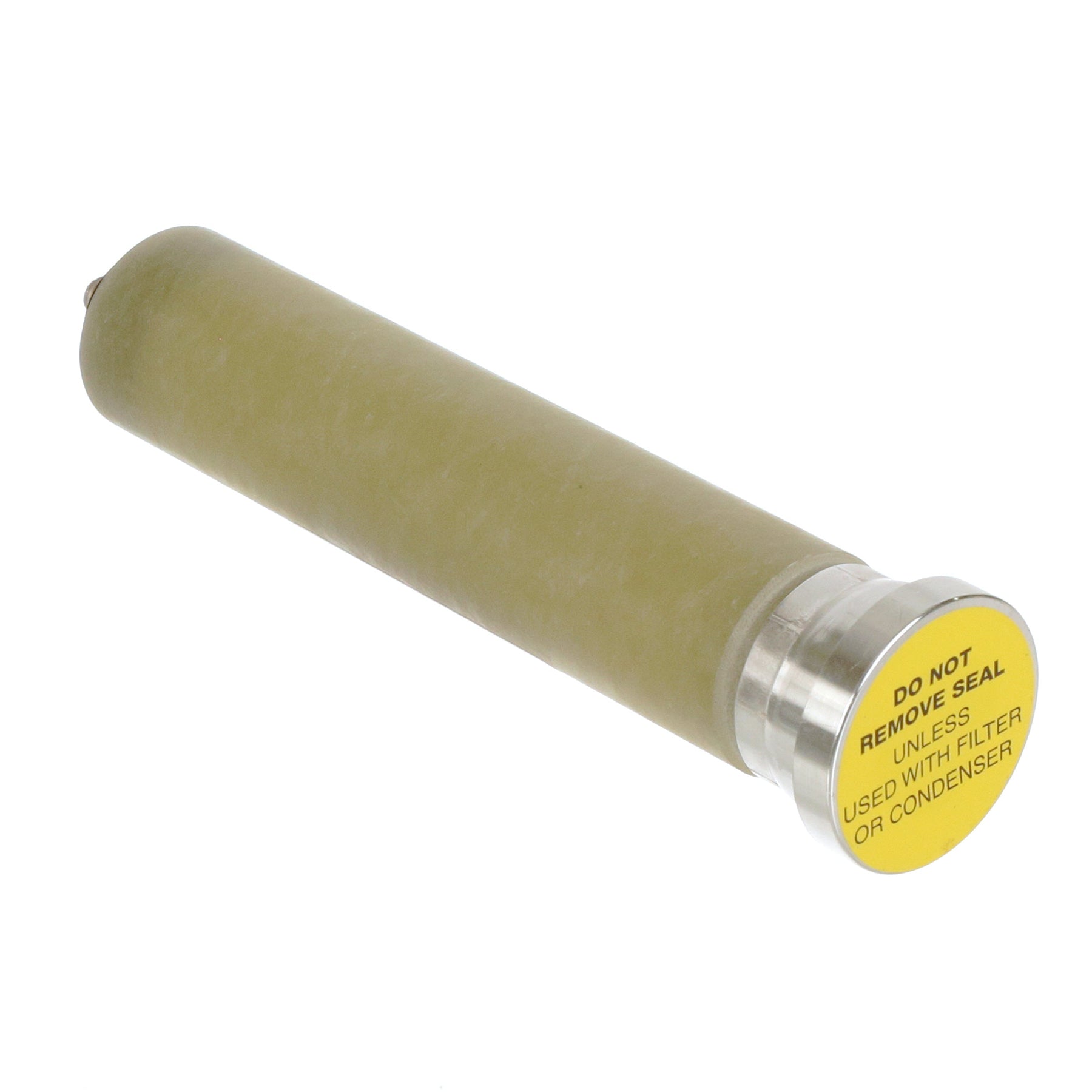

Eaton 15RBA4-125E - Medium Voltage Fuse Refill 125A 14.4kV

Price
Regular price $609.53
Regular price $499.00 Sale price $609.53
Save $-110.53
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Eaton 15RBA4-125E is a medium voltage current-limiting fuse refill designed for overcurrent protection in high-voltage industrial power distribution systems. It provides a 125A current rating and a 14.4kV voltage rating for robust circuit protection. The fuse features a single-barrel, Class E construction with standard velocity and measures 12.5 in x 2.5 in x 2.5 in with a weight of 2.02 lb. It is engineered to meet IEEE Std. C37.41 and offers an interrupting rating of 29.4kA at 14.4kV, ensuring reliable performance in demanding applications such as transformer protection, motor circuits, and feeder protection in utility and industrial settings.

Key Features & Specifications
  • Type: RBA4 medium voltage current-limiting fuse refill, single-barrel, Class E rating
  • Voltage Rating: 14400V
  • Current Rating: 125A
  • Dimensions: 12.5 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
  • Weight: 2.02 lb
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Transformer protection, motor circuits, and feeder protection in industrial power distribution
  • AIC rating: [email protected]
  • Family: RBA
  • Country of Origin: Dominican Republic
  • Velocity: Standard
  • Barrels: 1
  • Class Rating: E


Product Identification
  • UPC: 786670003502
  • GTIN: 00786670003502
