Eaton 15HLE-25E - Medium Voltage Fuse [email protected] (63kA AIC Rating)

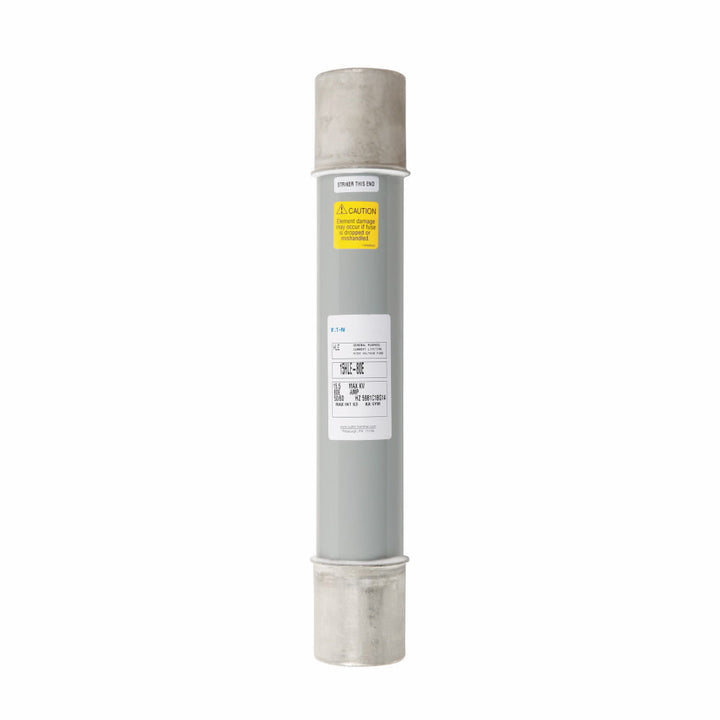

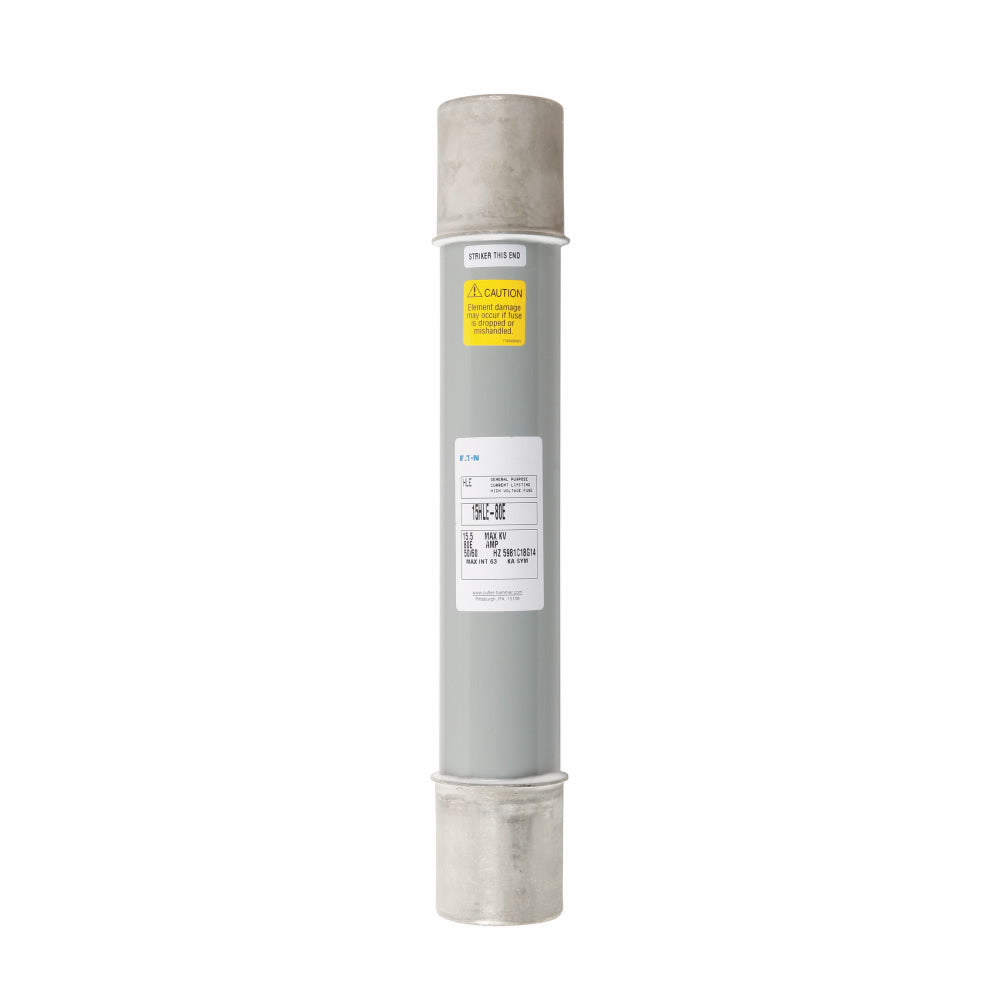

Eaton 15HLE-25E is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. Rated for 15.5kV with a 25A current capacity, this Class E fuse features a ferrule connection and single-barrel construction housed in a durable 18.9-inch cylindrical body with 3-inch diameter. Compliant with IEEE Std. C37.41, it delivers 63kA interrupting capacity for reliable protection in substations, transformers, and motor starter applications where high fault currents may occur.

Key Features & Specifications

• Type: HLE series current-limiting medium voltage fuse
• Voltage Rating: 15,500V AC
• Current Rating: 25A
• Dimensions: 18.9" L × 3" W × 3" H (480 × 76 × 76 mm)
• Weight: 8 lb (3.63 kg)
• Standards: IEEE Std. C37.41
• Applications: Transformer protection, motor starters, substations
• AIC rating: 63kA @ 15.5kV
• Connection: Ferrule
• Barrels: 1
• Class Rating: E
• Clip Center: 15 inches
• Diameter: 3 inches

Product Identification

• UPC: 786670002031
• GTIN: 00786670002031
