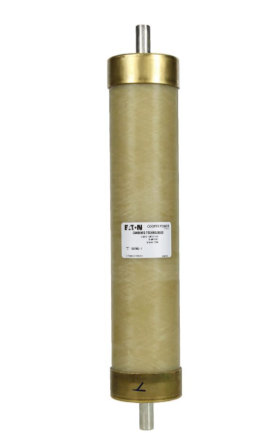

Eaton 15F125HD2B - Medium Voltage Fuse 15.5kV/125A (Special Connection)

Eaton 15F125HD2B is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 15.5kV voltage rating and 125A current rating, housed in a robust 3-inch diameter single-barrel construction with special connection terminals. The fuse meets stringent industry standards for medium-voltage applications, offering reliable protection for transformers, capacitors, and motor circuits in utility and industrial environments.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse with special connection
• Voltage Rating: 15,500V AC
• Current Rating: 125A
• Dimensions: 3" diameter single-barrel design
• Weight: 9 lb
• Standards: IEEE C37.40-2003 for medium-voltage fuses
• Applications: Transformer protection, capacitor banks, motor circuits
• Connection: Special terminal configuration
• Barrels: 1
• Item Subcategory: Medium Voltage Fuse
