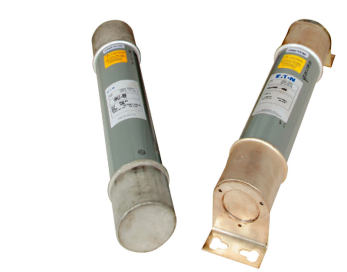

Eaton 15CLE-125E-D - Medium Voltage Fuse 15.5kV 125A (63kA AIC)
Regular price
$3,711.55
$3,711.55
Regular price
Sale price
$3,711.55
$3,711.55
Save $-3,711.55
/
- In stock, ready to ship
- Backordered, shipping soon
Eaton 15CLE-125E-D is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 15.5kV voltage rating and 125A current rating with a 63kA interrupting capacity at rated voltage, housed in a compact 3-inch diameter ferrule-connected design with dual barrels. The Class E-rated fuse meets stringent industry standards for medium-voltage applications, including switchgear and transformer protection. Its 20-inch clip center spacing and 30 lb weight ensure robust mechanical integration in demanding environments.
Key Features & Specifications
Key Features & Specifications
- Type: Current-limiting medium-voltage fuse with ferrule connection
- Voltage Rating: 15,500V AC
- Current Rating: 125A
- Dimensions: 3" diameter, 20" clip center spacing
- Standards: Class E rating
- Applications: Industrial switchgear, transformer protection
- AIC rating: [email protected]
- Connection: Ferrule
- Barrels: 2
- Weight: 30 lb
- Family: CLE series
- UPC: 05171275070
- GTIN: 00051712750707
