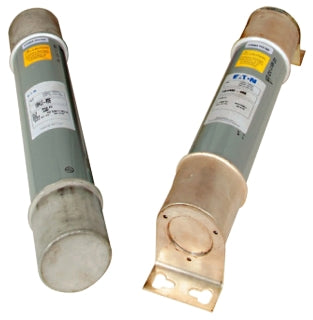

Bussmann 15BHCL-300E - Medium Voltage Current-Limiting Fuse 300A (15kV, 50kA AIC)
Regular price
$0.00
$0.00
Regular price
$5,593.34
$5,593.34
Sale price
$0.00
$0.00
Save $5,593.34
/
- In stock, ready to ship
- Backordered, shipping soon
Bussmann 15BHCL-300E is a medium voltage current-limiting fuse designed for high-capacity circuit protection in industrial power systems. It features a 15kV voltage rating and 300A current rating with a 50kA interrupting capacity at 15.5kV for reliable fault protection. The fuse construction includes a dual-barrel design with bolt-on connections and measures 6.56 inches in length, 13.03 inches in height, and 5.53 inches in width with a 3-inch diameter. Certified to IEEE Std. C37.41 standards, this Class E fuse is engineered for demanding applications including motor control centers, transformers, and switchgear protection in medium voltage distribution networks.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Medium voltage current-limiting fuse, dual-barrel construction
- Voltage Rating: 15,000V
- Current Rating: 300A
- Dimensions: 6.56" L × 13.03" H × 5.53" W
- Standards: IEEE Std. C37.41
- Applications: Motor control centers, transformers, switchgear protection
- AIC rating: [email protected]
- Connection: Bolt-On
- Barrels: 2
- Class Rating: E
- Diameter: 3 inches
- Weight: 1 lb
- Family: BHCL Series
- Country of Origin: Dominican Republic
Product Identification
- UPC: 786685423517
- GTIN: 00051712526005
Quote Request
