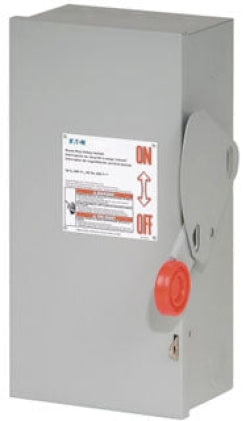

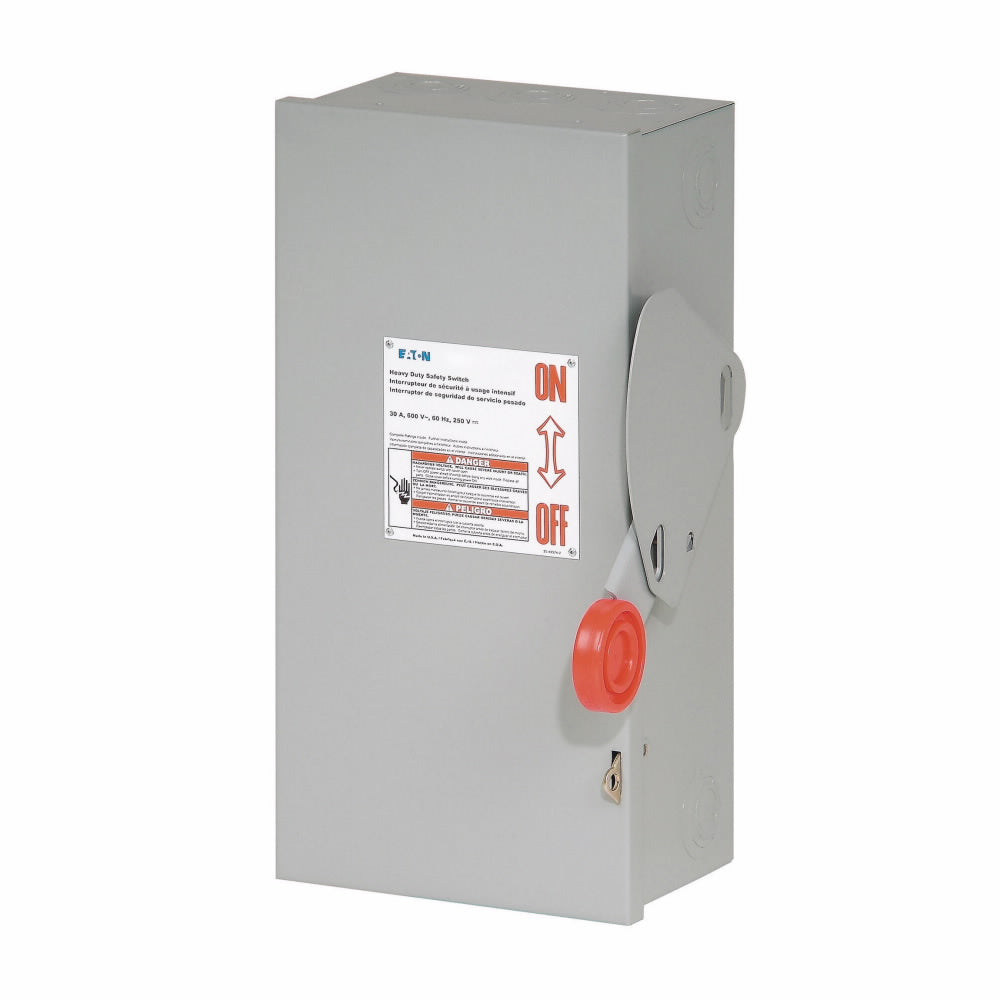

Cutler Hammer DH222NGK - Fusible Disconnect Switch 60A 240V (100kA AIC Rating)

The Cutler Hammer DH222NGK is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. It features a 240V AC voltage rating with 60A current capacity and 100kA interrupting rating at 240V for robust fault protection. The switch is constructed with a NEMA 1 enclosure measuring 9.12 x 16.5 x 8.31 inches (WxDxH) and weighs 17 lb, featuring a 2-pole single configuration with Class R fuse compatibility. This unit meets CSA and UL certifications while complying with NEC 230.62(C) barrier requirements for safety. Typical applications include industrial control panels, motor control centers, and electrical distribution systems where secure isolation is critical.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series, 2-pole single configuration
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 9.12 in x 16.5 in x 8.31 in (WxDxH)
• Standards: CSA Certified, UL Listed, NEC 230.62 (C) Compliant Barrier
• Applications: Industrial control panels, motor control centers, electrical distribution systems
• Switch Type: Disconnect
• Configuration: Single
• Poles: 2
• AIC rating: 100kA@240V
• Switch Style: Fusible
• Nema Rating: NEMA 1
• Phase: 1
• Fuse Class: R
• Weight: 17 lb
• Compatible Frames: SKHA
• Country of Origin: United States

Product Identification

• UPC: 782113205779
• GTIN: 00782113205779
