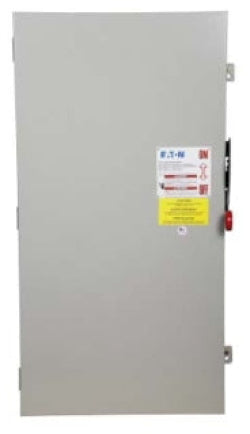

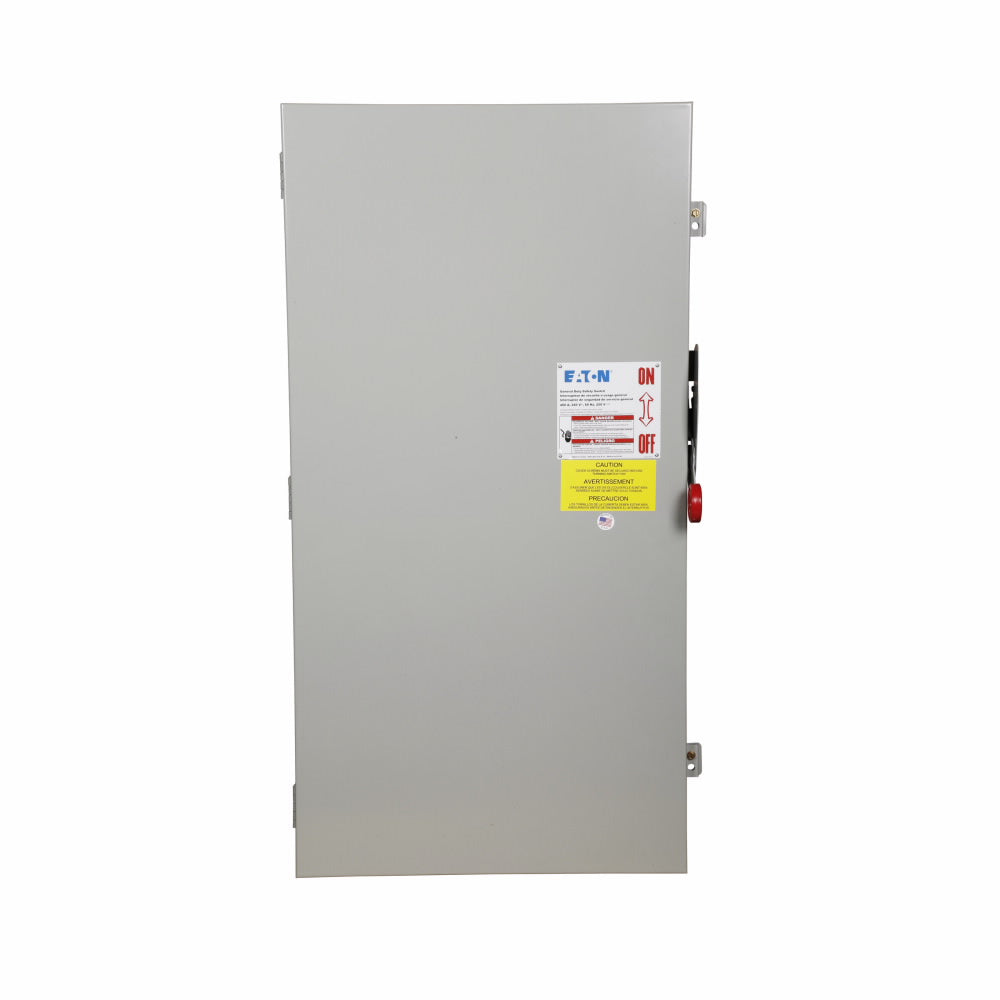

Cutler Hammer DG325UGK - Non-Fusible Disconnect Switch 400A 3-Pole (240V, 100kA AIC)

Cutler Hammer DG325UGK is a heavy-duty disconnect switch designed for industrial power distribution system isolation and safety. This 3-pole, 400A rated switch operates at 240V AC with a 100kA interrupting capacity, providing robust circuit protection in demanding environments. The unit features a compact NEMA 1 enclosure measuring 16" W x 7.27" D x 44.74" H and weighs 95 lb, constructed with UL Listed compliance including NEC 230.62(C) barrier requirements. Certified for industrial safety standards, this non-fusible disconnect is engineered for three-phase power systems and compatible with TKM frames, making it suitable for industrial control panels, manufacturing equipment, and heavy machinery applications where reliable power isolation is critical.

Key Features & Specifications

• Type: Non-fusible disconnect switch, DG Series, industrial grade
• Voltage Rating: 240V AC
• Current Rating: 400A
• Dimensions: 16" W x 7.27" D x 44.74" H
• Standards: UL Listed, NEC 230.62(C) Compliant Barrier
• Applications: Industrial power distribution, machinery control, manufacturing systems
• Switch Type: Non-Fusible
• Configuration: Single
• Poles: 3
• AIC rating: 100kA@240V
• Nema Rating: NEMA 1
• Phase: 3
• Compatible Frames: TKM
• Weight: 95 lb
• Country of Origin: United States

Product Identification

• UPC: 782113589534
• GTIN: 00782113589534
