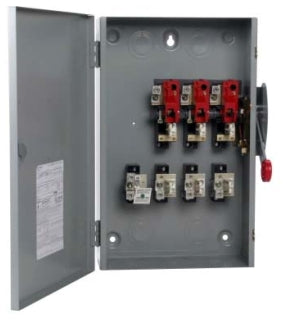

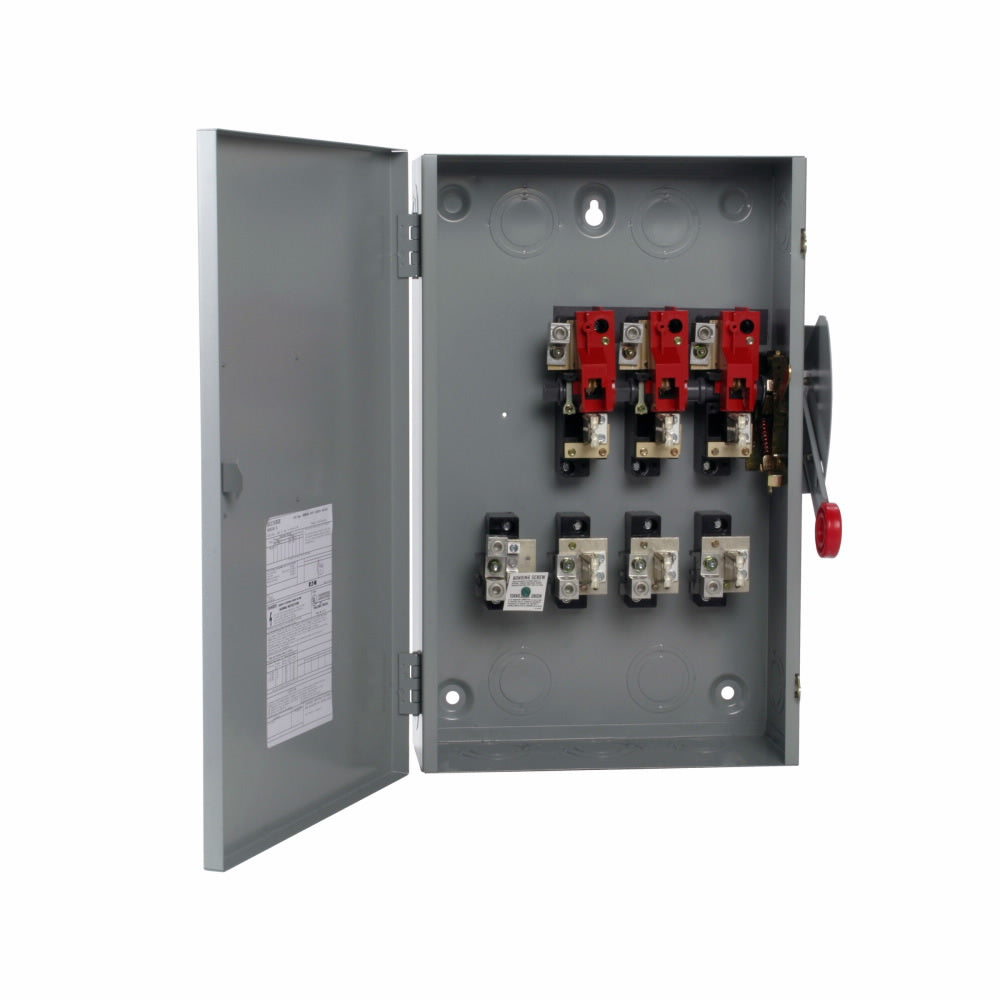

Cutler Hammer DG324NGK - Fusible Disconnect Switch 200A 3-Pole (100kA AIC @240V)

Cutler Hammer DG324NGK is a fusible safety disconnect switch designed for industrial circuit protection and isolation. The switch operates at 240V AC with a 200A current rating and features a 100kA interrupting capacity at 240V for reliable fault protection. Constructed with a NEMA 1 enclosure measuring 16" x 11.25" x 24.75" (WxDxH) and weighing 48 lb, this three-phase unit accommodates Class R fuses in a single configuration. It complies with UL standards and NEC 230.62(C) barrier requirements, ensuring safe operation in industrial environments. Typical applications include motor control centers, industrial machinery, and power distribution systems where visible disconnect and overload protection are critical.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DG Series
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 16 in x 11.25 in x 24.75 in (WxDxH)
• Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
• Applications: Industrial machinery, motor control centers, power distribution
• Switch Type: Disconnect
• Configuration: Single
• Phase: 3
• AIC Rating: 100kA@240V
• Poles: 3
• Fuse Class: R
• NEMA Rating: NEMA 1
• Compatible Frames: THKM
• Weight: 48 lb
• Country of Origin: United States

Product Identification

• UPC: 782113213538
• GTIN: 00782113213538
