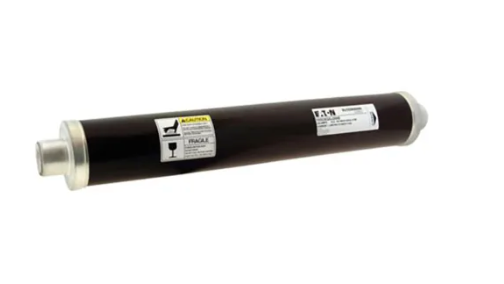

Bussmann 155GXQSJ200ES - Medium Voltage Fuse 200A (15.5kV, 65kA AIC)

Bussmann 155GXQSJ200ES is a medium voltage fuse designed for high-voltage circuit protection in industrial power systems. This Class E fuse operates at 15.5kV with a 200A current rating and provides 65kA interrupting capacity at 15.5kV for reliable fault protection. The fuse features a single-barrel construction with DIN connection interface and measures 442mm x 76mm x 76mm with 89mm diameter, weighing 11.5 lb for robust industrial applications. It complies with industry standards for medium voltage protection requirements. Typical applications include industrial power distribution, motor protection, and transformer circuits where high-voltage interruption capability is critical.

Key Features & Specifications

• Type: Medium Voltage Fuse, Class E, single-barrel construction
• Voltage Rating: 15,500V AC
• Current Rating: 200A
• Dimensions: 442 mm x 76 mm x 76 mm (Height x Length x Width)
• Diameter: 89 mm
• Weight: 11.5 lb
• Connection: DIN
• Barrels: 1
• AIC Rating: [email protected]
• Class Rating: E
• Standards: Industry standard medium voltage fuse compliance
• Applications: Industrial power distribution, motor protection, transformer circuits

Product Identification

• UPC: 051712540353
