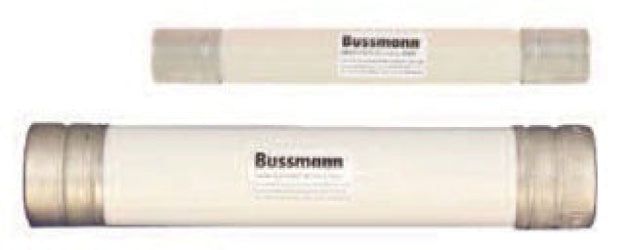

Bussmann 15.5CAV2E - Medium Voltage Fuse 2A (15.5kV, 80kA AIC)

The Bussmann 15.5CAV2E is a medium voltage current-limiting fuse from the CAV family designed to provide reliable overcurrent protection in high-voltage electrical systems. It features a 2A current rating and a 15.5kV voltage rating, capable of interrupting faults with an 80kA AIC rating at its rated voltage. The fuse is constructed with a single-barrel design, measures 1.63 inches in diameter with a 1.2-inch clip center, and has a robust build weighing 2 lb. It complies with Class E standards, ensuring consistent performance for industrial power distribution, motor circuits, and transformer protection applications.

Key Features & Specifications

• Type: CAV, Medium Voltage Current-Limiting Fuse, Single Barrel
• Voltage Rating: 15500V AC
• Current Rating: 2A
• Dimensions: 1.63" Diameter, 1.2" Clip Center
• Standards: Class E
• Applications: Industrial Power Distribution, Motor Protection, Transformer Circuits
• AIC rating: [email protected]
• Barrels: 1
• Weight: 2 lb

Product Identification

• UPC: 051712831123
• GTIN: 00051712831123
