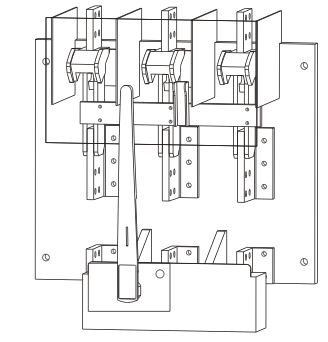

Boltswitch VL3611ST - Fusible Safety Switch 600V/2500A (200kA AIC @480V)
Regular price
$18,577.52
$18,577.52
Regular price
$2,575.00
$2,575.00
Sale price
$18,577.52
$18,577.52
Save $-16,002.52
/
- Low stock - 5 items left
- Backordered, shipping soon
Boltswitch VL3611ST is a heavy-duty fusible safety switch designed for high-current industrial power distribution systems. This 600V-rated bolted pressure switch delivers 2500A continuous current capacity with a 200kA interrupting rating at 480V for robust short-circuit protection. The NEMA 1-rated enclosure houses a 3-pole single-configuration mechanism with Class L fuse compatibility, constructed with industrial-grade components weighing 250 lb for durability. Compliant with UL and ANSI standards, this VL Series switch is engineered for main disconnects, motor control centers, and other critical 3-phase applications requiring reliable circuit isolation.
Key Features & Specifications
Key Features & Specifications
- Type: Bolted pressure switch, fusible design, VL Series
- Voltage Rating: 600V AC
- Current Rating: 2500A
- Configuration: Single
- Poles: 3
- AIC Rating: 200kA@480V
- Fuse Class: L
- NEMA Rating: 1
- Phase: 3
- Weight: 250 lb
- Standards: UL/ANSI compliant
- Applications: Industrial power distribution, motor control centers, main disconnects
