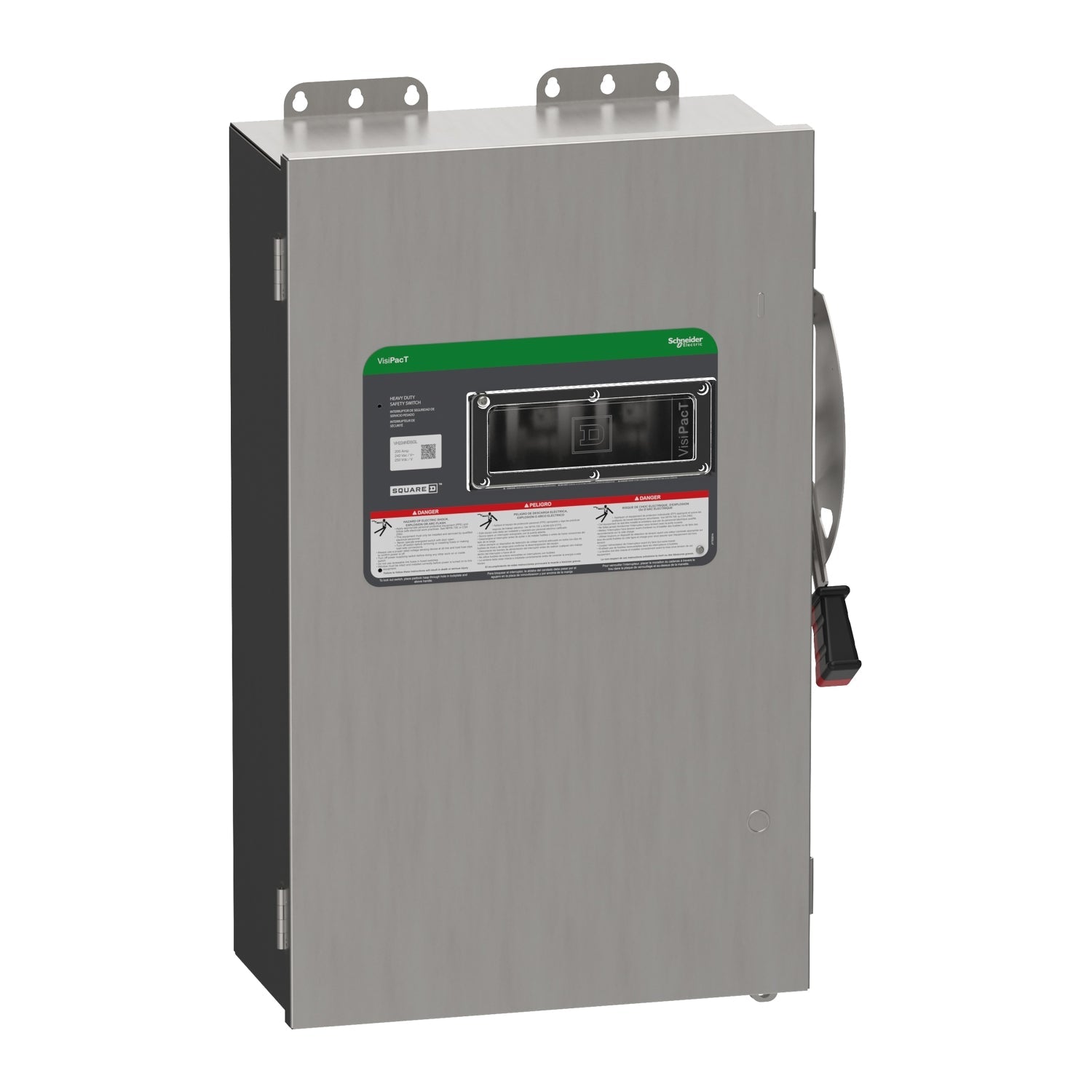

Square D VHU364SSGL - Non-Fusible Disconnect Switch 600V AC/DC 200A (NEMA 4X 3-Pole)

Square D VHU364SSGL is a heavy-duty industrial disconnect switch designed for safe electrical isolation in demanding environments. This non-fusible switch features a 600V AC/DC voltage rating and a 200A current rating, providing reliable circuit interruption capabilities. Constructed with a robust NEMA 4X enclosure measuring 17½ x 29 inches and weighing 57.1 lb, it accommodates wire sizes from AWG 6 to 250 kcmil for both aluminum and copper conductors. The switch complies with UL standard E2875 and EU RoHS certification, ensuring adherence to industry safety and environmental standards. Its 3-pole, 3-phase configuration operates effectively across a wide temperature range from -25°C to 70°C, making it suitable for industrial power distribution systems, manufacturing facilities, and commercial electrical applications where dependable disconnecting means are required.

Key Features & Specifications

• Type: Non-fusible disconnect switch, heavy-duty industrial construction
• Voltage Rating: 600V AC/DC
• Current Rating: 200A
• Dimensions: 17½ x 29 inches
• Standards: UL listed file E2875, EU RoHS compliant
• Applications: Industrial power distribution, manufacturing facilities, commercial electrical systems
• Switch Type: Non-Fusible
• Configuration: Single
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Shipping Dimensions: 17½ x 29 inches
• Phase: 3-phase
• Voltage: 600V AC/DC
• Amperage: 200A
• Connection: 3-wire
• Poles: 3
• Nema Rating: NEMA 4X

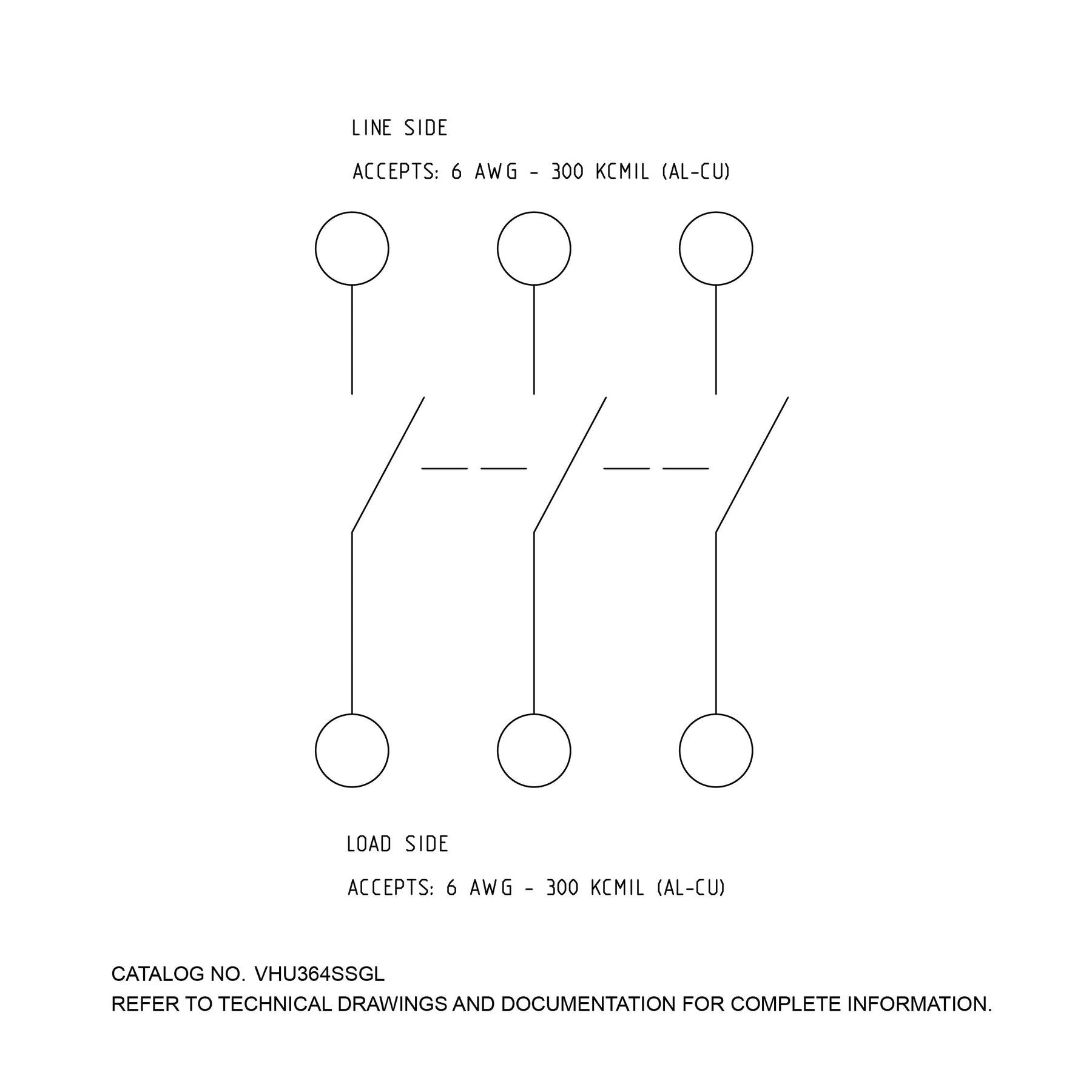

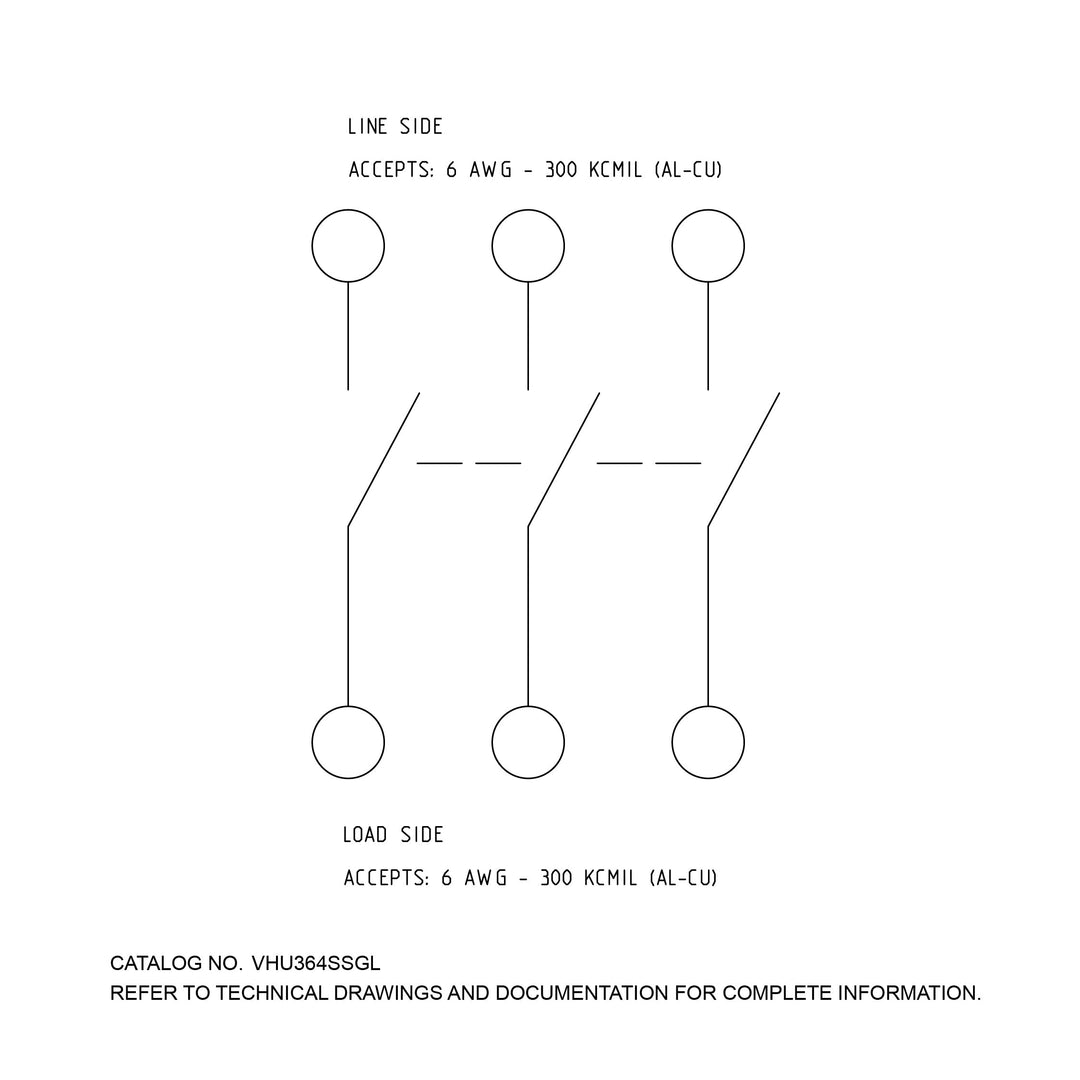

• Wire Size: AWG 6 to 250 kcmil, Aluminum/Copper
• Certification: EU RoHS, UL listed file E2875
• Standards: UL E2875
• Country of Origin: United States
• Weight: 57.1 lb

Product Identification

• UPC: 060648589497
• GTIN: 03606485894973
