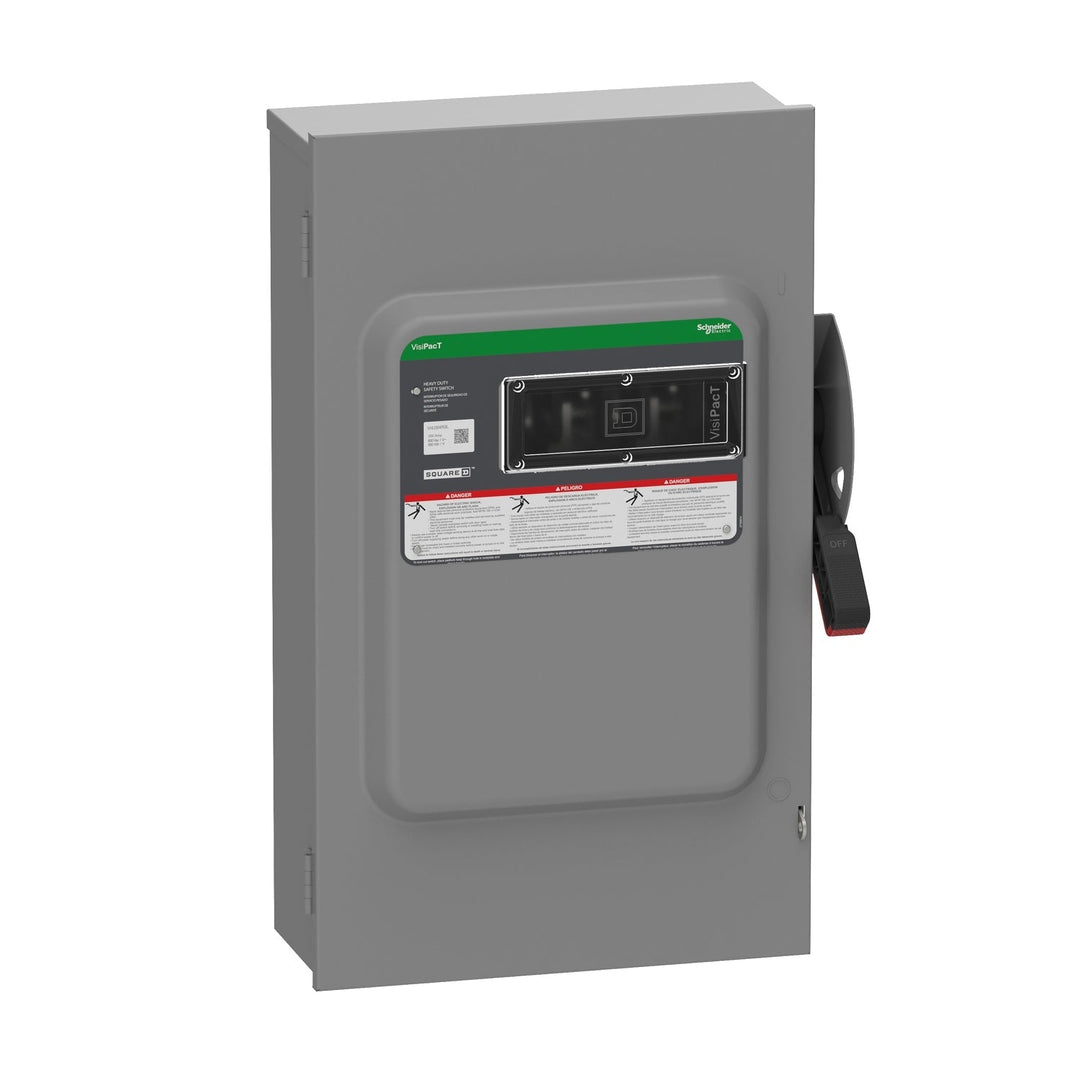

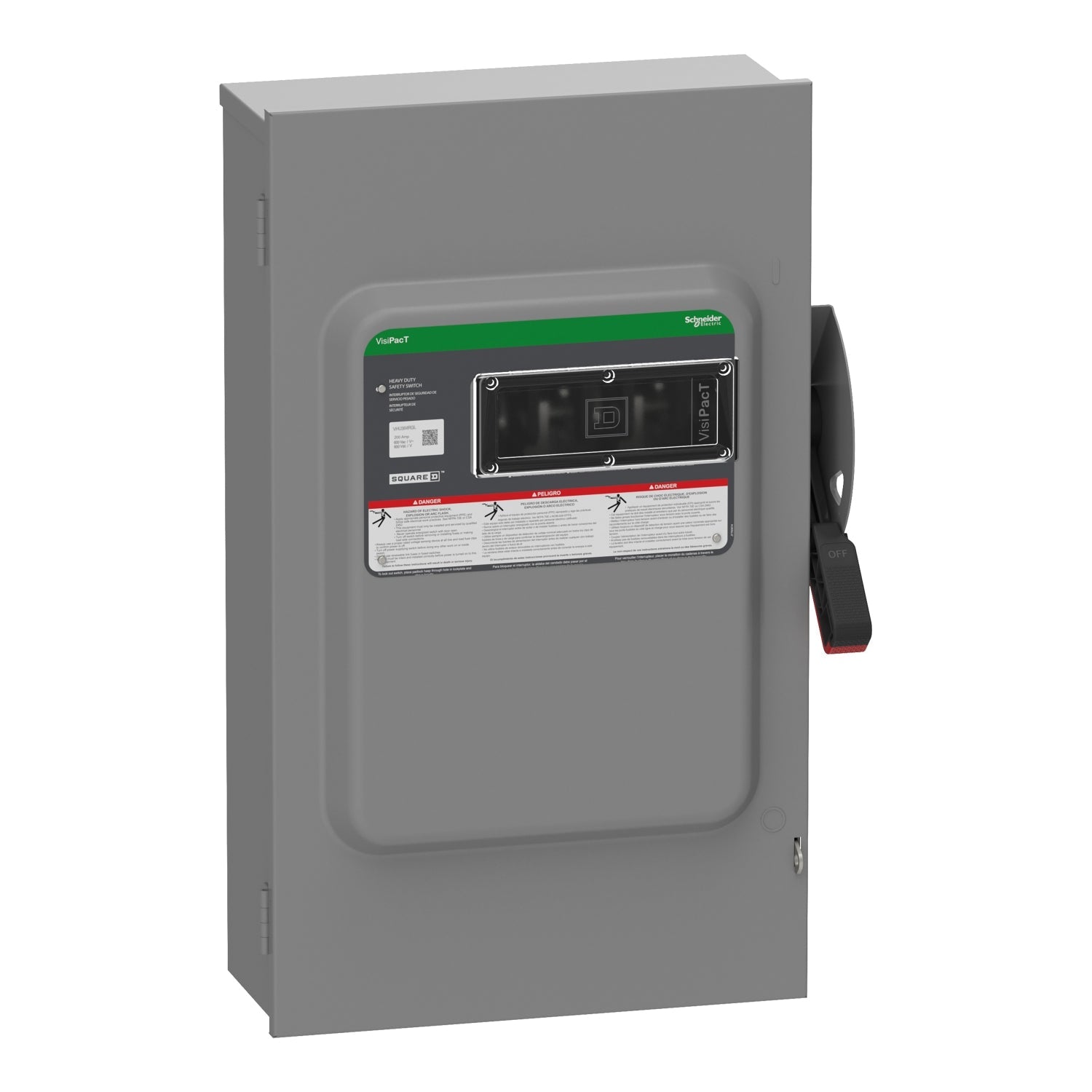

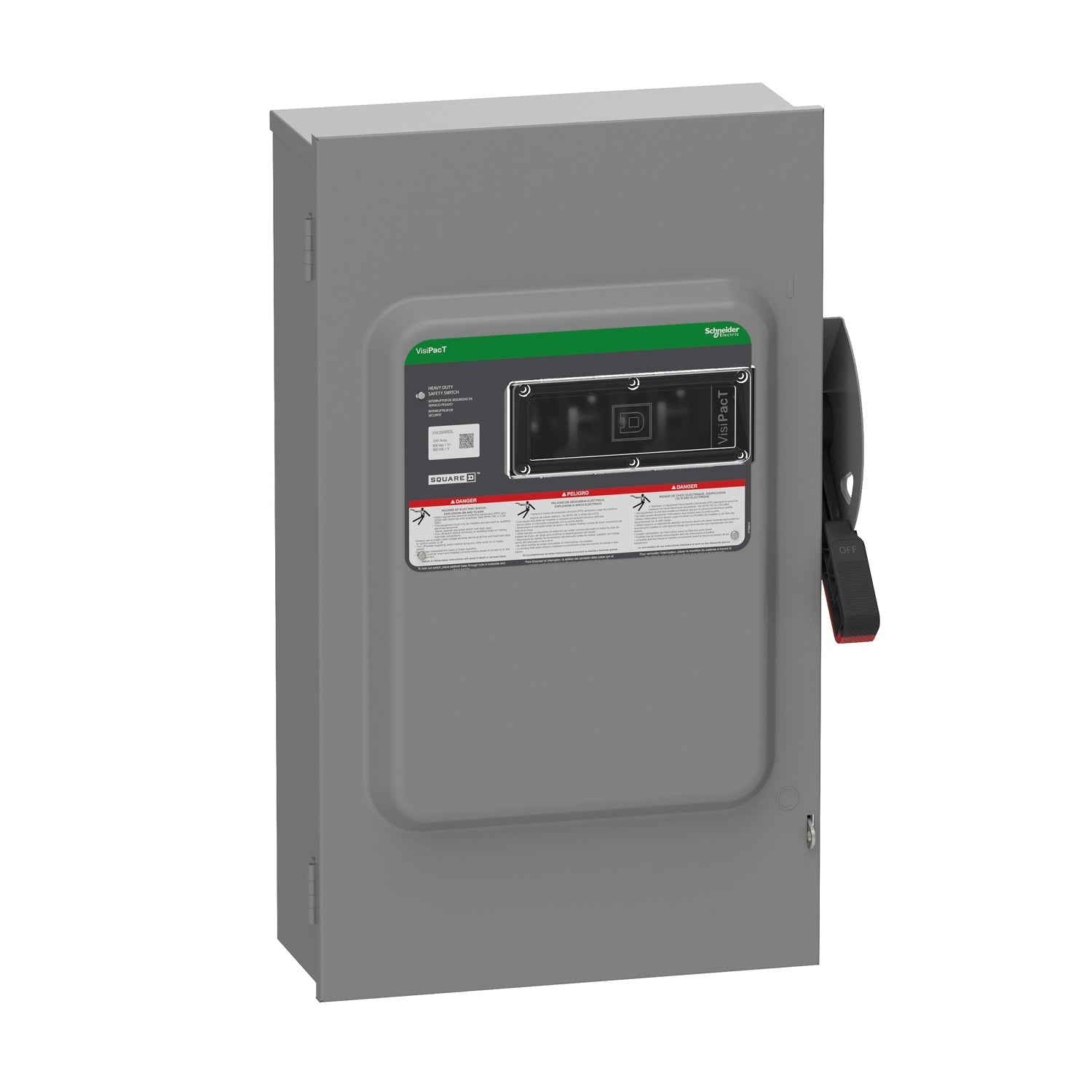

Square D VHU364RGL - Non-Fusible Disconnect Switch 600V/200A (3-Pole NEMA 3R)

Square D VHU364RGL is a non-fusible disconnect switch designed for safe electrical isolation in industrial power distribution systems. This 3-pole switch handles 600V AC voltage with a 200A current rating, housed in a NEMA 3R-rated enclosure measuring 734.06mm (H) x 112.78mm (W) x 78.49mm (D) and weighing 54.45 lb. UL-listed (file E3066) for compliance, it features a single-configuration design with 3-wire termination for three-phase circuits, providing reliable service disconnect functionality in commercial and industrial applications.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 734.06mm H x 112.78mm W x 78.49mm D (28.9" x 4.44" x 3.09")
• Standards: UL listed (file E3066)
• Applications: Industrial power distribution, equipment isolation
• Configuration: Single
• Poles: 3
• Phase: 3
• NEMA Rating: 3R
• Wire: 3
• Weight: 54.45 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589499
• GTIN: 03606485894997
