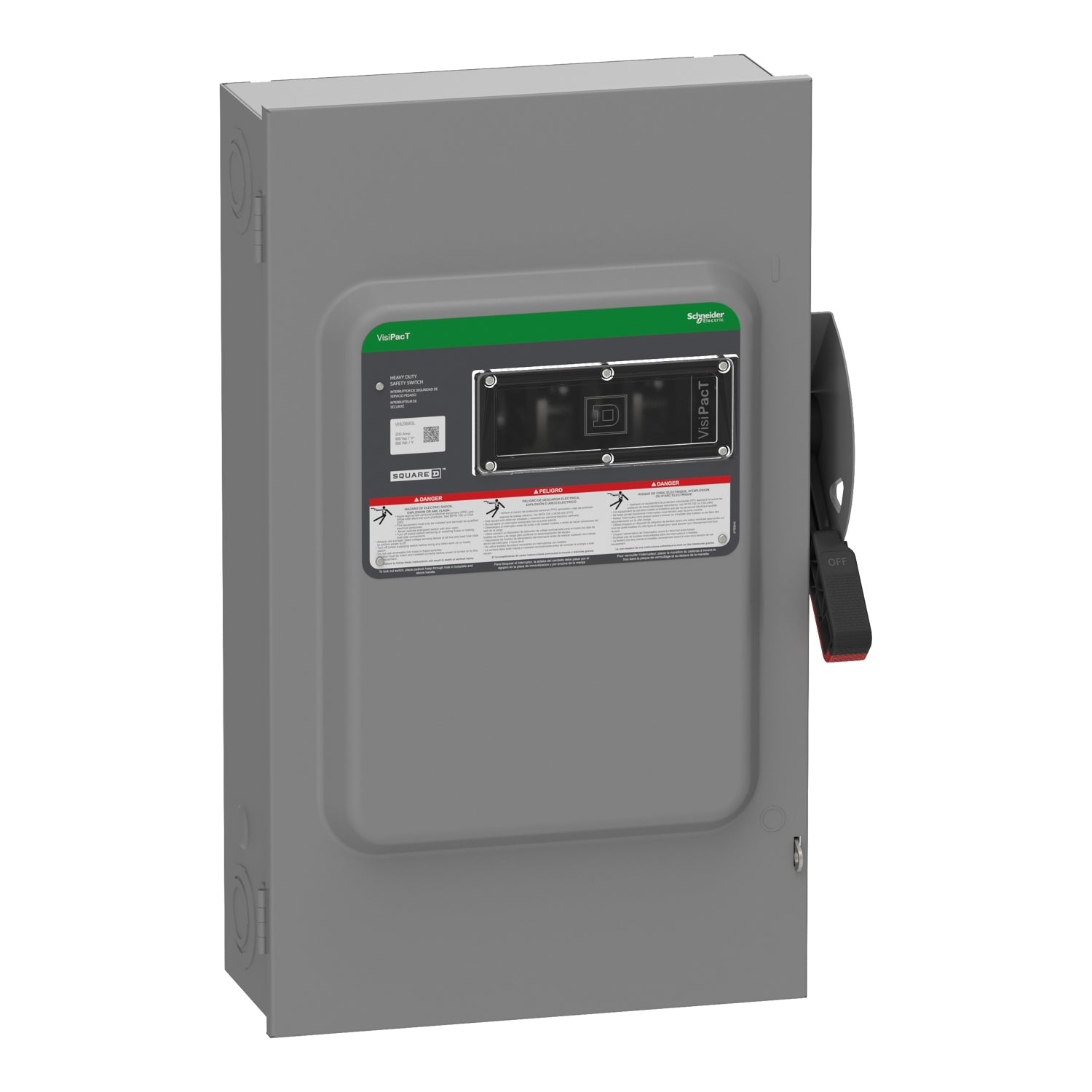

Square D VHU364GL - Non-Fusible Disconnect Switch 600V 200A 3-Pole (NEMA 1)

Square D VHU364GL is a non-fusible disconnect switch designed for safe electrical isolation in industrial power distribution systems. It provides reliable circuit interruption with a 600V voltage rating and 200A current handling capacity for three-phase applications. The switch features a robust NEMA 1 enclosure measuring 735.08 mm height × 112.78 mm width × 78.49 mm depth and weighs 54.45 lb, constructed for durable performance in demanding environments. UL listed under file E3059, this disconnect meets rigorous safety standards for industrial electrical components. Typical applications include motor control centers, industrial machinery, and power distribution panels where secure isolation is required.

Key Features & Specifications

• Type: Non-fusible disconnect switch, single configuration
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 735.08 mm H × 112.78 mm W × 78.49 mm D
• Standards: UL listed file E3059, NEMA 1 rated
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Non-Fusible Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• Wire: 3
• Nema Rating: NEMA 1
• Weight: 54.45 lb
• Certification: UL listed file E3059
• Country of Origin: United States
• Family: VH

Product Identification

• UPC: 60648589498
• GTIN: 03606485894980
