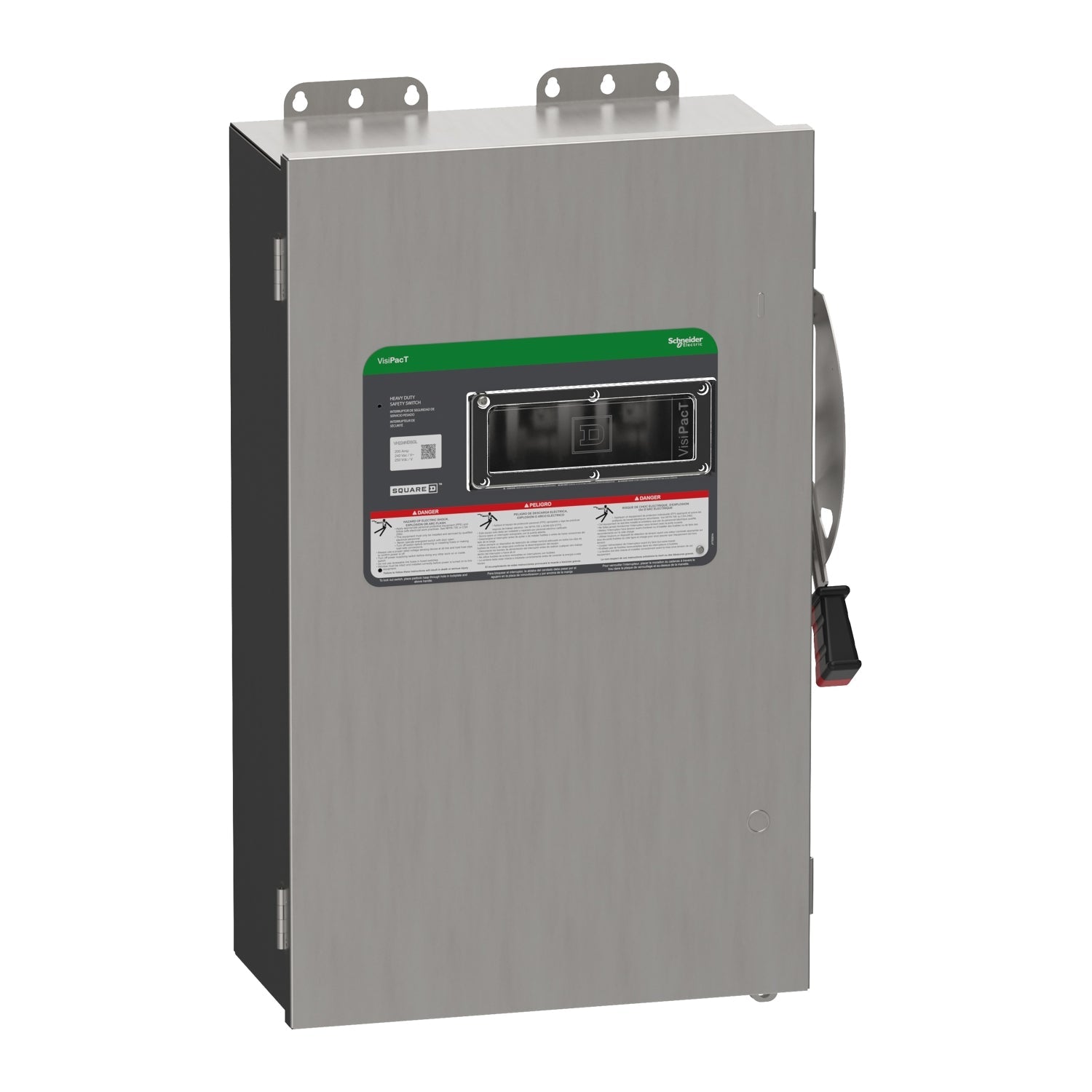

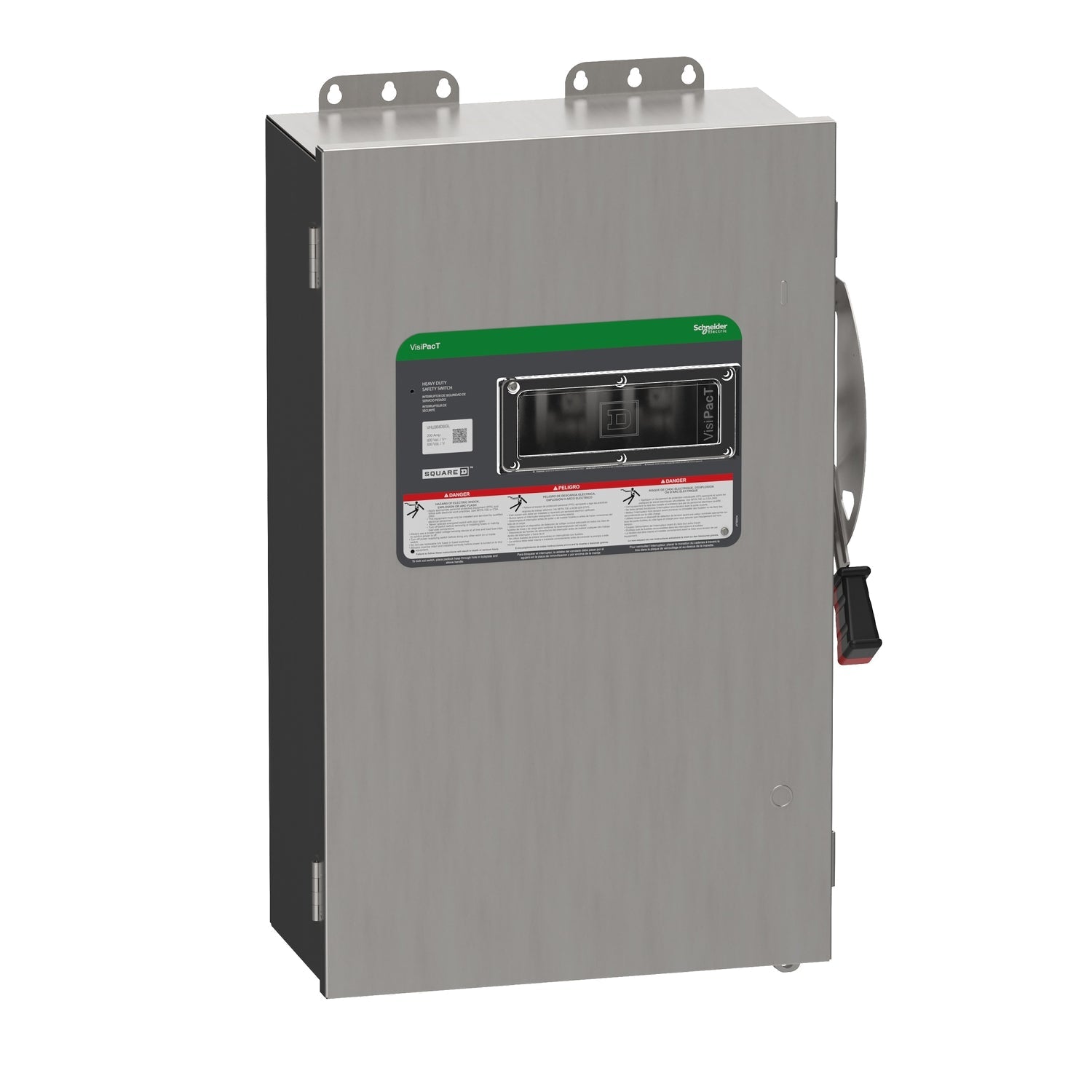

Square D VHU364DSGL - Non-Fusible Disconnect Switch 600V 200A 3-Pole (NEMA 4X)

The Square D VHU364DSGL is a heavy-duty industrial disconnect switch designed for reliable power isolation and safety in demanding applications. This 3-pole, non-fusible switch operates at 600V AC with a 200A current rating, providing robust electrical control for three-phase systems. Constructed with a NEMA 4X rated enclosure measuring 734.82 mm in height, 112.78 mm in width, and 78.49 mm in depth, it weighs 57.1 pounds and accommodates copper or aluminum conductors from AWG 6 to 250 kcmil. UL listed under file E3058, this switch meets rigorous safety standards for industrial environments including manufacturing facilities, processing plants, and other applications requiring dependable power disconnection.

Key Features & Specifications

• Type: Non-fusible disconnect switch, heavy-duty industrial construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 734.82 mm H × 112.78 mm W × 78.49 mm D (28.93 in × 4.44 in × 3.09 in)
• Standards: UL Listed (File E3058), NEMA 4X rated
• Applications: Industrial power distribution, manufacturing facilities, processing plants
• Switch Type: Non-Fusible Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3-phase
• Wire Size: AWG 6 to 250 kcmil, Copper/Aluminum
• Enclosure: NEMA 4X
• Weight: 57.1 lb
• Country of Origin: United States
• Family: VH

Product Identification

• UPC: 060648589496
• GTIN: 03606485894966
