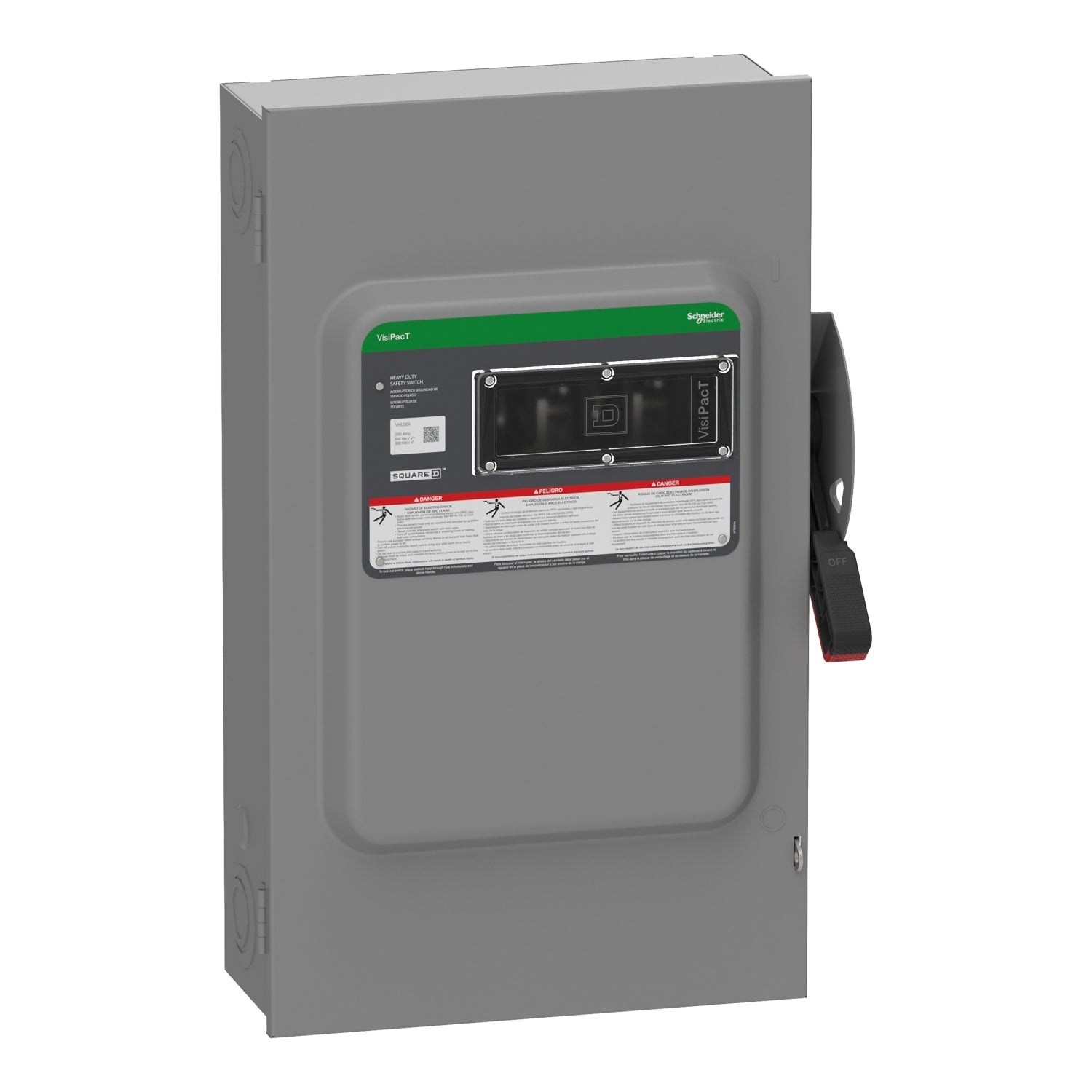

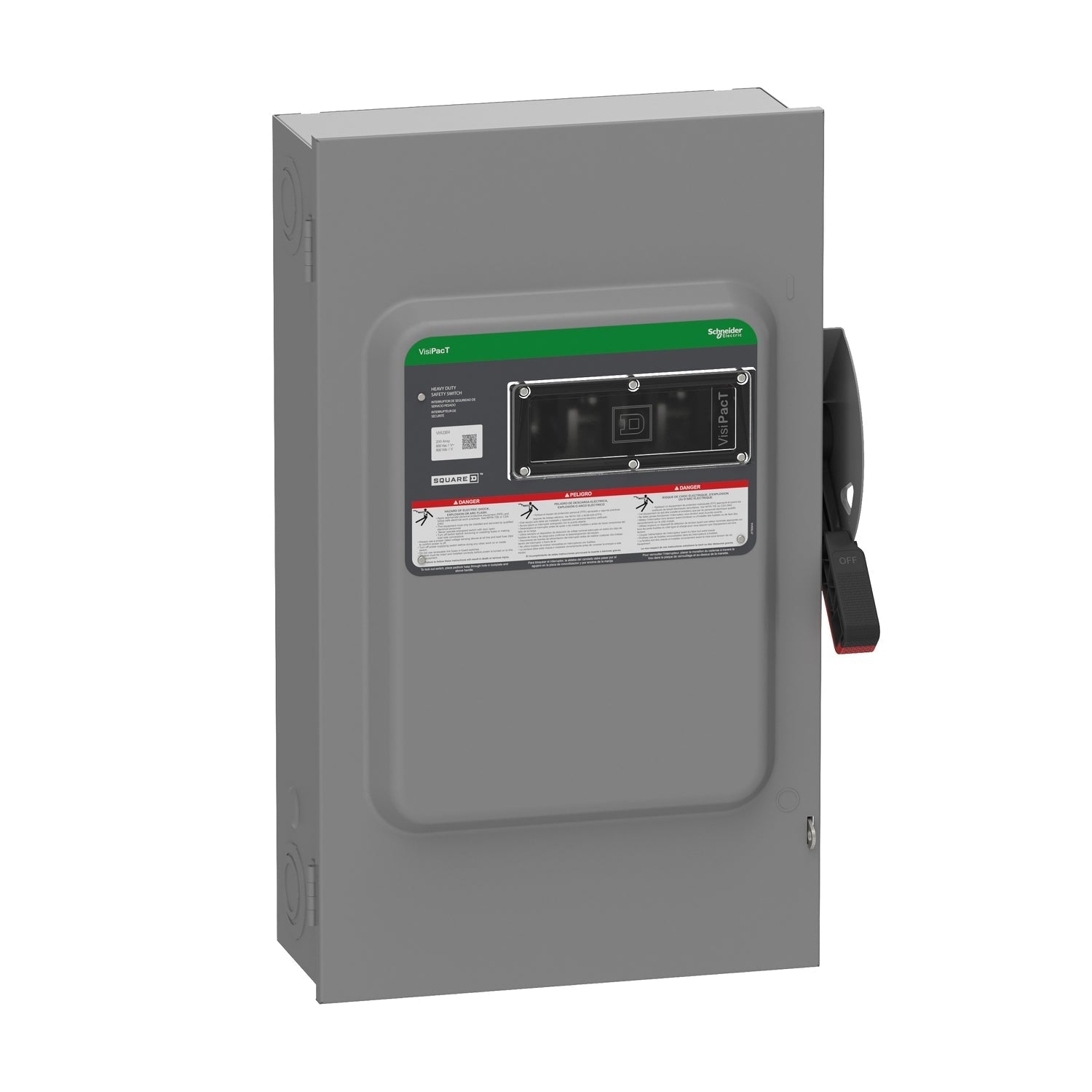

Square D VHU364 - Non-Fusible Disconnect Switch 600V/200A 3-Pole NEMA 1

Square D VHU364 is a non-fusible disconnect switch designed for industrial power distribution systems requiring safe load interruption. The heavy-duty switch features a 600V AC/DC voltage rating and 200A current capacity in a compact 16.5" x 29" NEMA 1 enclosure weighing 54.45 lb. Its rugged construction includes three poles in single configuration with copper alloy contacts for reliable operation, complying with UL E2875 and EU RoHS standards. The VH family switch is engineered for three-phase applications including motor control centers and industrial machinery disconnects.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch with visible blade contacts
• Voltage Rating: 600V AC/DC
• Current Rating: 200A
• Dimensions: 16.5" x 29" (419mm x 737mm)
• Standards: UL listed (file E2875), EU RoHS compliant
• Applications: Industrial power distribution, motor control centers
• Configuration: Single
• Poles: 3
• Phase: 3
• Wire: 3
• NEMA Rating: NEMA 1
• Switch Style: Non-Fusible
• Weight: 54.45 lb (24.7 kg)
• Country of Origin: United States

Product Identification

• UPC: 060648589493
• GTIN: 03606485894935
