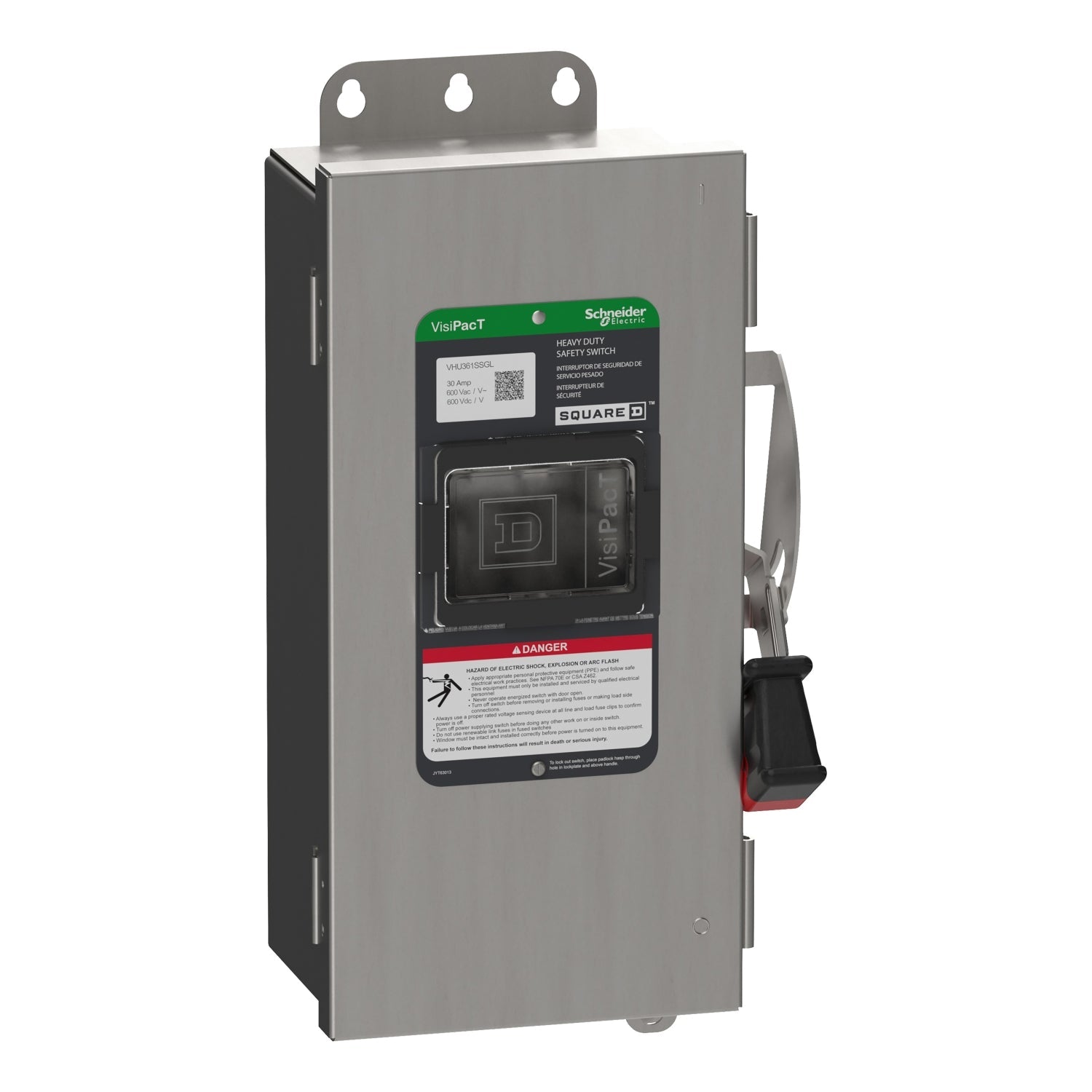

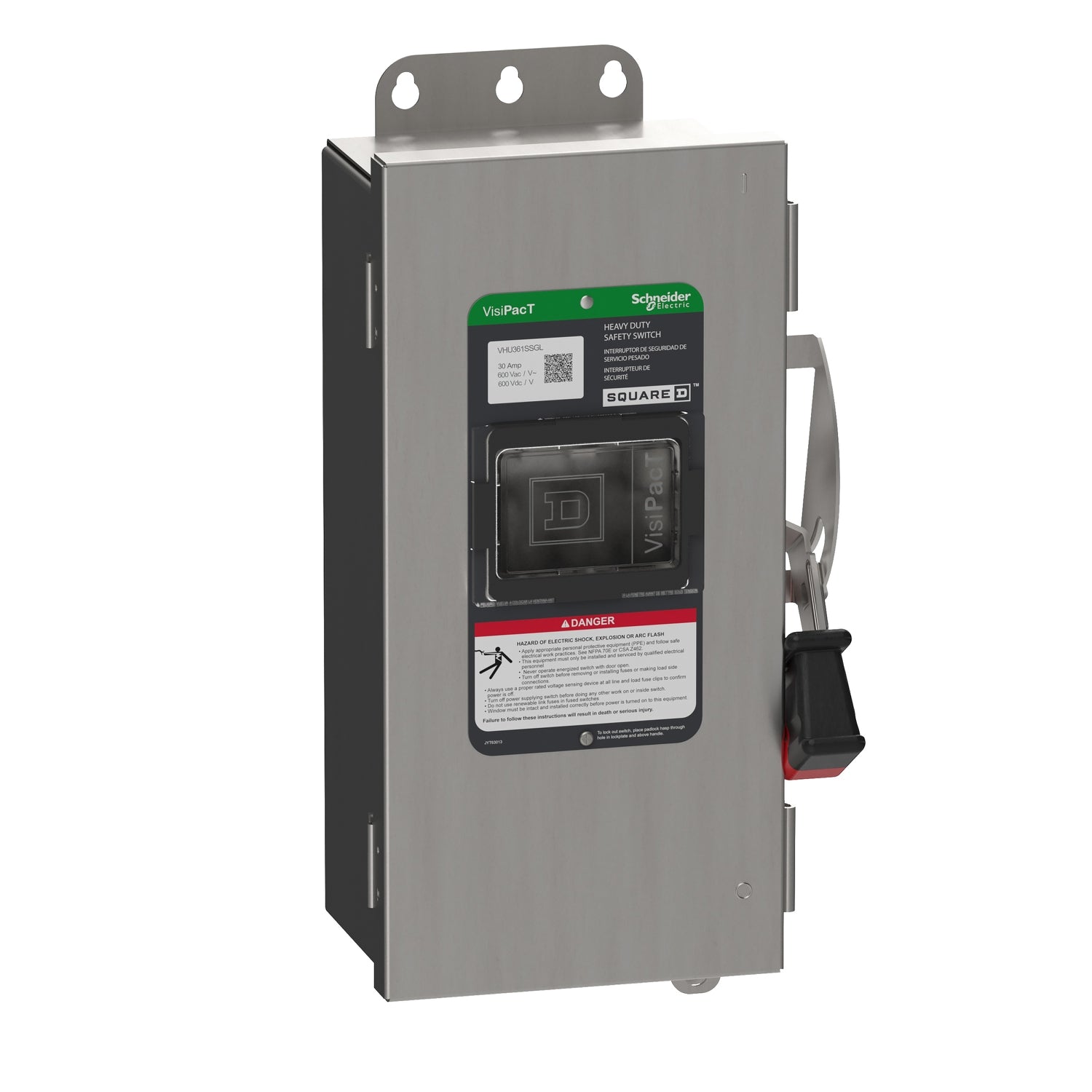

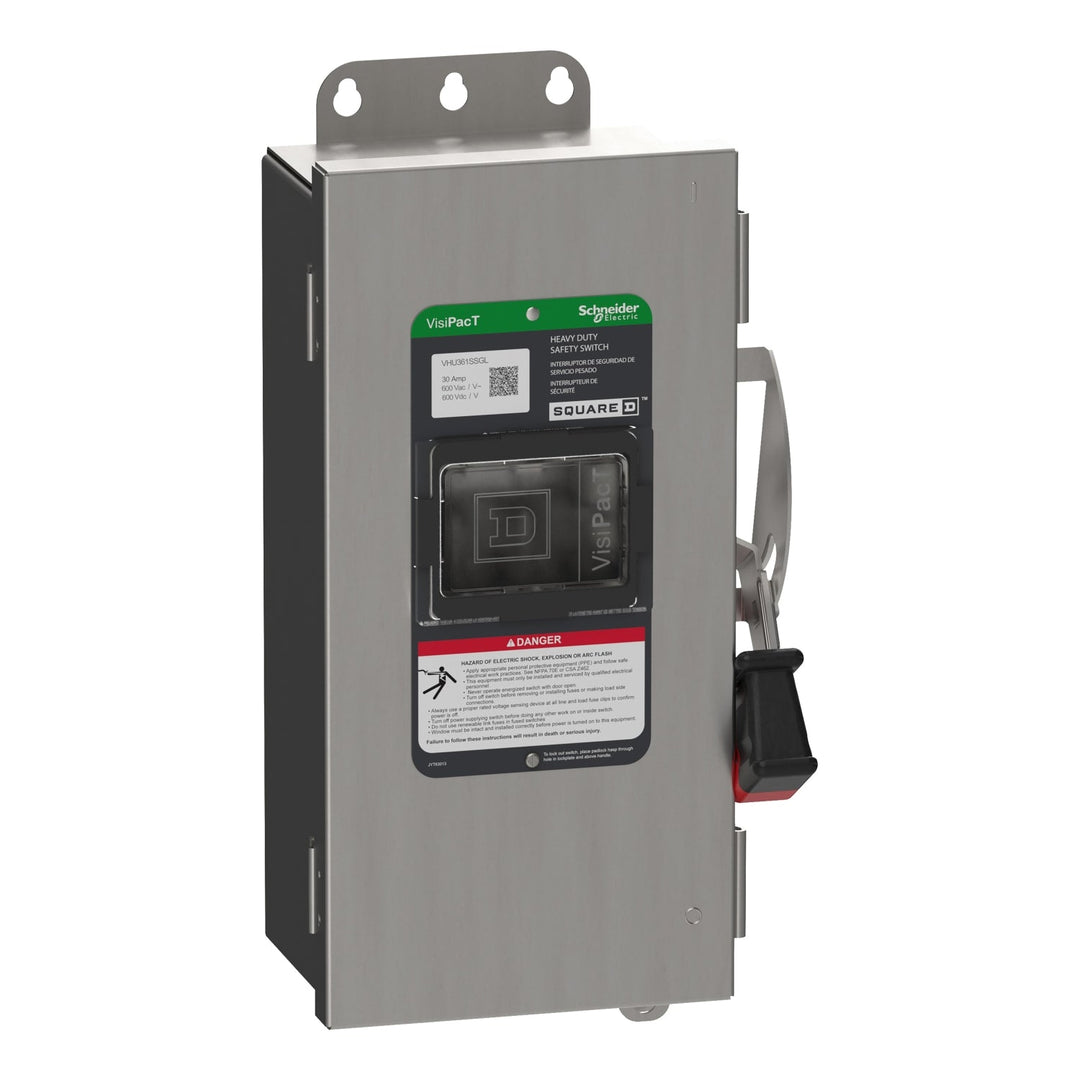

Square D VHU361SSGL - Non-Fusible Disconnect Switch 600V/30A (NEMA 4X Enclosure)

Square D VHU361SSGL is a 3-pole non-fusible safety disconnect switch designed for industrial power isolation in 3-phase systems. The unit features a 600V voltage rating and 30A current capacity in a compact NEMA 4X-rated enclosure measuring 461.87mm (H) × 112.78mm (W) × 78.49mm (D) with a robust 13.23 lb steel construction. UL-listed under file E3031, this single-configuration switch provides reliable circuit protection for motor control centers, HVAC systems, and industrial machinery requiring safe maintenance disconnects.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch with quick-make/quick-break mechanism
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 461.87mm (H) × 112.78mm (W) × 78.49mm (D)
• Standards: UL Listed (File E3031), NEMA 4X
• Applications: Motor control centers, industrial machinery, HVAC systems
• Configuration: Single
• Poles: 3
• Phase: 3-phase
• Wire: 3-wire
• Enclosure: NEMA 4X rated corrosion-resistant steel
• Weight: 13.23 lb

Product Identification

• UPC: 060648589454
• GTIN: 03606485894546
