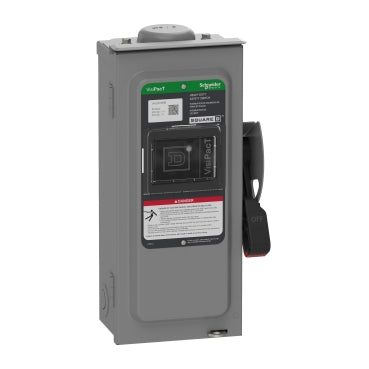

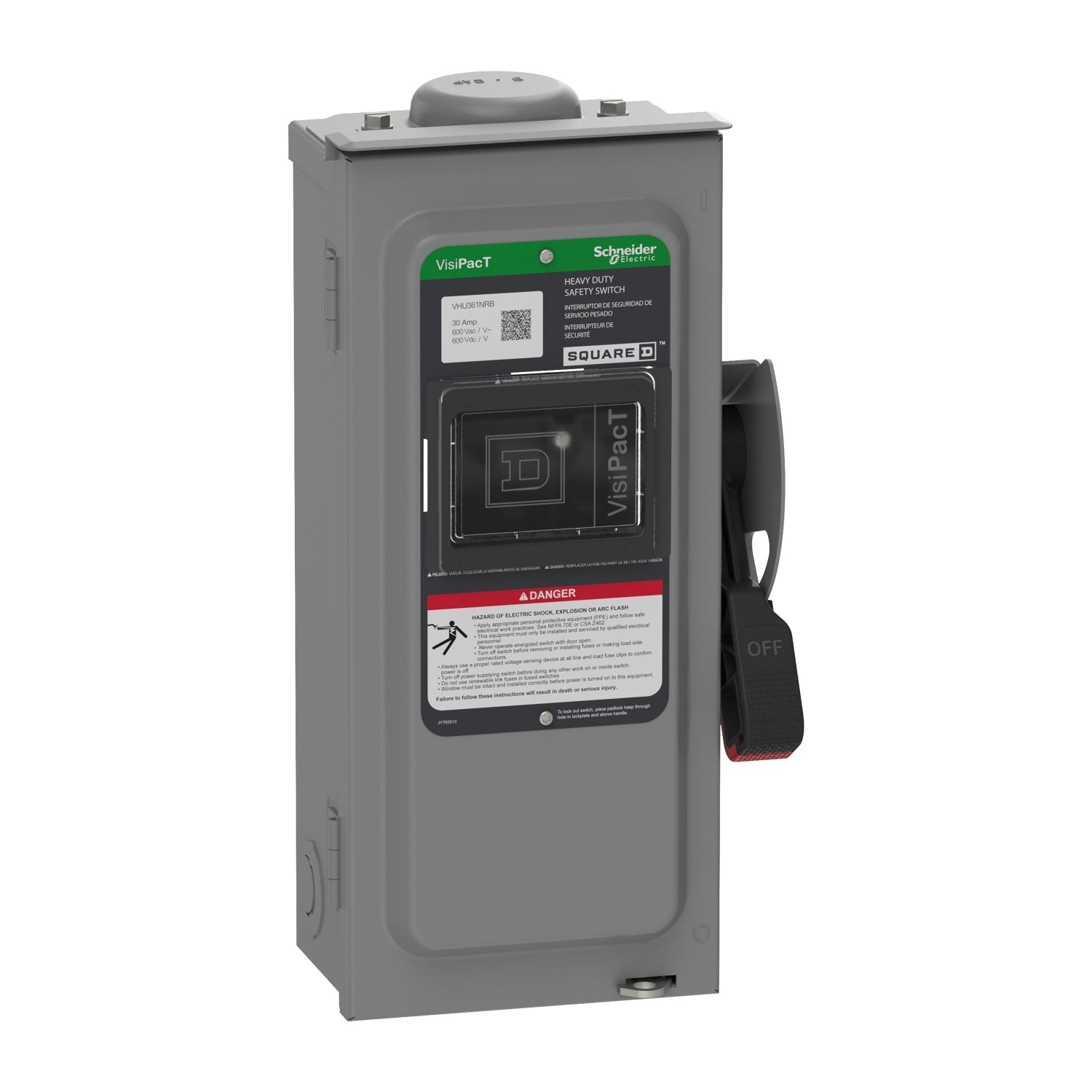

Square D VHU361NRB - Non-Fusible Disconnect Switch 600VAC/DC 30A (3-Pole NEMA 3R)

Square D VHU361NRB is a non-fusible disconnect switch designed for safe electrical isolation in industrial applications. This 600V AC/DCV rated switch handles 30A current with a rugged NEMA 3R enclosure measuring 6 1/2" x 14 3/4" and weighing 4 lb. The UL-listed (file E2875) and RoHS-compliant unit features a 3-pole single configuration with 3-wire capacity, engineered for three-phase power distribution systems requiring reliable circuit interruption.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 6.5" x 14.75" (165mm x 375mm)
• Standards: UL Listed (File E2875), EU RoHS
• Applications: Industrial power distribution, motor control
• Switch Style: Non-Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• NEMA Rating: 3R
• Wire: 3
• Weight: 4 lb (1.81 kg)
• Country of Origin: United States

Product Identification

• UPC: 060648589442
• GTIN: 03606485894423
