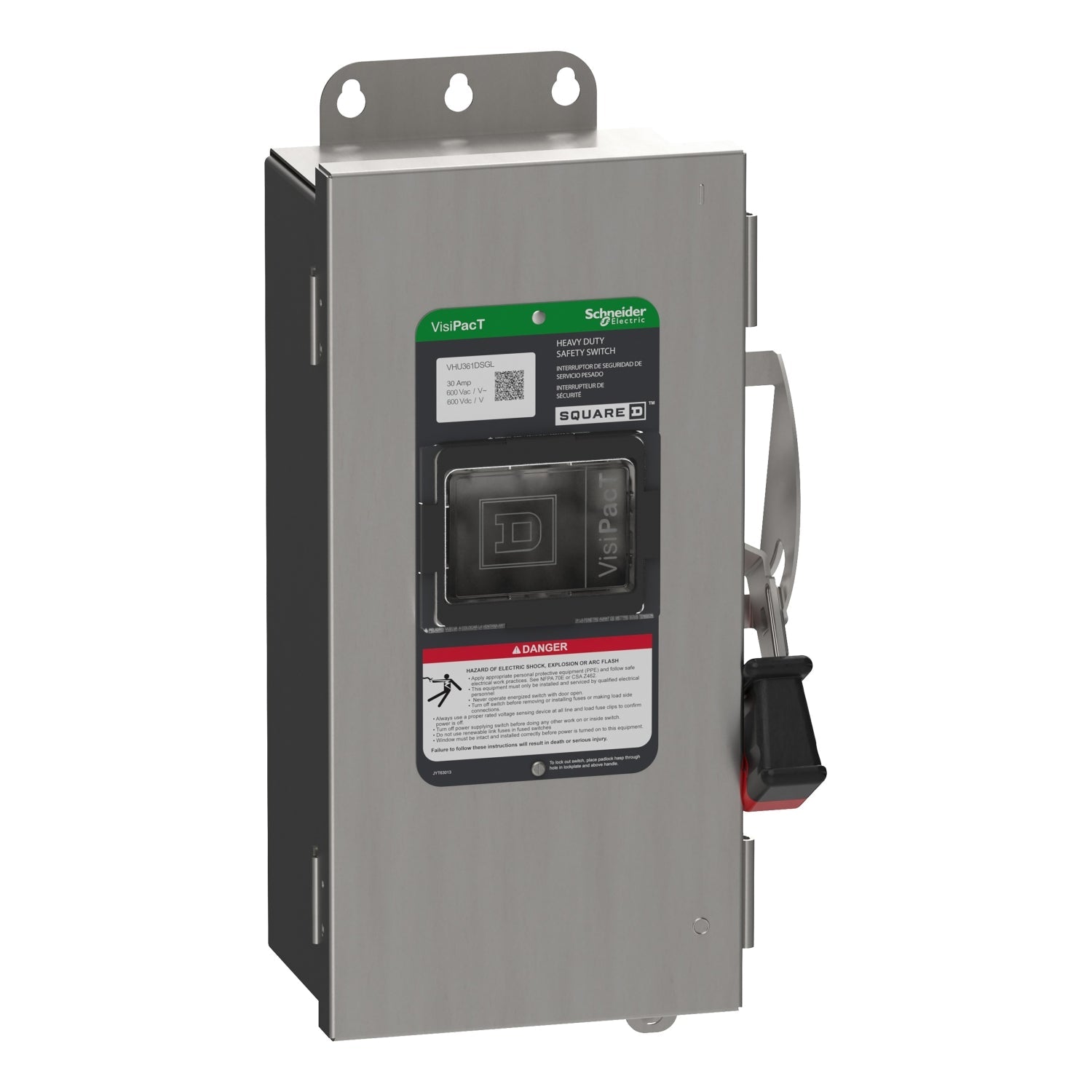

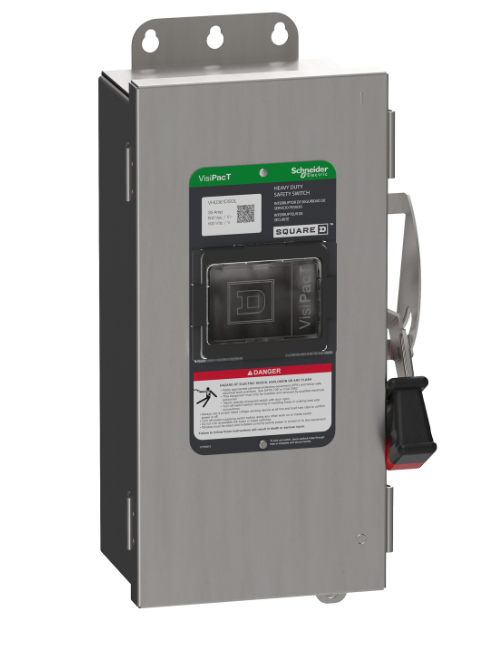

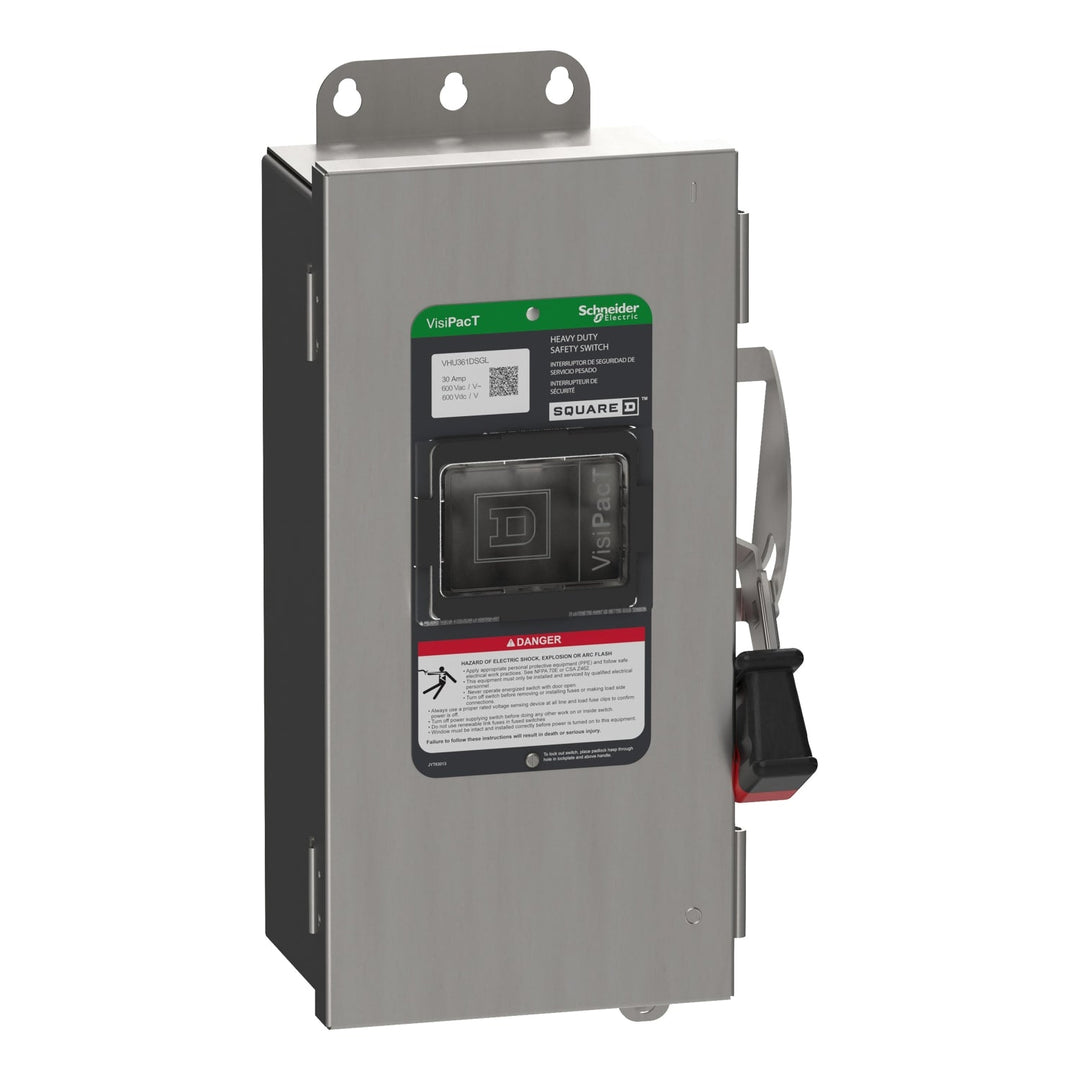

Square D VHU361DSGL - Non-Fusible Disconnect Switch 30A 600V AC/DC (3-Pole NEMA 4X)

Square D VHU361DSGL is a heavy-duty industrial disconnect switch designed for reliable circuit isolation and load-breaking operations in demanding environments. This 3-pole, 30A rated switch handles 600V AC/DC systems with a 200kA interrupting capacity at 600V, providing robust electrical protection. The unit features a compact 7-1/4" x 15" NEMA 4X rated enclosure weighing 13.23 lb, constructed for corrosion resistance and durability. It complies with UL standards (file E2875) and EU RoHS requirements, ensuring industry-standard safety and environmental compliance. Typical applications include industrial control panels, motor control centers, and machinery where reliable power disconnection is critical for maintenance and safety procedures.

Key Features & Specifications

• Type: Non-Fusible Disconnect Switch, VHU Series
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 7-1/4" x 15"
• Standards: UL Listed (File E2875), EU RoHS Compliant
• Applications: Industrial control panels, motor control centers, machinery disconnects
• Switch Type: Non-Fusible Disconnect
• Configuration: Single
• Poles: 3
• AIC Rating: 200kA@600V
• NEMA Rating: 4X
• Phase: 3
• Wire Size: AWG 12 to AWG 6, AWG 14 to AWG 6 (Aluminum/Copper)
• Weight: 13.23 lb
• Enclosure: NEMA 4X Rated
• Country of Origin: United States

Product Identification

• UPC: 060648589453
• GTIN: 03606485894539
