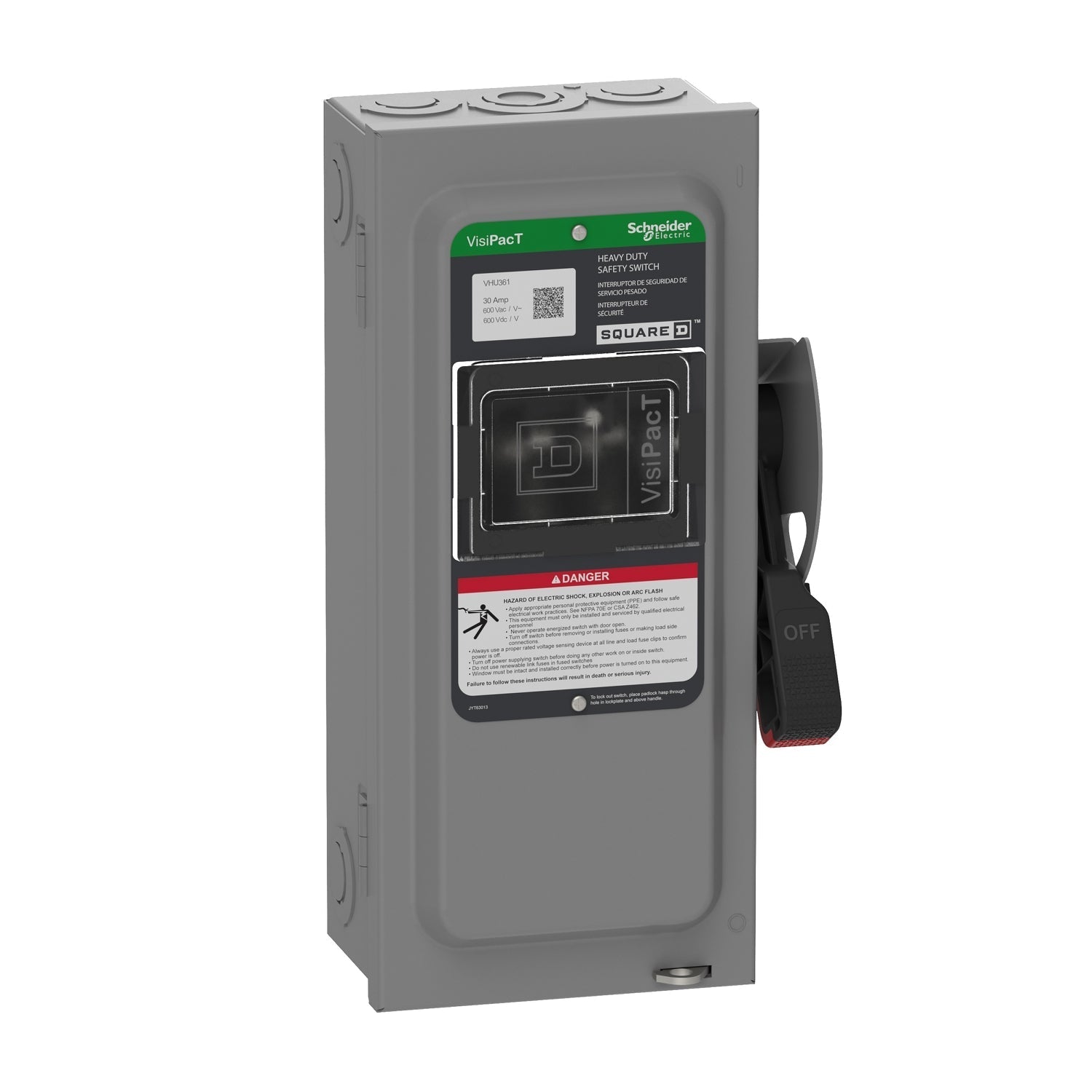

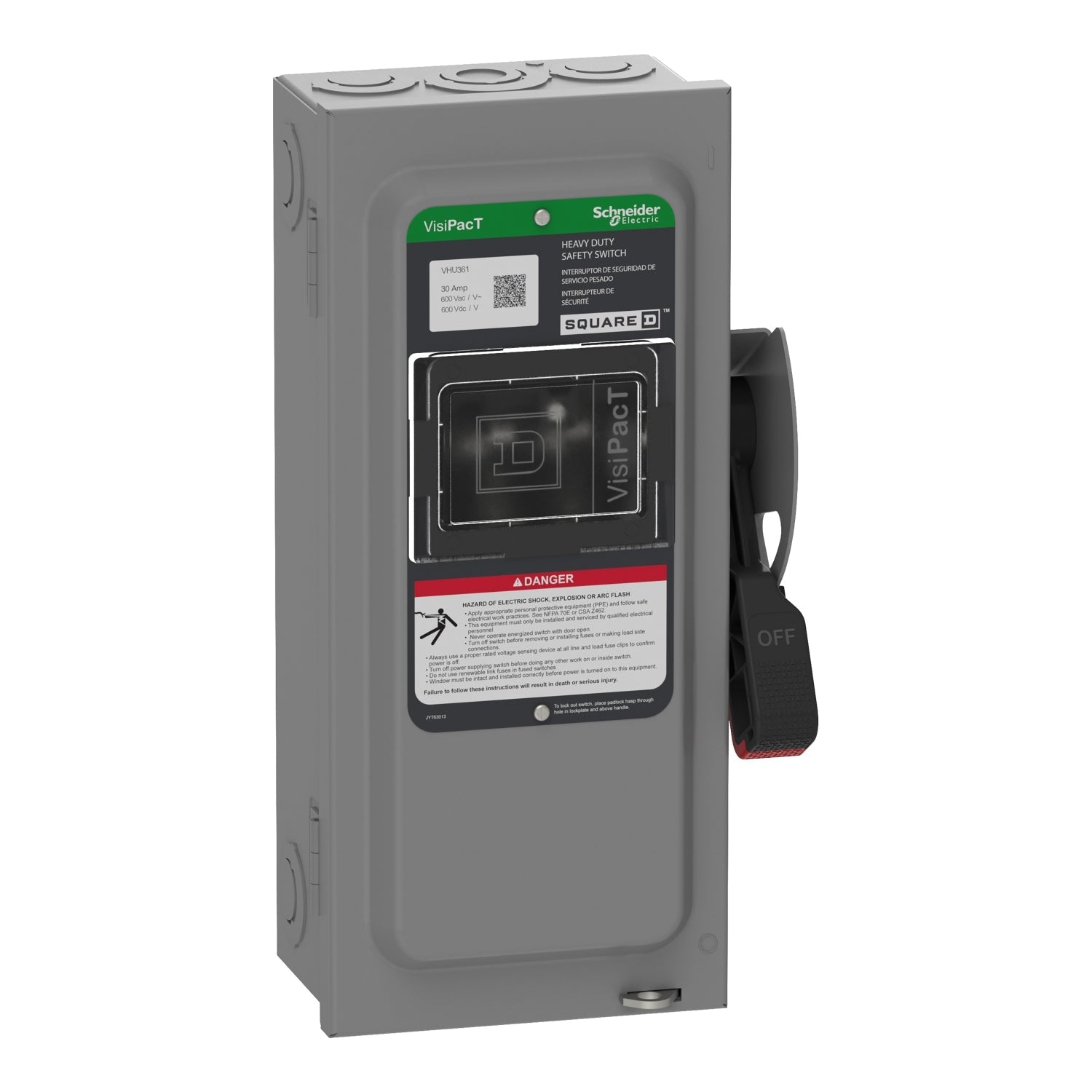

Square D VHU361 - Non-Fusible Disconnect Switch 30A 600V AC/DC (3-Pole NEMA 1)

Square D VHU361 is a non-fusible safety disconnect switch designed for reliable circuit isolation in industrial applications. It features a 600V AC/DC voltage rating and 30A current handling capacity with three-pole single configuration for comprehensive power interruption. The unit measures 6-1/4" x 14-1/2" and weighs 8.82 lb, constructed with NEMA 1 enclosure rating for indoor industrial environments. Certified to UL standards (file E2875) and compliant with EU RoHS directives, this disconnect switch ensures operational safety and regulatory adherence. Typical applications include motor control centers, industrial machinery, and three-phase electrical systems requiring secure maintenance disconnects.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch, manual operation
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 6-1/4" x 14-1/2"
• Standards: UL listed (file E2875), EU RoHS compliant
• Applications: Industrial machinery, motor control centers, three-phase systems
• Switch Style: Non-Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• Wire Size: AWG 12 to AWG 6, AWG 14 to AWG 6 (Copper/Aluminum)
• Nema Rating: NEMA 1
• Weight: 8.82 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589450
• GTIN: 03606485894508
