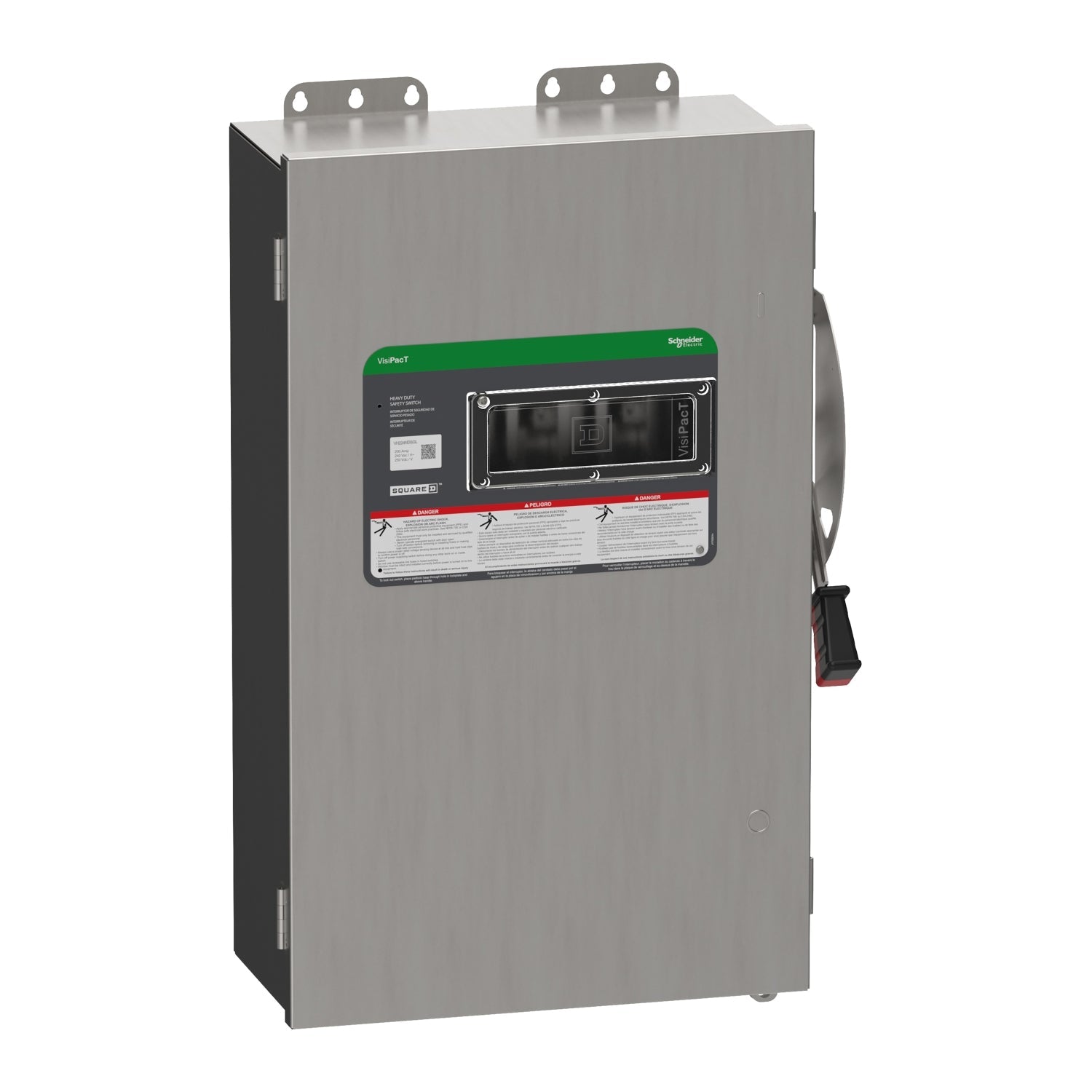

Square D VH364SSGL - Fusible Safety Switch 600V 200A (NEMA 4X 3-Pole)

Square D VH364SSGL is a heavy-duty fusible safety switch designed for reliable circuit protection and isolation in industrial applications. This 600V AC, 200A rated disconnect switch features a rugged NEMA 4X corrosion-resistant enclosure measuring 370.08 mm high × 112.78 mm wide × 78.49 mm deep with a substantial 57.1 lb construction weight. It carries UL certification (file E3018) and complies with industry standards for three-phase power systems. The switch accommodates H, K, R, and J class fuses and accepts copper or aluminum conductors from AWG 6 to 250 kcmil, making it suitable for industrial power distribution, motor control centers, and manufacturing equipment protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch with heavy-duty industrial construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 370.08 mm H × 112.78 mm W × 78.49 mm D (14.57 in × 4.44 in × 3.09 in)
• Standards: UL Listed (File E3018), NEMA 4X rated
• Applications: Industrial power distribution, motor control, equipment protection
• Switch Type: Fusible safety switch
• Configuration: Single unit
• Poles: 3
• Phase: 3-phase
• Fuse Class: H, K, R, J
• Wire Size: AWG 6 to 250 kcmil (Copper/Aluminum)
• Wire: 3-wire configuration
• Enclosure: NEMA 4X corrosion-resistant
• Weight: 57.1 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589440
• GTIN: 03606485894409
