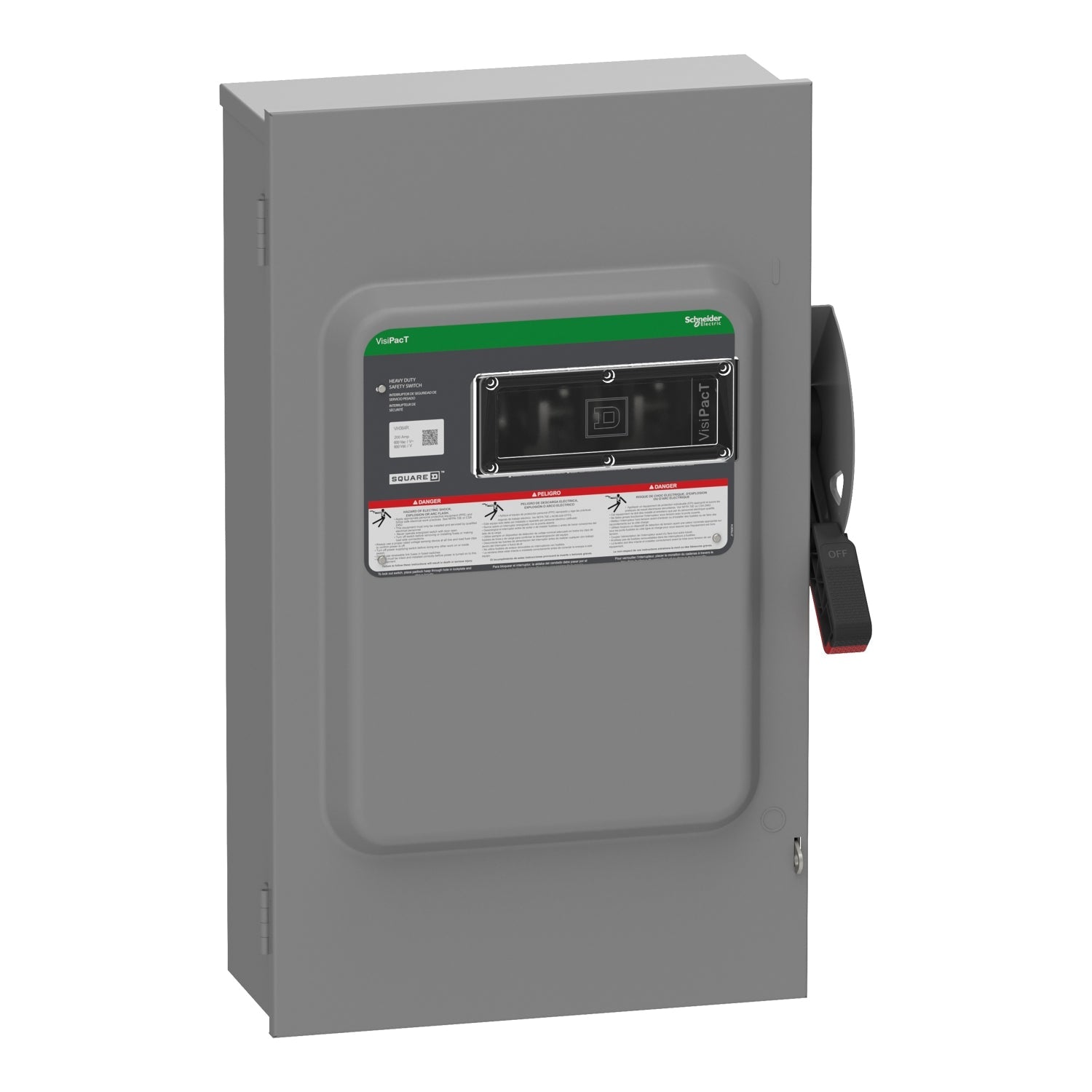

Square D VH364R - Fusible Disconnect Switch 600V AC/DC 200A 3-Pole (NEMA 3R Enclosure)

Square D VH364R is a fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit protection. This UL-listed and RoHS-compliant unit features a 600V AC/DC voltage rating with 200A current capacity across three poles, housed in a NEMA 3R-rated enclosure measuring 17" x 29" and weighing 54.45 lb. Its rugged construction supports fuse classes H, K, R, and J, with three-wire single configuration for three-phase applications, meeting stringent safety standards for electrical disconnection in commercial and industrial environments.

Key Features & Specifications

• Type: Fusible safety disconnect switch with NEMA 3R enclosure
• Voltage Rating: 600V AC/DC
• Current Rating: 200A
• Dimensions: 17 in x 29 in (431.8 mm x 736.6 mm)
• Standards: UL listed (File E2875), EU RoHS compliant
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: H, K, R, J
• Wire: 3
• Weight: 54.45 lb (24.7 kg)
• Country of Origin: United States

Product Identification

• UPC: 060648589435
• GTIN: 03606485894355
