Square D VH364NAWKGL - Fusible Disconnect Switch 600V/200A (3-Pole NEMA 12)

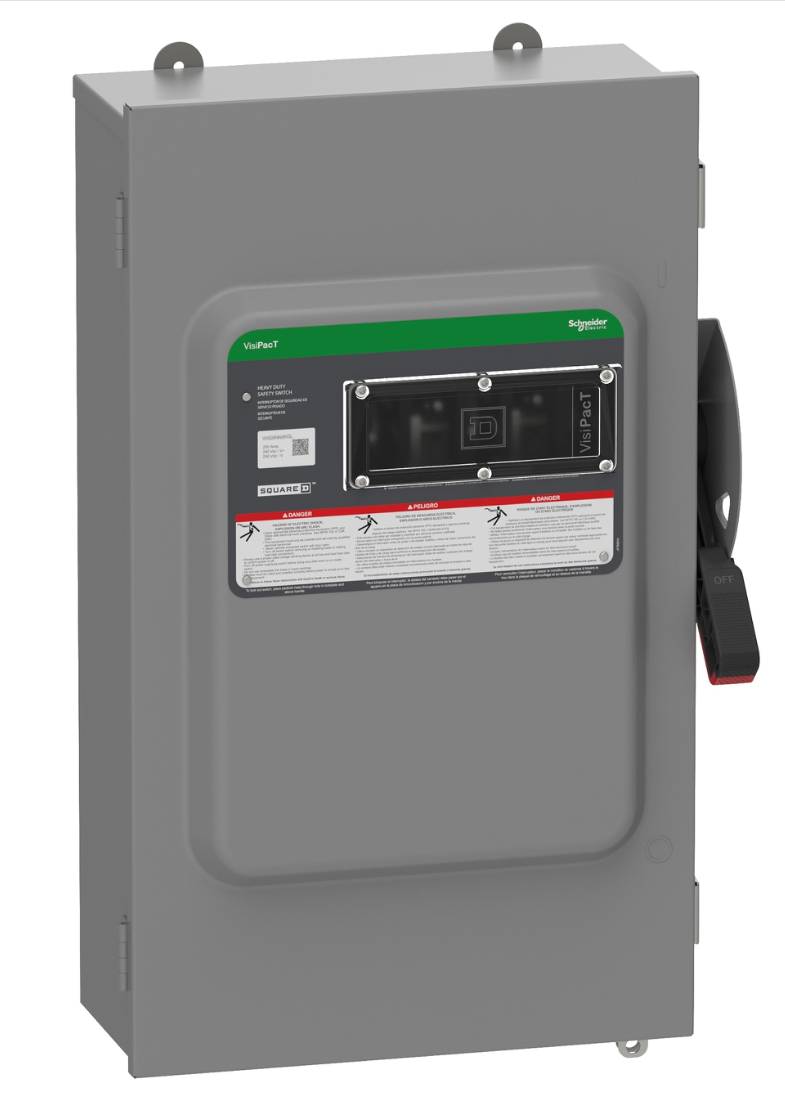

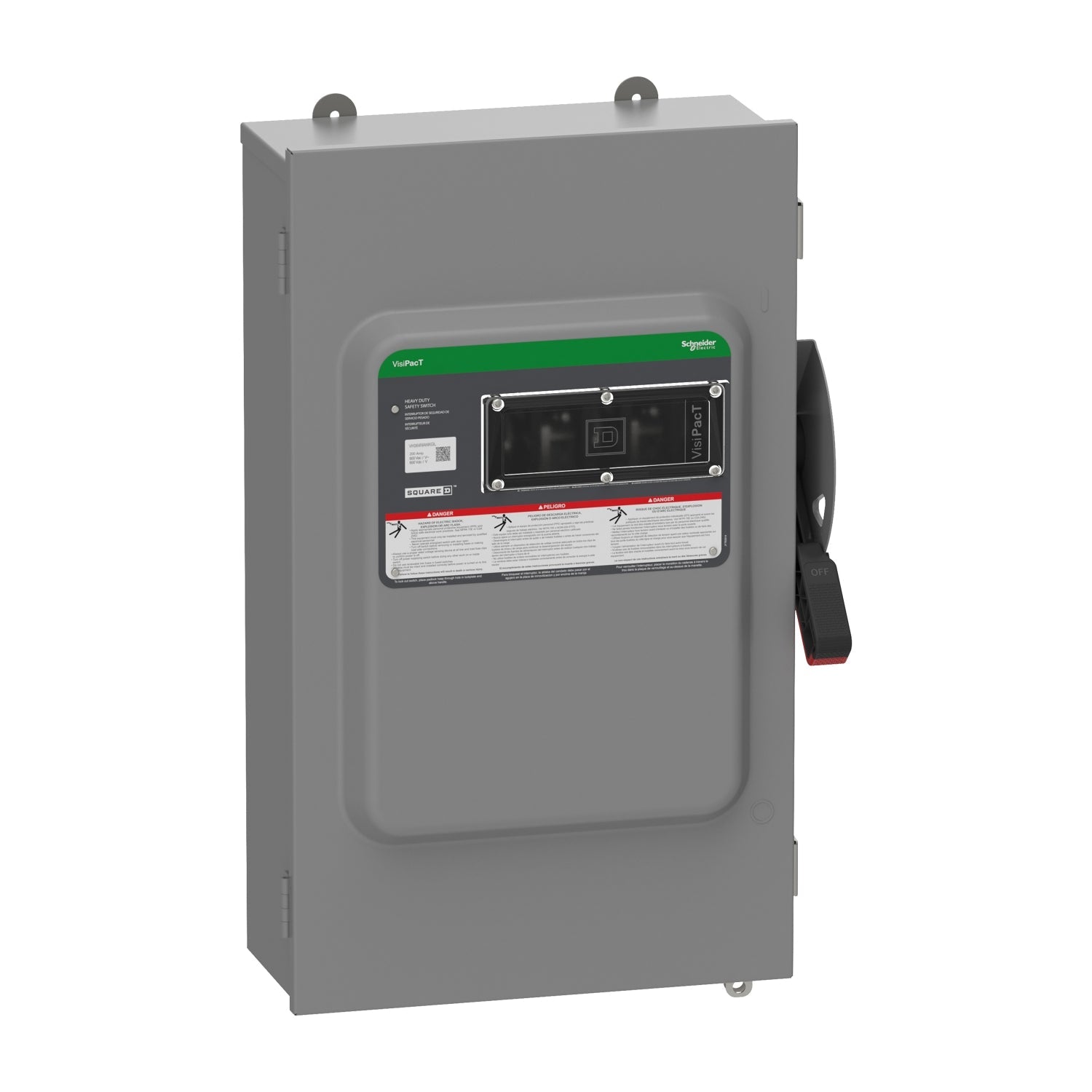

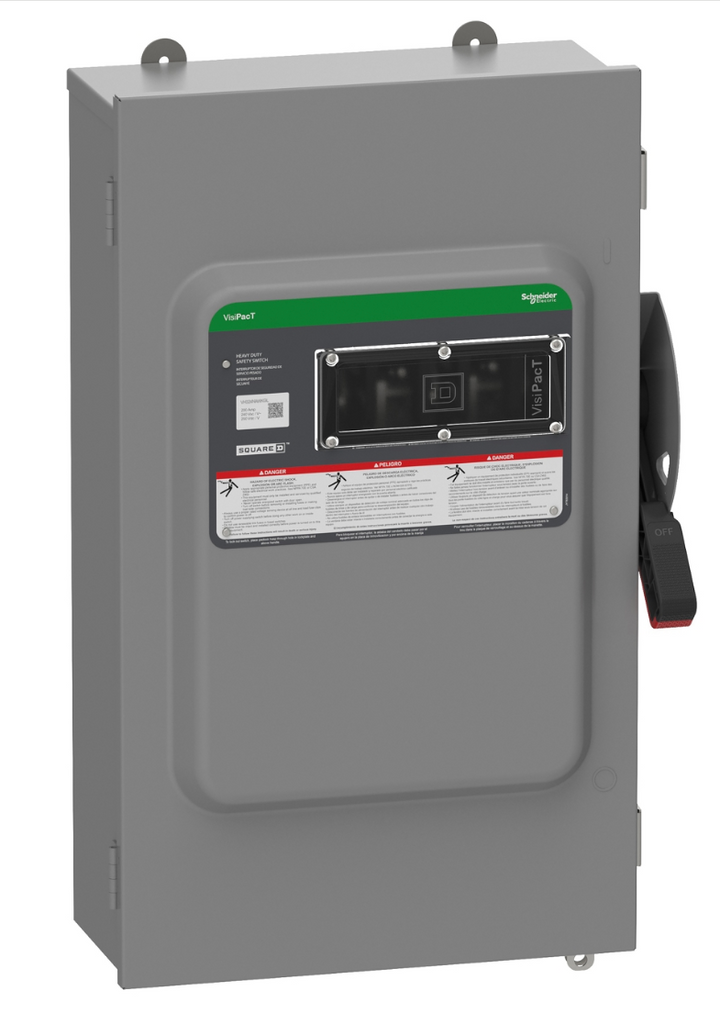

Square D VH364NAWKGL is a fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit isolation. This heavy-duty switch features a 600V AC/DC voltage rating and 200A current capacity in a compact 17" x 29" NEMA 12-rated enclosure. Its rugged construction includes three poles with single-configuration copper contacts and 3-wire termination points, weighing 25 lb for stable panel mounting. The unit complies with EU RoHS directives and carries UL certification (file E2875) for safety-critical applications. Typical uses include motor control centers, manufacturing equipment, and three-phase power distribution where fused protection is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch with copper contacts
• Voltage Rating: 600V AC/DC
• Current Rating: 200A
• Dimensions: 17 in x 29 in (431.8 mm x 736.6 mm)
• Standards: EU RoHS, UL listed (file E2875)
• Applications: Industrial power distribution, motor control centers
• Configuration: Single
• Poles: 3
• Phase: 3
• NEMA Rating: NEMA 12
• Wire: 3
• Weight: 25 lb (11.34 kg)
• Country of Origin: United States

Product Identification

• UPC: 060648589427
• GTIN: 03606485894270
