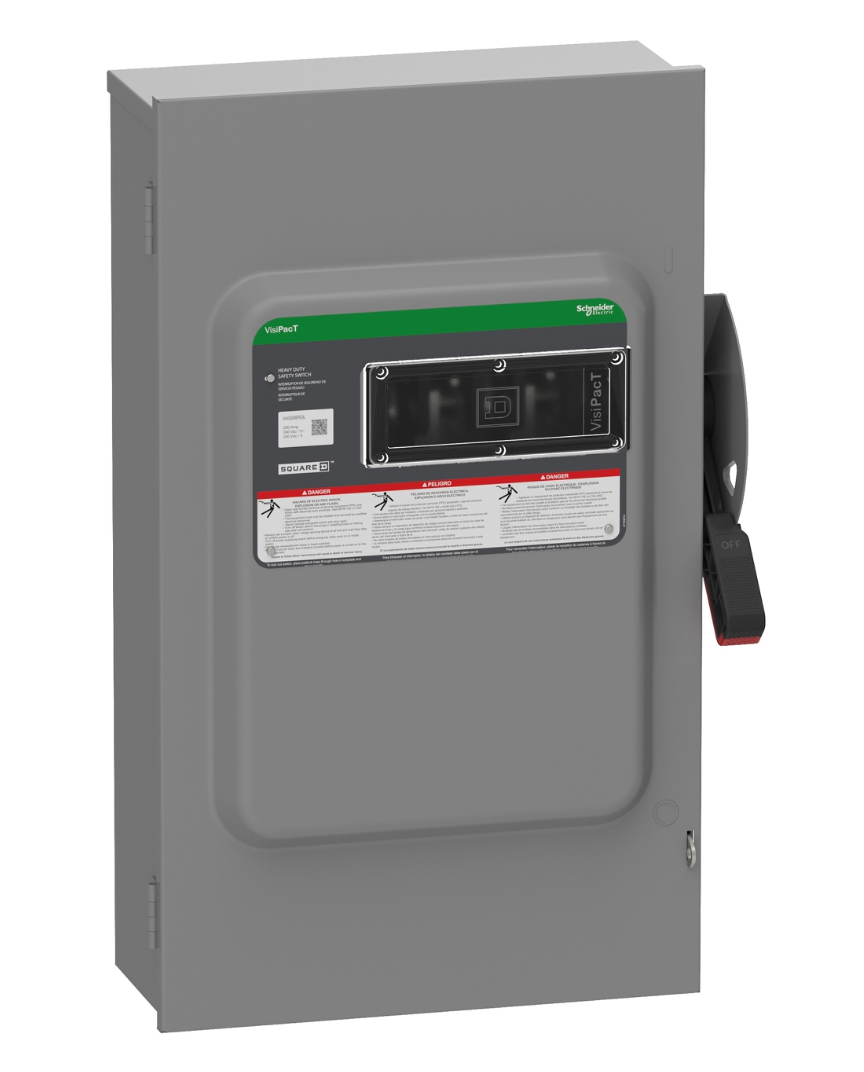

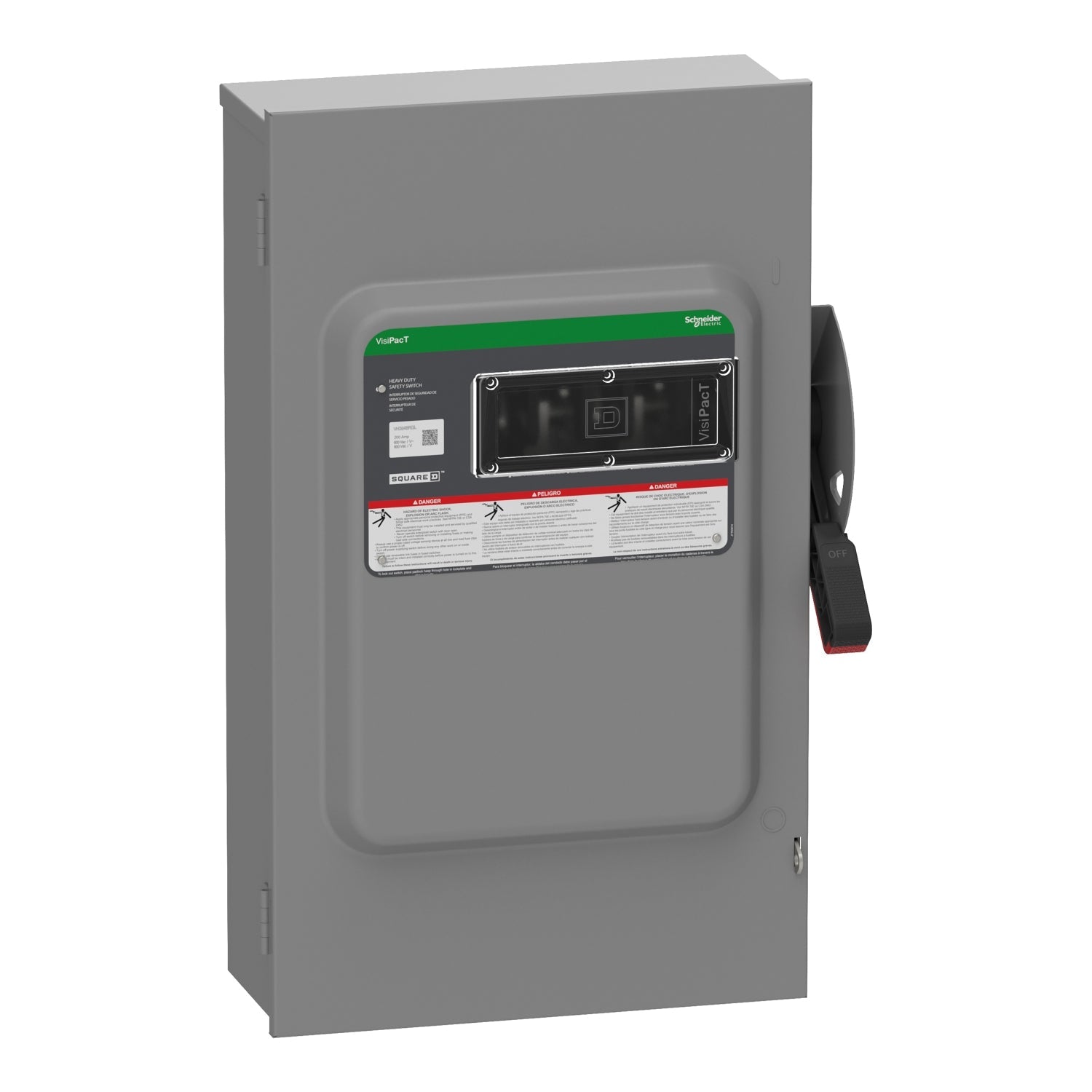

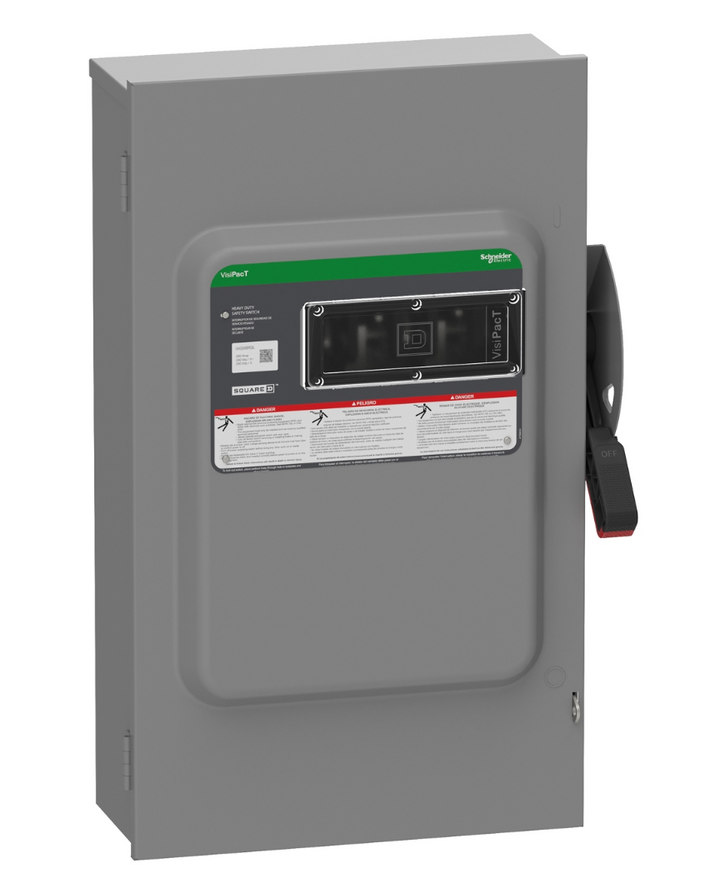

Square D VH364BRGL - Fusible Disconnect Switch 600V 200A (3-Pole NEMA 3R)

Square D VH364BRGL is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. This UL-listed device provides 600V voltage rating with 200A current capacity for robust electrical system protection. The switch features a compact design measuring 734.06 mm height × 112.78 mm width × 78.49 mm depth and weighs 54.45 lb, constructed with NEMA 3R rated enclosure for outdoor durability. Certified under UL file E3008, this three-pole, three-phase disconnect meets industry safety standards for industrial power distribution. It is commonly deployed in manufacturing facilities, commercial buildings, and industrial plants requiring Class J fuse protection for three-wire electrical systems.

Key Features & Specifications

• Type: Fusible safety disconnect switch with NEMA 3R enclosure
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 734.06 mm H × 112.78 mm W × 78.49 mm D (28.9 in × 4.44 in × 3.09 in)
• Standards: UL listed file E3008, NEMA 3R rated
• Applications: Industrial power distribution, manufacturing facilities, commercial buildings
• Switch Type: Fusible disconnect
• Configuration: Single
• Poles: 3
• Phase: 3-phase
• Fuse Class: J
• Wire: 3-wire system
• Weight: 54.45 lb
• Country of Origin: United States
• Family: VH series

Product Identification

• UPC: 060648589431
• GTIN: 03606485894317
