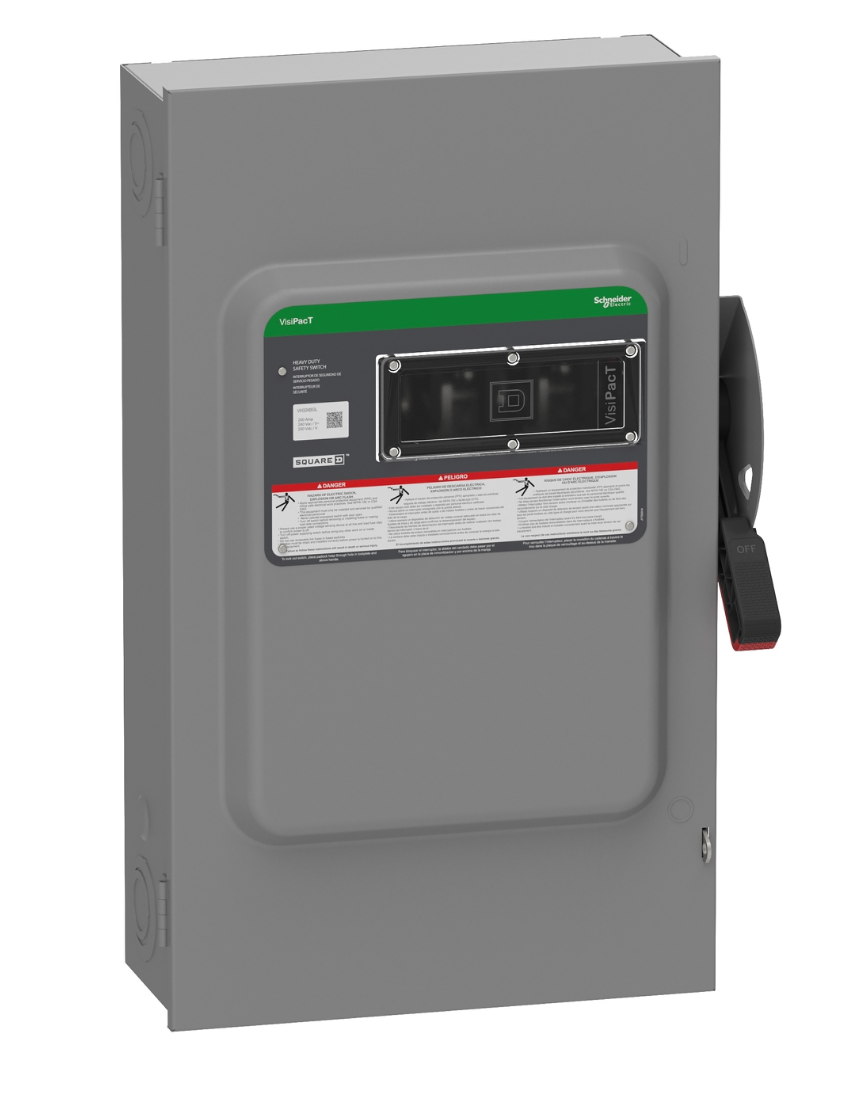

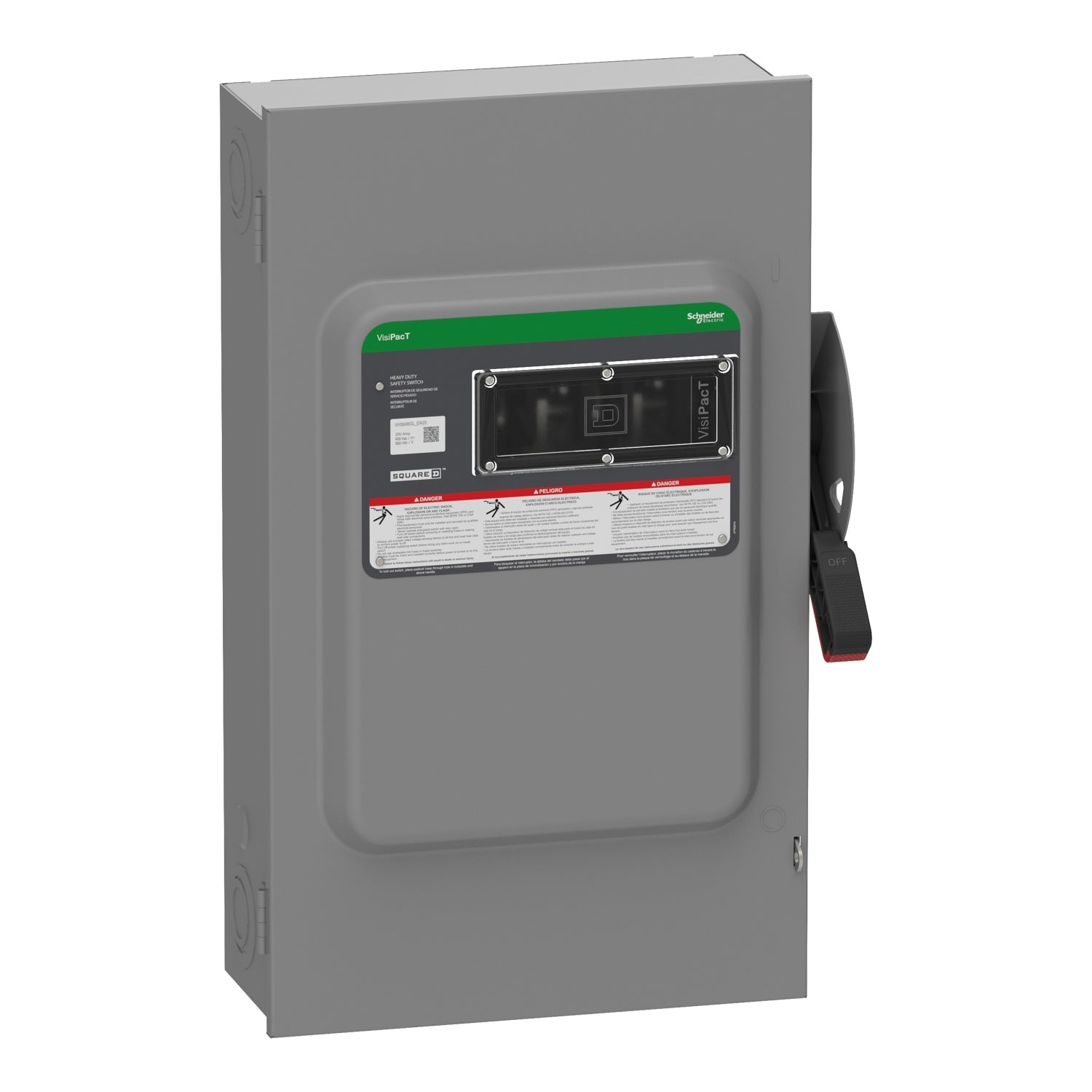

Square D VH364BGL - Fusible Disconnect Switch 600V 200A (3-Pole NEMA 1)

Square D VH364BGL is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial power distribution systems. This heavy-duty switch features a 600V voltage rating and 200A current capacity, providing robust electrical performance for demanding applications. Constructed with a NEMA 1 enclosure measuring 735.08 mm height × 112.78 mm width × 78.49 mm depth and weighing 54.45 lb, the unit offers durable three-pole protection with Class J fuse compatibility. The switch carries UL certification (file E3007) and meets industry standards for safety and performance. Typical applications include industrial control panels, motor control centers, and main power distribution systems requiring secure disconnection capabilities.

Key Features & Specifications

• Type: Fusible safety disconnect switch with heavy-duty construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 735.08 mm H × 112.78 mm W × 78.49 mm D (28.94 in × 4.44 in × 3.09 in)
• Weight: 54.45 lb
• Standards: UL listed (file E3007), NEMA 1 rated
• Applications: Industrial power distribution, motor control centers, main disconnect systems
• Switch Type: Fusible disconnect
• Configuration: Single unit
• Poles: 3
• Phase: 3-phase
• Fuse Class: J
• Wire: 3-wire configuration
• Nema Rating: NEMA 1
• Certification: UL listed file E3007
• Country of Origin: United States

Product Identification

• UPC: 060648589430
• GTIN: 03606485894300
