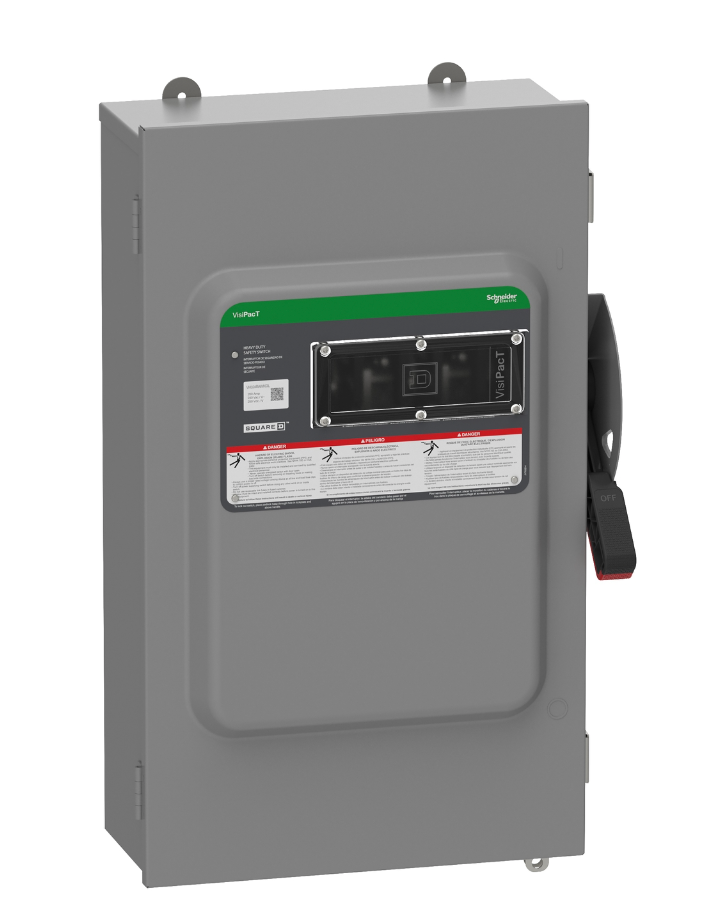

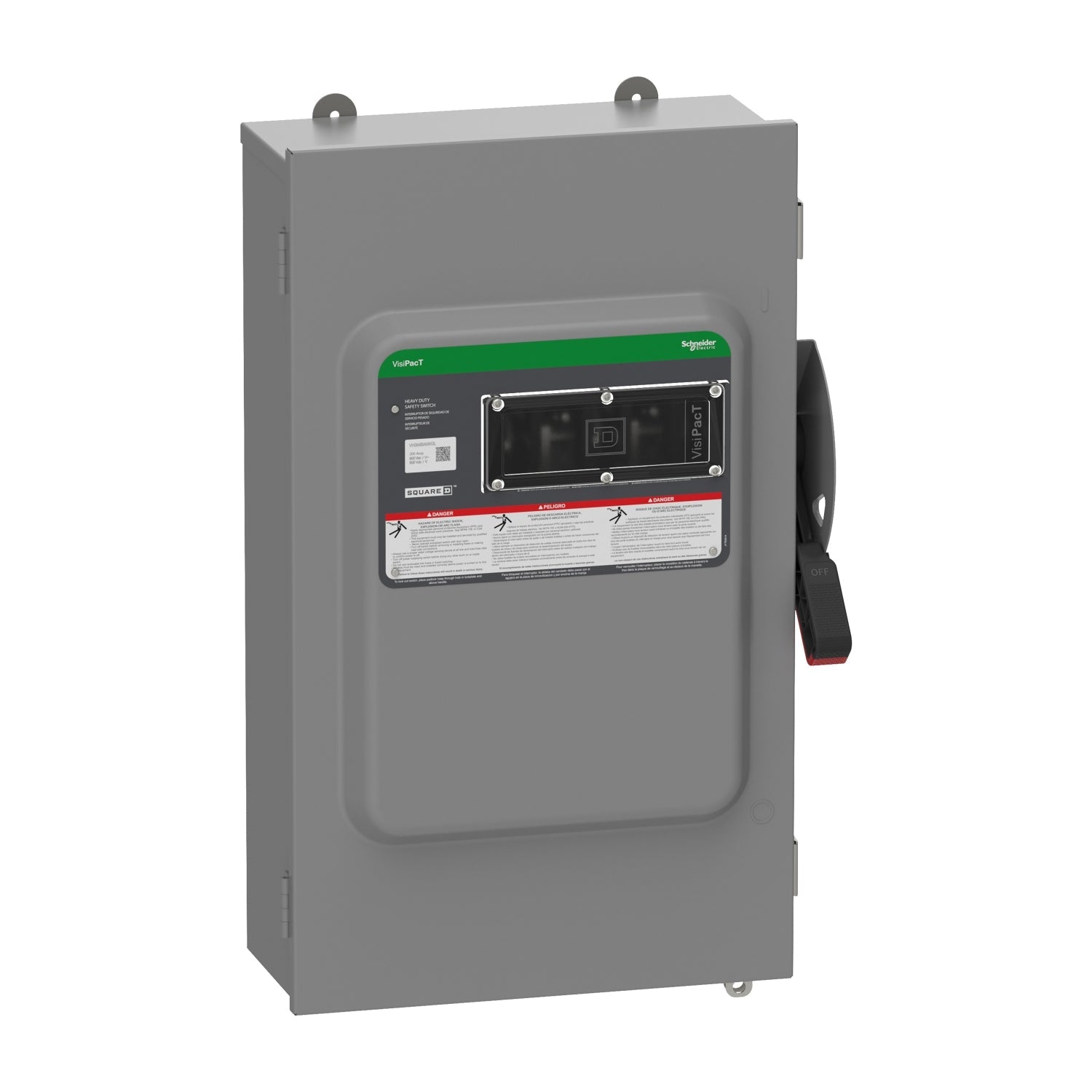

Square D VH364BAWKGL - Fusible Safety Disconnect Switch 200A 600V (NEMA 12 Enclosure)

Square D VH364BAWKGL is a fusible safety disconnect switch designed for reliable circuit isolation and protection in industrial applications. This heavy-duty switch features a 600V voltage rating and 200A current capacity, providing robust electrical protection for three-phase systems. Constructed with a NEMA 12 enclosure measuring 734.06 mm height × 112.78 mm width × 78.49 mm depth and weighing 55.12 lb, it offers durable protection against dust and dripping liquids. The switch carries UL certification (file E3005) and complies with industry safety standards for disconnect operation. Typical applications include industrial control panels, motor control centers, and power distribution systems requiring secure load break capability.

Key Features & Specifications

• Type: Fusible safety disconnect switch with visible blade design for circuit isolation
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 734.06 mm H × 112.78 mm W × 78.49 mm D (28.9 in × 4.44 in × 3.09 in)
• Standards: UL listed file E3005, NEMA 12 enclosure rating
• Applications: Industrial control panels, motor control centers, power distribution systems
• Switch Type: Safety disconnect
• Configuration: Single unit
• Poles: 3
• Phase: 3-phase
• Wire: 3-wire configuration
• Nema Rating: NEMA 12
• Certification: UL listed
• Enclosure: NEMA 12 rated for dust and drip protection
• Mounting: Panel mounted
• Country of Origin: United States
• Weight: 55.12 lb

Product Identification

• UPC: 060648589432
• GTIN: 03606485894324
