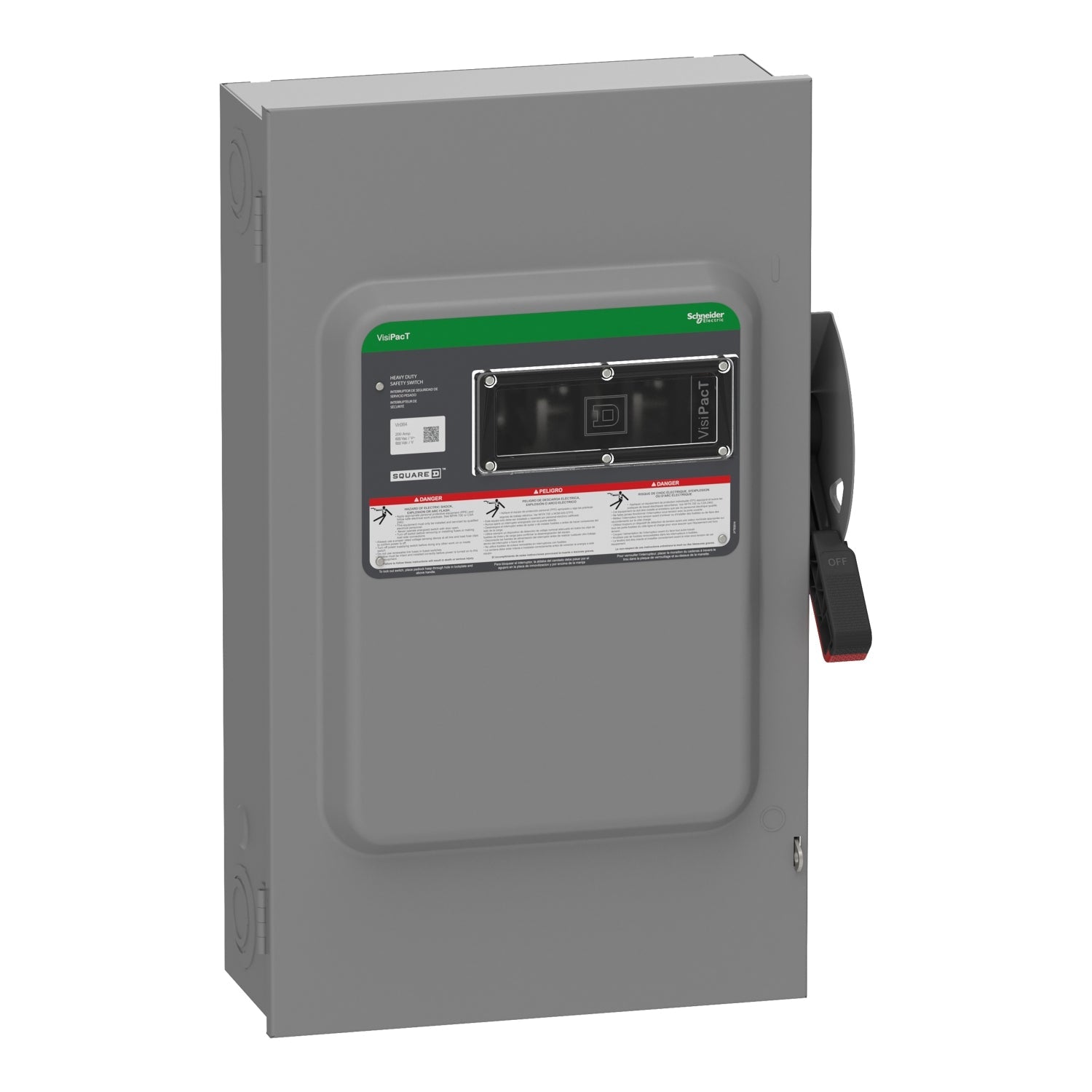

Square D VH364 - Fusible Disconnect Switch 200A 600V AC/DC (3-Pole NEMA 1)

Square D VH364 is a fusible safety disconnect switch designed for reliable circuit isolation and protection in industrial power distribution systems. It features a 600V AC/DC voltage rating with 200A current capacity and three-pole single configuration for three-phase applications. The unit measures 16.5" x 29" with a robust NEMA 1 enclosure weighing 54.45 lb, constructed to accommodate copper or aluminum conductors from AWG 6 to 250 kcmil. Certified to UL standard E2875 and EU RoHS compliance, this disconnect switch accepts H, K, R, and J class fuses for comprehensive overload protection in industrial facilities, manufacturing plants, and commercial electrical systems.

Key Features & Specifications

• Type: Fusible safety disconnect switch, NEMA 1 enclosure
• Voltage Rating: 600V AC/DC
• Current Rating: 200A
• Dimensions: 16.5" x 29"
• Standards: UL listed file E2875, EU RoHS compliant
• Applications: Industrial power distribution, manufacturing facilities, commercial electrical systems
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• Wire: 3
• Wire Size: AWG 6 to 250 kcmil, Copper/Aluminum
• Fuse Class: H, K, R, J
• Nema Rating: NEMA 1
• Weight: 54.45 lb
• Country of Origin: United States
• Family: VH

Product Identification

• UPC: 060648589434
• GTIN: 03606485894348
