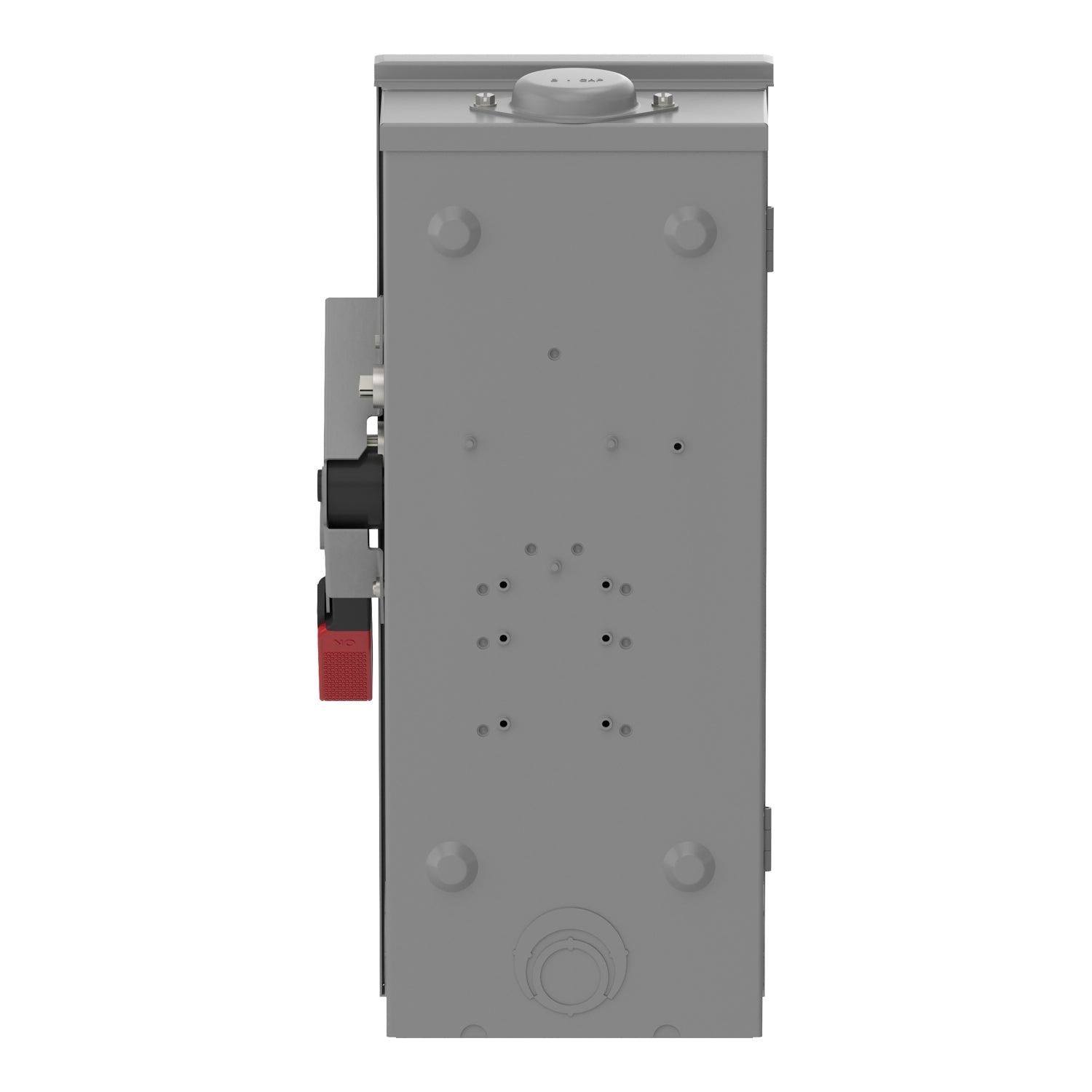

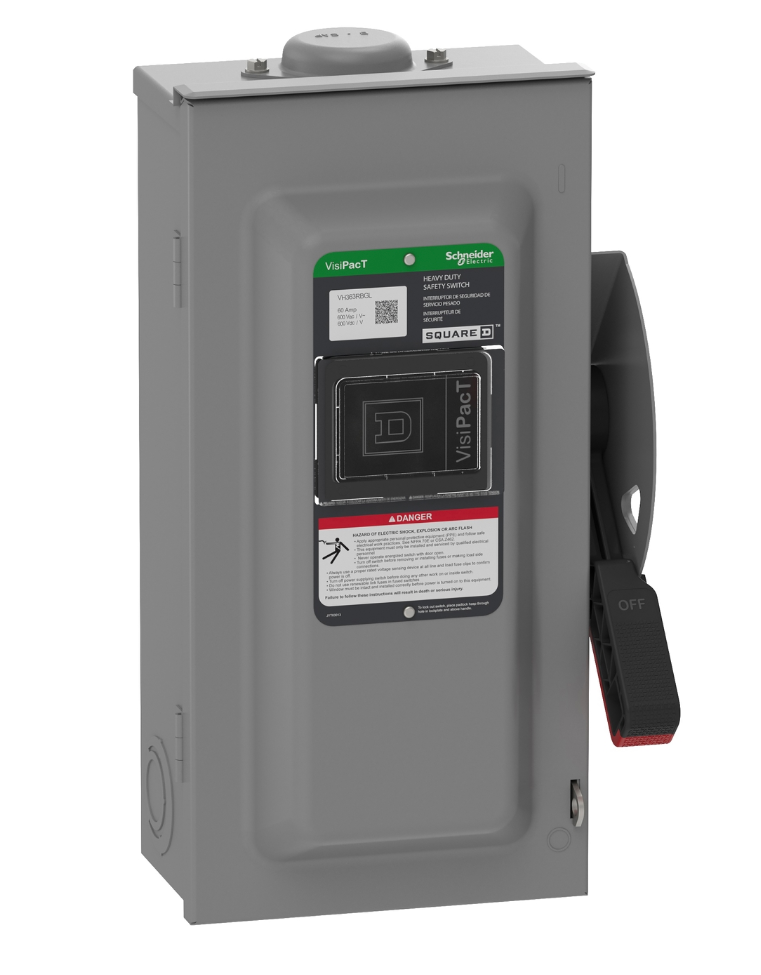

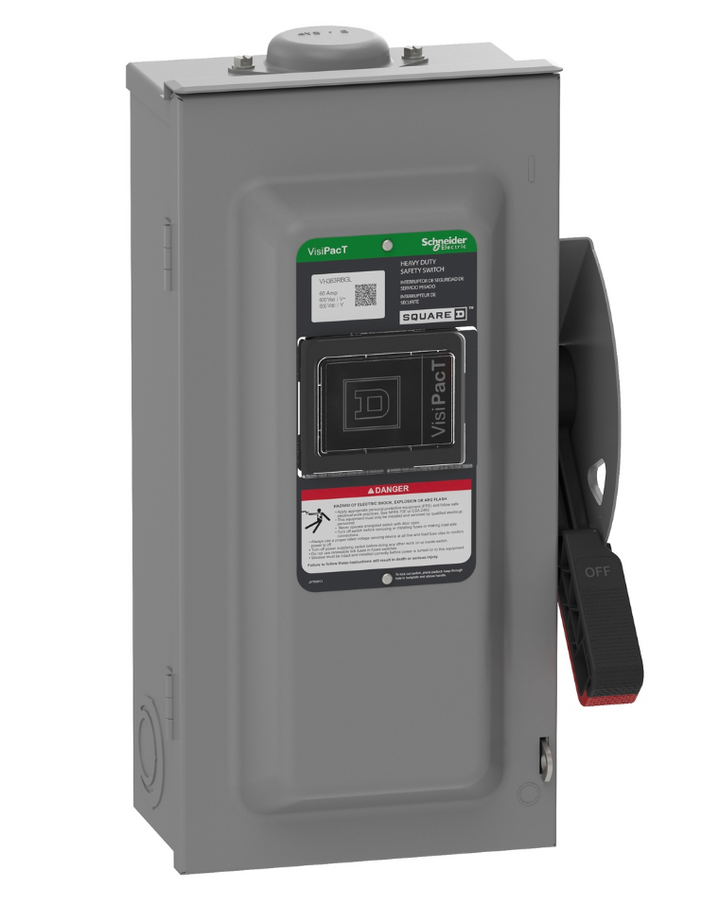

Square D VH363RBGL - Fusible Disconnect Switch 600V/100A (3-Pole NEMA 3R)

Square D VH363RBGL is a fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit protection. This UL-listed (file E3001) switch features a 600V voltage rating and 100A current capacity in a compact 3-pole configuration with NEMA 3R-rated enclosure. The rugged construction measures 526.54 mm (20.73 in) height x 112.78 mm (4.44 in) width x 78.49 mm (3.09 in) depth, weighing 19.84 lb, and accepts H/K/R/J class fuses for three-phase applications.

Key Features & Specifications

• Type: Fusible safety disconnect switch with single configuration
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 526.54 mm H x 112.78 mm W x 78.49 mm D (20.73 x 4.44 x 3.09 in)
• Standards: UL listed (file E3001), NEMA 3R enclosure
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: H, K, R, J
• Wire: 3
• Weight: 19.84 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589421
• GTIN: 03606485894218
