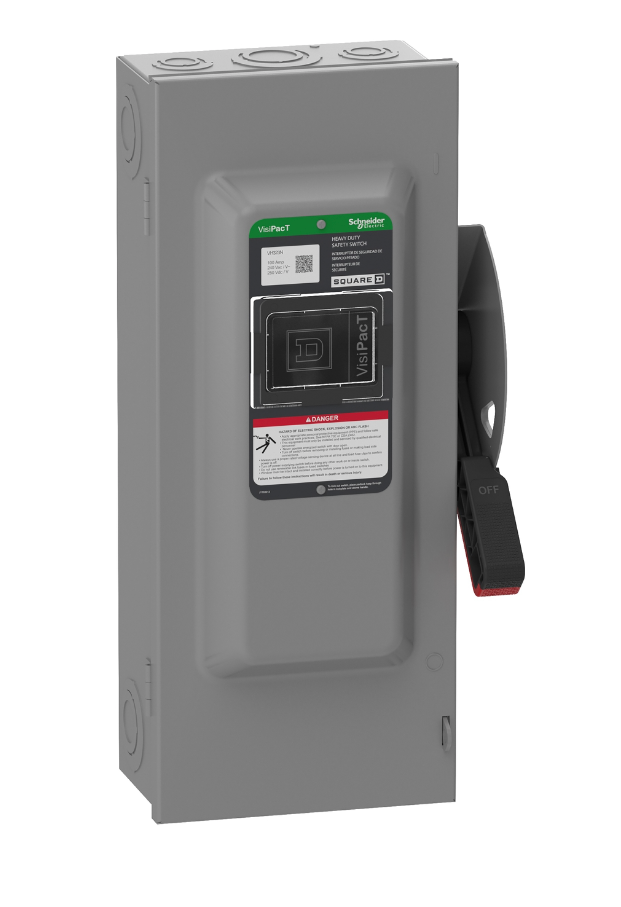

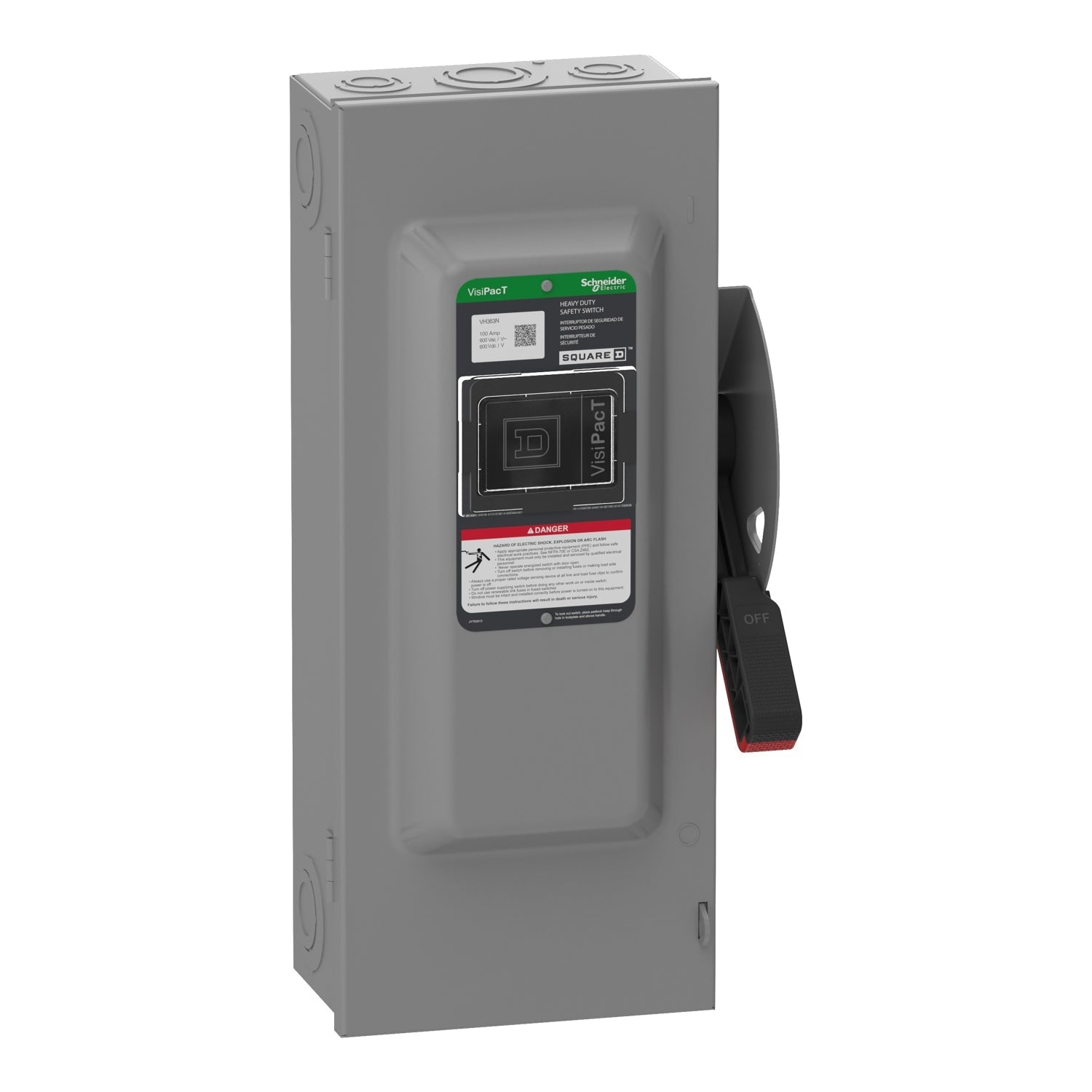

Square D VH363N - Fusible Disconnect Switch 600V AC/DC 100A (3-Pole NEMA 1)

Square D VH363N is a fusible safety disconnect switch designed for reliable circuit isolation and protection in industrial applications. This heavy-duty switch operates at 600V AC/DC with a 100A current rating, providing robust electrical protection in demanding environments. The unit features a compact 9" x 21¾" NEMA 1 enclosure weighing 9 lb, constructed for durable three-phase operation with three poles in single configuration. It complies with EU RoHS standards and carries UL listing (file E2875), ensuring adherence to rigorous safety requirements. Typical applications include industrial control panels, motor control centers, and power distribution systems where secure isolation is critical for maintenance and safety procedures.

Key Features & Specifications

• Type: Fusible safety disconnect switch with visible blade mechanism
• Voltage Rating: 600V AC/DC
• Current Rating: 100A
• Dimensions: 9 in x 21 3/4 in
• Standards: EU RoHS, UL listed file E2875
• Applications: Industrial control panels, motor control centers, power distribution systems
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• Wire Size: AWG 12 to AWG 1/0, AWG 14 to AWG 1/0, Aluminum, Copper
• Nema Rating: NEMA 1
• Weight: 9 lb
• Country of Origin: United States
• Family: VH

Product Identification

• UPC: 060648589409
• GTIN: 03606485894096
