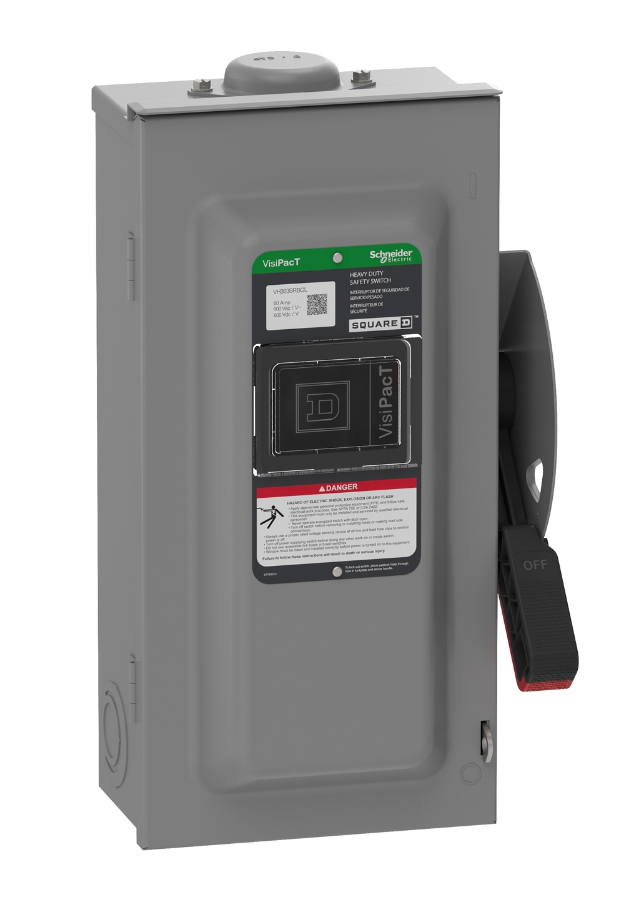

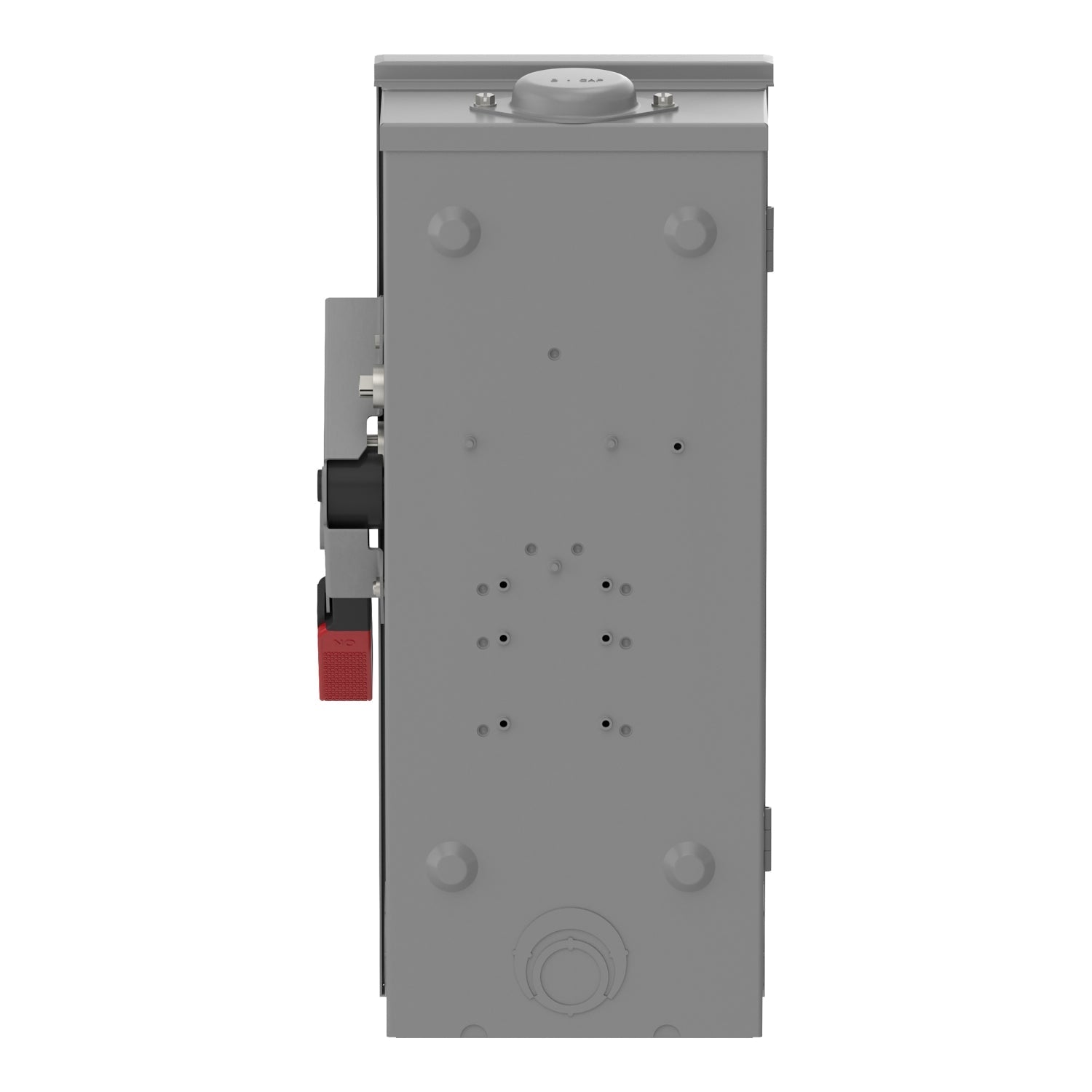

Square D VH363BRBGL - Fusible Disconnect Switch 600V/100A (3-Pole NEMA 3R)

Square D VH363BRBGL is a fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit protection. The unit features a 600V voltage rating and 100A current capacity in a compact 3-phase configuration with Class J fuse compatibility. Its NEMA 3R-rated enclosure measures 526.54mm (H) x 143.26mm (W) x 136.65mm (D) and weighs 19.84 lb, constructed with durable materials for harsh environments. UL-listed per file E2992, this disconnect meets stringent safety standards for commercial and industrial applications including motor control centers and power distribution panels.

Key Features & Specifications

• Type: Fusible safety disconnect switch with single configuration
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 20.73 x 5.64 x 5.38 in (526.54 x 143.26 x 136.65 mm)
• Standards: UL listed (File E2992), NEMA 3R
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: J
• Wire: 3
• Weight: 19.84 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589415
• GTIN: 03606485894157
