Square D VH363BGL - Fusible Disconnect Switch 600V 100A (3-Pole NEMA 1)

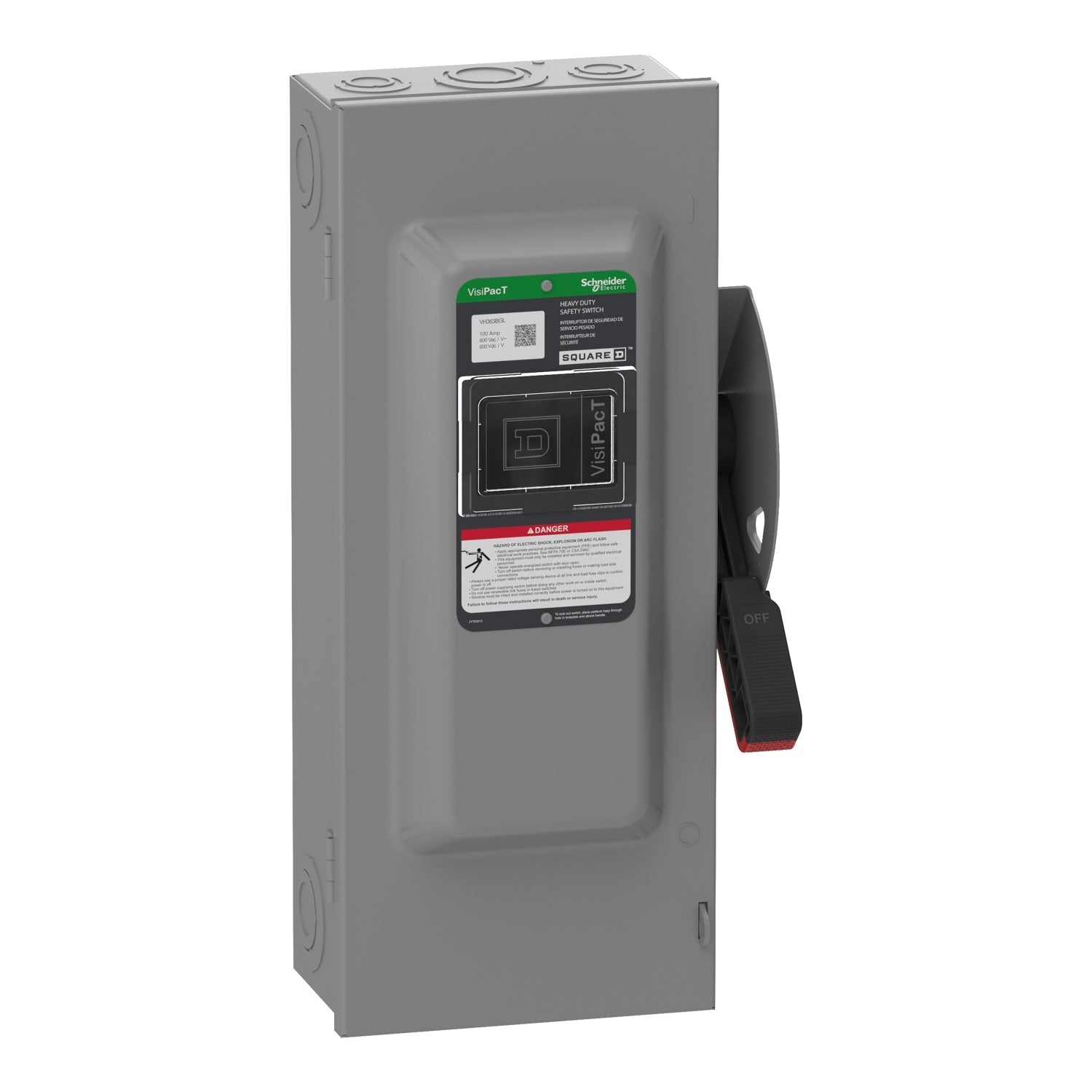

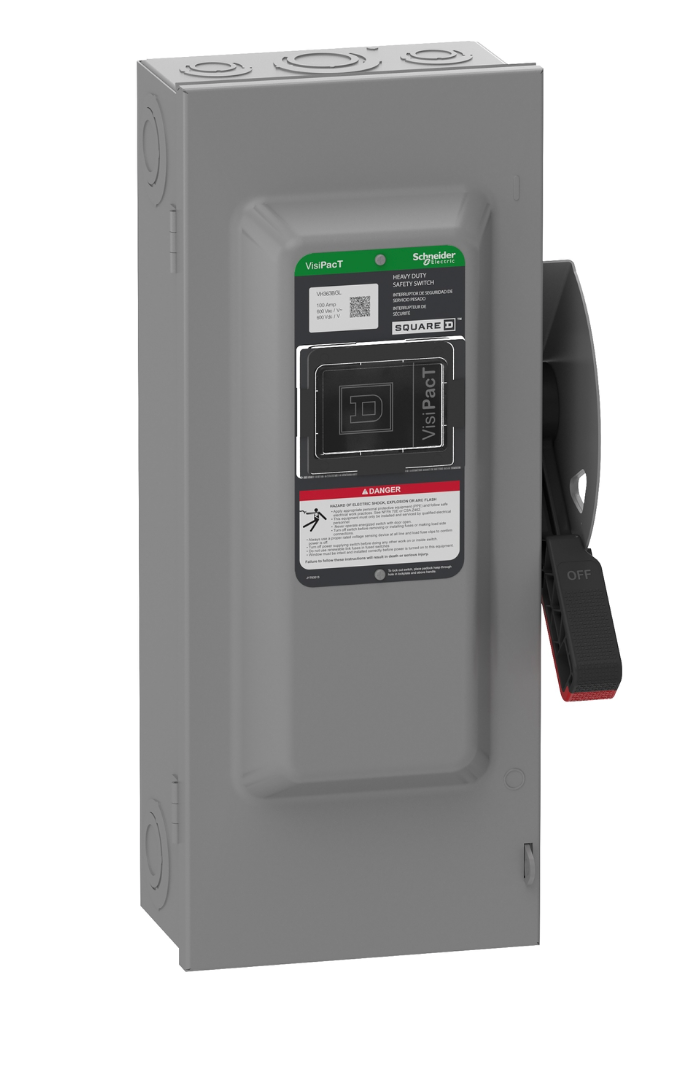

Square D VH363BGL is a fusible safety disconnect switch designed for industrial circuit protection and isolation. This 3-pole switch operates at 600V AC with a 100A current rating, providing reliable power interruption capabilities. The unit features a compact NEMA 1 enclosure measuring 561.42 mm high × 112.78 mm wide × 78.49 mm deep and weighs 19.84 lb, constructed for durable industrial service. It carries UL certification (file E2991) and complies with industry standards for safety disconnects. Typical applications include motor control centers, industrial machinery, and electrical distribution systems requiring Class J fuse protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch, 3-pole configuration
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 561.42 mm H × 112.78 mm W × 78.49 mm D (22.103" × 4.44" × 3.09")
• Standards: UL Listed (File E2991), NEMA 1 rated
• Applications: Industrial machinery, motor control centers, electrical distribution systems
• Switch Type: Fusible disconnect
• Configuration: Single unit
• Poles: 3
• Phase: 3-phase
• Fuse Class: J
• Wire: 3-wire configuration
• Weight: 19.84 lb
• Country of Origin: United States
• Family: VH series

Product Identification

• UPC: 060648589414
• GTIN: 03606485894140
